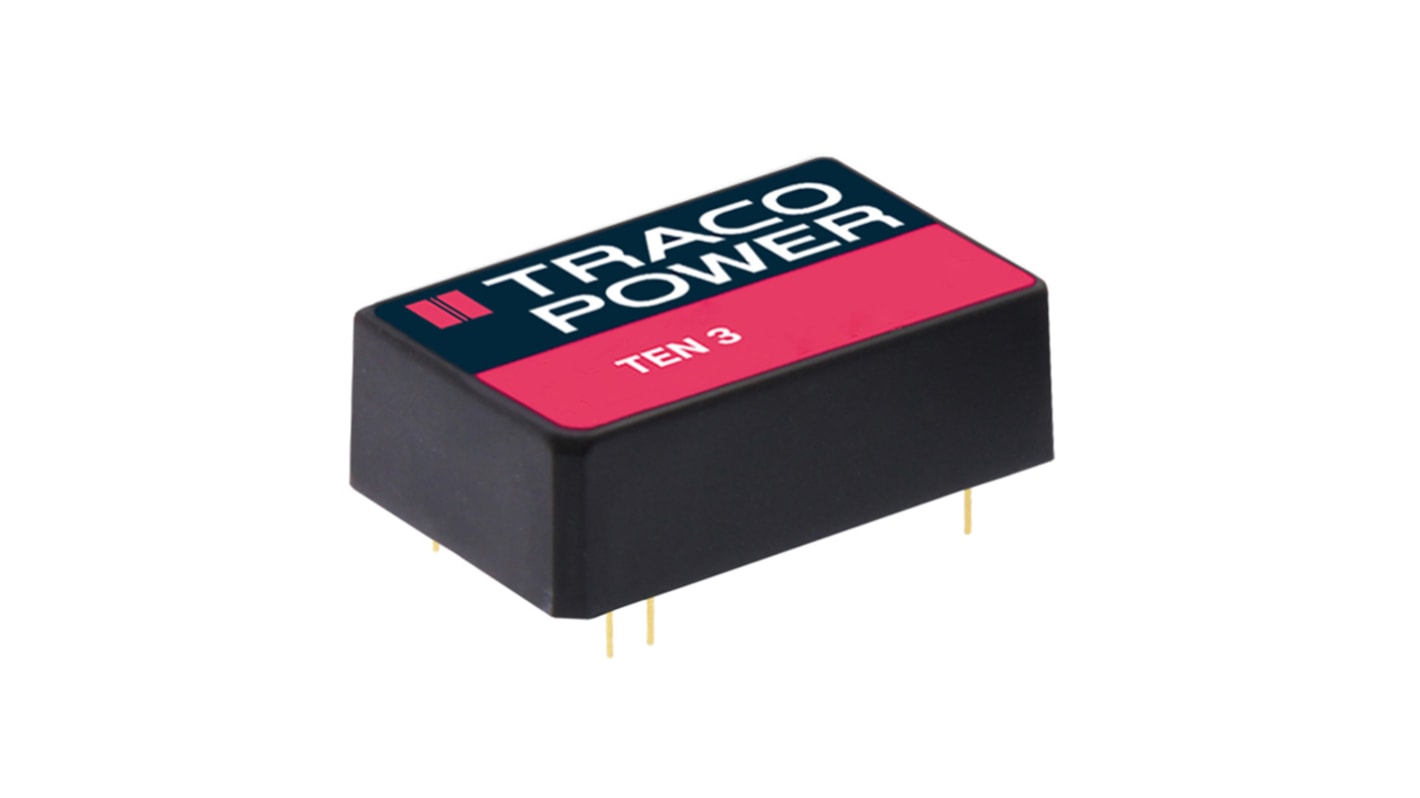

TRACOPOWER TEN 3 DC-DC Converter, ±15V dc/ ±100mA Output, 4.5 → 9 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 166-5404
- Mfr. Part No.:
- TEN 3-0523
- Brand:
- TRACOPOWER
Save 13% when you buy 50 units
Subtotal (1 tube of 10 units)*
£165.56
(exc. VAT)
£198.67
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £165.56 | £16.556 |
| 5 - 9 | £160.60 | £16.06 |
| 10 - 24 | £155.63 | £15.563 |
| 25 - 49 | £149.01 | £14.901 |
| 50 + | £142.39 | £14.239 |
*price indicative
- RS Stock No.:
- 166-5404
- Mfr. Part No.:
- TEN 3-0523
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±15V dc | |
| Input Voltage Range | 4.5 → 9 V dc | |
| Power Rating | 3W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | ±100mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | DIP 24 | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 10.2mm | |
| Length | 32mm | |
| Series | TEN 3 | |
| Load Regulation | ±2% | |
| Minimum Temperature | -40°C | |
| Efficiency | 75% | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±15V dc | ||
Input Voltage Range 4.5 → 9 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 5 V dc | ||
Output Current ±100mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP 24 | ||
Isolation Voltage 1.5kV dc | ||
Depth 10.2mm | ||
Length 32mm | ||
Series TEN 3 | ||
Load Regulation ±2% | ||
Minimum Temperature -40°C | ||
Efficiency 75% | ||
Maximum Temperature +85°C | ||
