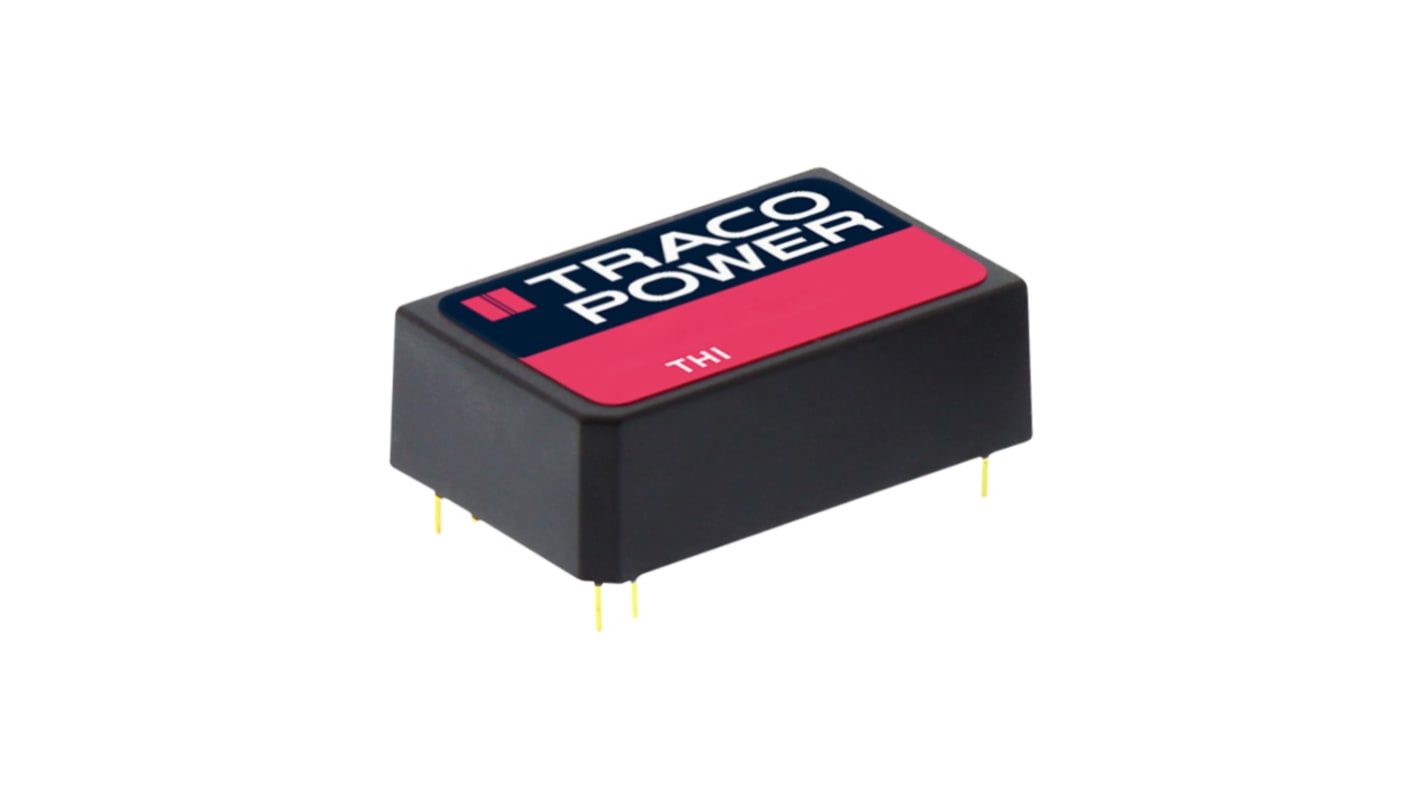

TRACOPOWER THI DC-DC Converter, ±15V dc/ ±65mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +75°C Max Temp
- RS Stock No.:
- 166-5291
- Mfr. Part No.:
- THI 2422
- Brand:
- TRACOPOWER
Subtotal (1 tube of 10 units)*
£225.53
(exc. VAT)
£270.64
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 + | £225.53 | £22.553 |
*price indicative
- RS Stock No.:
- 166-5291
- Mfr. Part No.:
- THI 2422
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | ±15V dc | |
Input Voltage Range | 21.6 → 26.4 V dc | |
Power Rating | 2W | |
Input Voltage Nominal | 24 V dc | |
Output Current | ±65mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 2 | |
Package | DIP 24, PDIP | |
Isolation Voltage | 2.5kV dc | |
Length | 32mm | |
Depth | 10mm | |
Series | THI | |
Load Regulation | ±1% | |
Minimum Temperature | -40°C | |
Maximum Temperature | +75°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±15V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±65mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP 24, PDIP | ||
Isolation Voltage 2.5kV dc | ||
Length 32mm | ||
Depth 10mm | ||
Series THI | ||
Load Regulation ±1% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +75°C | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, 24-Pin DIP Package, Dual Output - THI 2 Series - THI 2422
Want your power supply and device to work nicely together? Get them on the same page with this DC-DC converter from Traco Power. It steps down 24V DC loads to a 15V DC supply, bridging the power gap between your input and components. Thanks to its regulated output, the unit continues delivering stable voltage when faced with input changes, so you can be sure of a reliable power supply. Simple through-hole mounting means installation on a circuit board takes no time. And as the converter's housed in an insulating plastic case, it's safe to handle without the risk of shocks.
Features & Benefits
• Maximum ripple voltage of 50mV cuts down on disruption from electrical noise
• Compact 24-pin DIP package slots neatly into a busy PCB setup
• Integrated short-circuit protection restarts the device after a fault, so cuts back downtime
• Comes with two outputs to power a pair of devices at once for efficient conversion
• Compact 24-pin DIP package slots neatly into a busy PCB setup
• Integrated short-circuit protection restarts the device after a fault, so cuts back downtime
• Comes with two outputs to power a pair of devices at once for efficient conversion
Applications
• Automotive industry
• Control devices
• Data centres
• Control devices
• Data centres
Can I use this converter with a mains supply?
Yes, this device comes with supplementary insulation that handles operational loads up to 250V AC, minimising the risk of damage from mains voltages.
