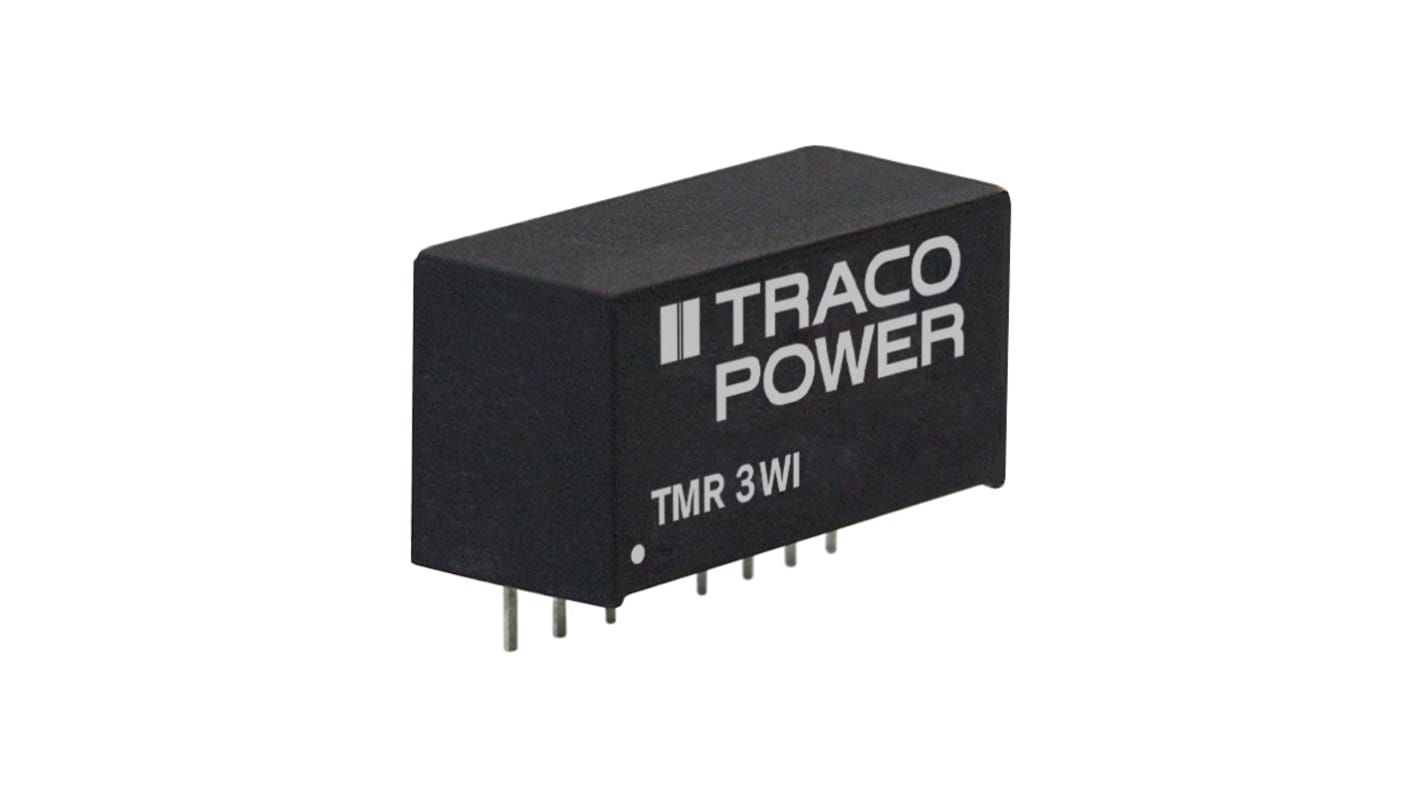

TRACOPOWER TMR 3WI DC-DC Converter, 12V dc/ 250mA Output, 18 → 75 V dc Input, 3W, Through Hole, +85°C Max Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£200.03

(exc. VAT)

£240.04

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 - 4£200.03£20.003
5 - 9£194.03£19.403
10 - 24£188.03£18.803
25 - 49£180.02£18.002
50 +£172.02£17.202

*price indicative

RS Stock No.:
166-5250
Mfr. Part No.:
TMR 3-4812WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

12V dc

Input Voltage Range

18 → 75 V dc

Power Rating

3W

Input Voltage Nominal

48 V dc

Output Current

250mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

1

Package

SIP 8

Isolation Voltage

1.5kV dc

Depth

11.1mm

Width

9.2mm

Length

21.8mm

Series

TMR 3WI

Load Regulation

±1%

Efficiency

79%

Minimum Temperature

-40°C

Maximum Temperature

+85°C

COO (Country of Origin):
TW

Traco Power DC-DC Converter, SIP8 Format, 81% Conversion Efficiency - TMR 3WI Series - TMR 3-4812WI


Adapt your power source to suit your kit with this Traco Power DC-DC converter. It takes an input voltage of 18 to 75V DC and down-steps it to a steady 12V DC output. The unit has an 81% conversion efficiency, which minimises the need for an additional cooling mechanism as its heat output is low. Slotting the unit onto a PCB is no problem, thanks to its compact SIP8 footprint. Continuous short-circuit protection is on hand to ensure safe operation and prevent damage to downstream equipment.

Features & Benefits


• Remote ON/OFF function provides hassle-free appliance control
• Maximum ripple voltage of just 30mVp-p minimises disruption from power line noise
• Through-hole mounting for quick and easy fixing to a board
• Plastic and silicone insulation provide protection against electrical faults
• 820μF capacitive load ensures a smoother output voltage and reduced voltage ripple

Applications


• Manufacturing industry
• Charging stations
• Portable devices

Can I use this product in cold environments?


Yes, this converter performs reliably in temperatures between -40°C and +85°C, so it's a safe bet for challenging workplaces.
