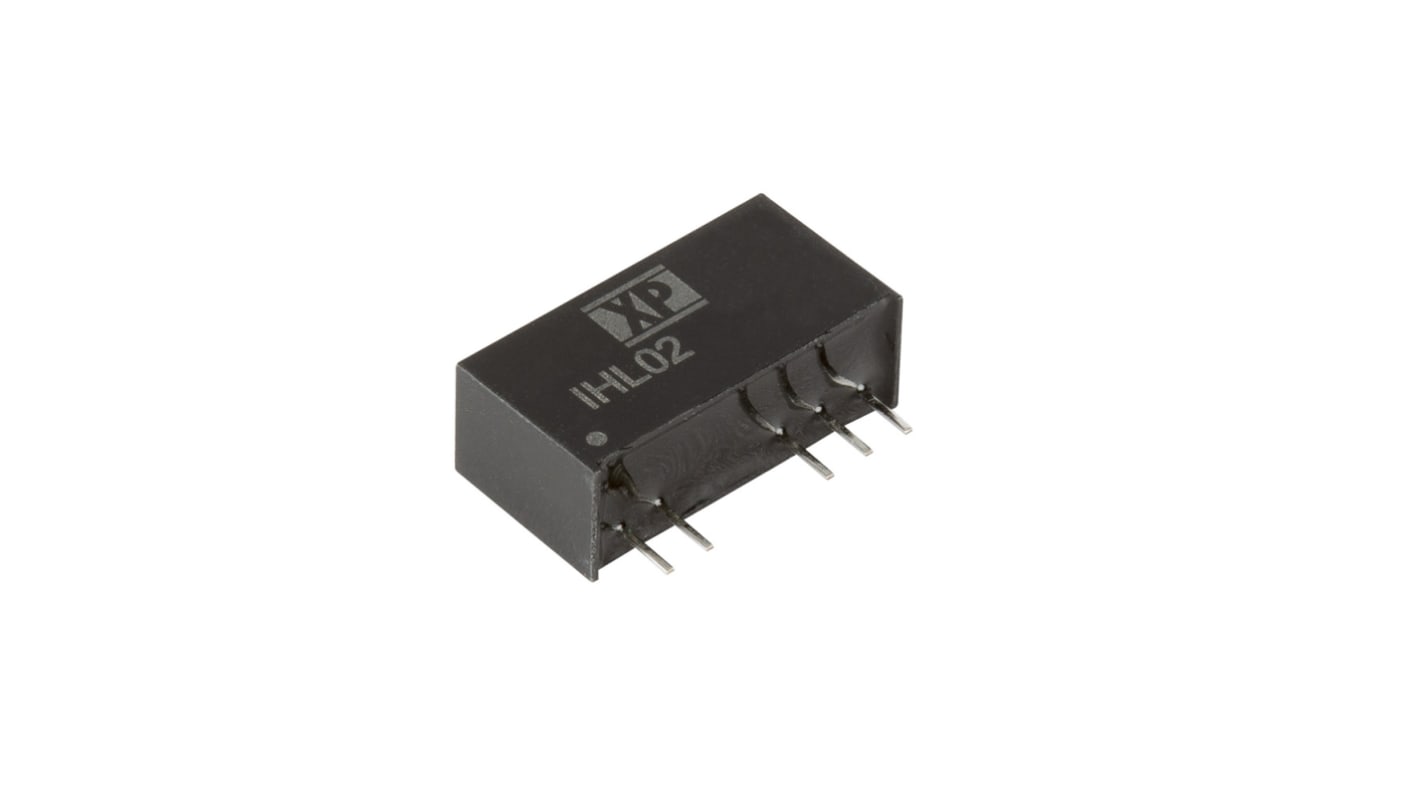

XP Power IHL02 DC-DC Converter, -9V dc/ -111mA Output, 13.5 → 16.5 V dc Input, 2W, Through Hole, +95°C Max Temp

RS Stock No.:: 165-7876
Mfr. Part No.:: IHL0215D1509
Brand:: XP Power

XP Power IHL02 DC-DC Converter, -9V dc/ -111mA Output, 13.5 → 16.5 V dc Input, 2W, Through Hole, +95°C Max Temp

Bulk discount available

Price 1 Tube of 20**

£130.49

(exc. VAT)

£156.59

(inc. VAT)

Available to back order for despatch 15/04/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Tube(s)	Per Tube	Per unit**
1 - 4	£130.49	£6.524
5 - 9	£126.58	£6.329
10 - 24	£122.66	£6.133
25 - 49	£118.75	£5.938
50 +	£114.84	£5.742

**price indicative

RS Stock No.:: 165-7876
Mfr. Part No.:: IHL0215D1509
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	-9 V dc, 15V dc
Input Voltage Range	13.5 → 16.5 V dc
Power Rating	2W
Input Voltage Nominal	15 V dc
Output Current	-111 mA, 66.7mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	SIP 7
Isolation Voltage	5.2kV dc
Depth	10mm
Width	7.2mm
Length	19.5mm
Series	IHL02
Load Regulation	0.1
Minimum Temperature	-40°C
Standards Met	EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
Maximum Temperature	+95°C

XP Power IHL02 DC-DC Converter, -9V dc/ -111mA Output, 13.5 → 16.5 V dc Input, 2W, Through Hole, +95°C Max Temp

FREE delivery for orders over £50.00

XP Power - IHL Series of Isolated DC-DC Converters
