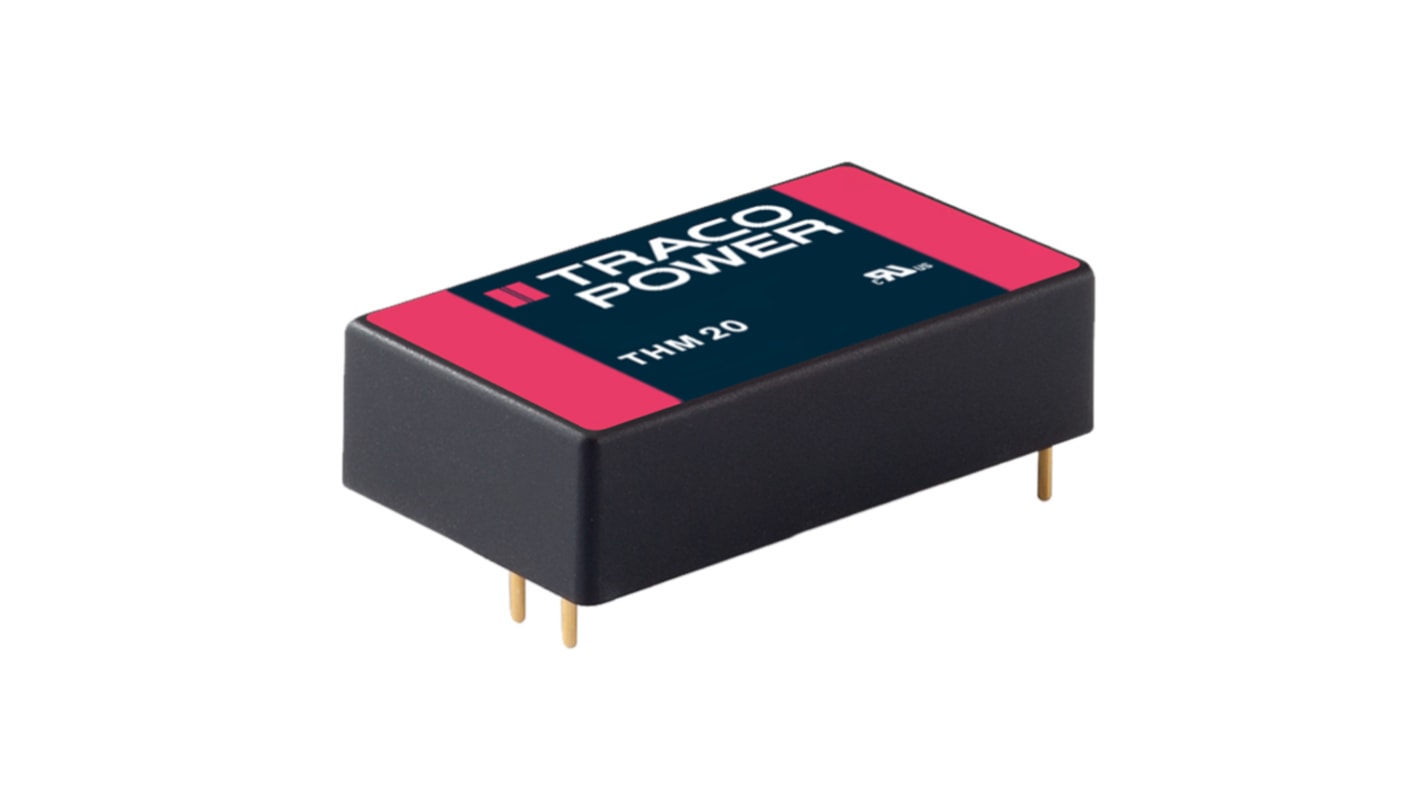

TRACOPOWER THM 20 DC-DC Converter, 5V dc/ 4A Output, 36 → 75 V dc Input, 20W, Through Hole, +80°C Max Temp -40°C
- RS Stock No.:
- 165-1184
- Mfr. Part No.:
- THM 20-4811
- Brand:
- TRACOPOWER
Save 13% when you buy 50 units
Subtotal (1 tube of 10 units)*
£574.18
(exc. VAT)
£689.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 18 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £574.18 | £57.418 |
| 5 - 9 | £556.95 | £55.695 |
| 10 - 24 | £539.73 | £53.973 |
| 25 - 49 | £516.77 | £51.677 |
| 50 + | £493.80 | £49.38 |
*price indicative
- RS Stock No.:
- 165-1184
- Mfr. Part No.:
- THM 20-4811
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 36 → 75 V dc | |
| Power Rating | 20W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 4A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | ±10% | |
| Package | 1.6 x 1 in | |
| Isolation Voltage | 5kV ac | |
| Length | 40.6mm | |
| Depth | 10.2mm | |
| Width | 25.4mm | |
| Series | THM 20 | |
| Load Regulation | 0.002 | |
| Medical Approved | Yes | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +80°C | |
| Standards Met | ANSI/AAMI ES 60601-1, CB Scheme IEC 60601-1, cULus Recognised, EMC, EN 55011, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, ES60601-1, IEC 60601-1-2, IEC/EN 60601-1, MIL-STD-810F | |
| Efficiency | 89.5% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 36 → 75 V dc | ||
Power Rating 20W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 4A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range ±10% | ||
Package 1.6 x 1 in | ||
Isolation Voltage 5kV ac | ||
Length 40.6mm | ||
Depth 10.2mm | ||
Width 25.4mm | ||
Series THM 20 | ||
Load Regulation 0.002 | ||
Medical Approved Yes | ||
Minimum Temperature -40°C | ||
Maximum Temperature +80°C | ||
Standards Met ANSI/AAMI ES 60601-1, CB Scheme IEC 60601-1, cULus Recognised, EMC, EN 55011, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, ES60601-1, IEC 60601-1-2, IEC/EN 60601-1, MIL-STD-810F | ||
Efficiency 89.5% | ||
