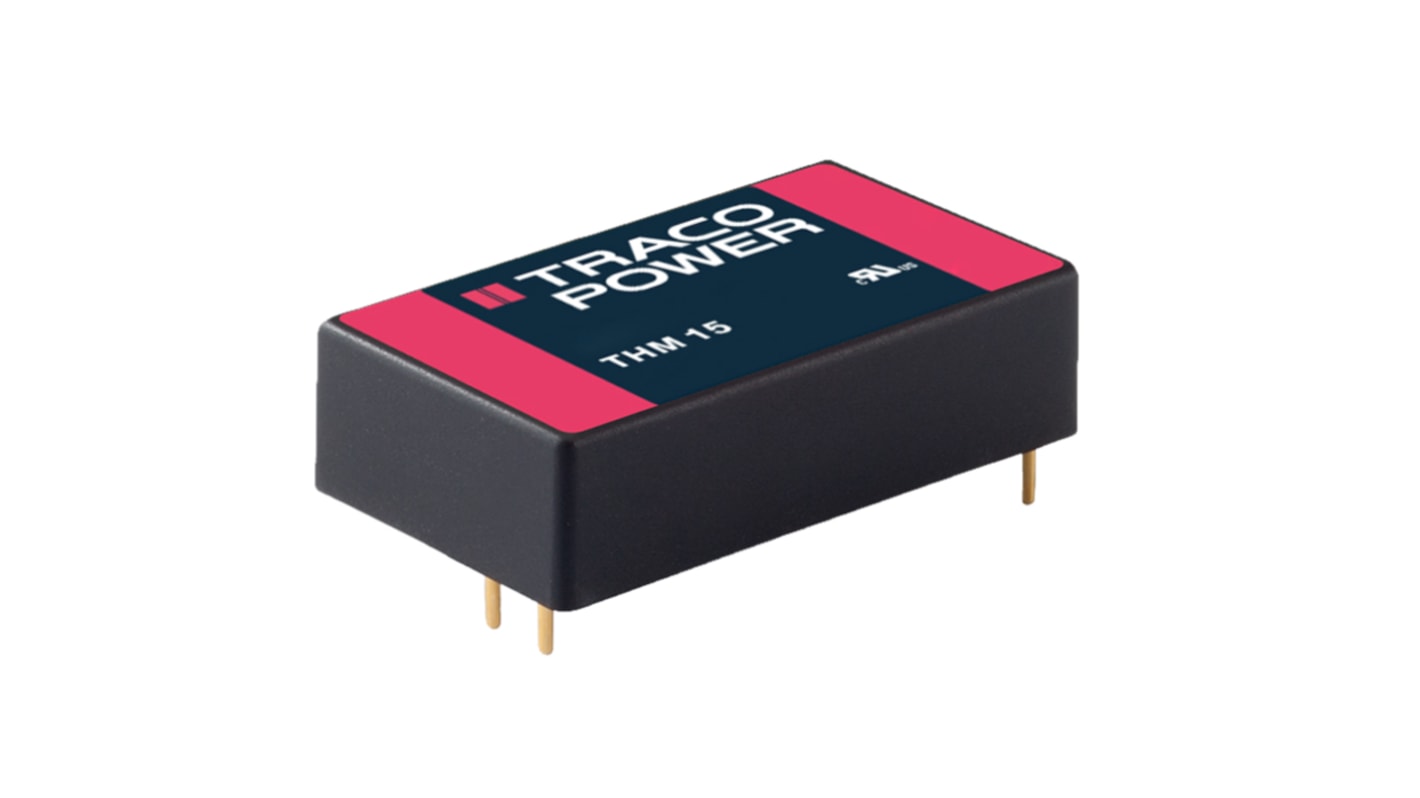

TRACOPOWER THM 15 DC-DC Converter, 12V dc/ 1.25A Output, 18 → 36 V dc Input, 15W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 165-1153
- Mfr. Part No.:
- THM 15-2412
- Brand:
- TRACOPOWER
Subtotal (1 tube of 10 units)*
£433.00
(exc. VAT)
£519.60
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 01 January 2026
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 + | £433.00 | £43.30 |
*price indicative
- RS Stock No.:
- 165-1153
- Mfr. Part No.:
- THM 15-2412
- Brand:
- TRACOPOWER
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 12V dc | |
Input Voltage Range | 18 → 36 V dc | |
Power Rating | 15W | |
Input Voltage Nominal | 24 V dc | |
Output Current | 1.25A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Output Voltage Adjustment Range | ±10% | |
Package | 1.6 x 1 in | |
Isolation Voltage | 5kV ac | |
Width | 25.4mm | |
Depth | 10.2mm | |
Length | 40.6mm | |
Series | THM 15 | |
Load Regulation | 0.002 | |
Minimum Temperature | -40°C | |
Maximum Temperature | +85°C | |
Efficiency | 90% | |
Standards Met | ANSI/AAMI ES 60601-1, CB Scheme IEC 60601-1, cULus Recognised, EMC, EN 55011, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, ES60601-1, IEC 60601-1-2, IEC/EN 60601-1, MIL-STD-810F | |
Medical Approved | Yes | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 15W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 1.25A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range ±10% | ||
Package 1.6 x 1 in | ||
Isolation Voltage 5kV ac | ||
Width 25.4mm | ||
Depth 10.2mm | ||
Length 40.6mm | ||
Series THM 15 | ||
Load Regulation 0.002 | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
Efficiency 90% | ||
Standards Met ANSI/AAMI ES 60601-1, CB Scheme IEC 60601-1, cULus Recognised, EMC, EN 55011, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, ES60601-1, IEC 60601-1-2, IEC/EN 60601-1, MIL-STD-810F | ||
Medical Approved Yes | ||
