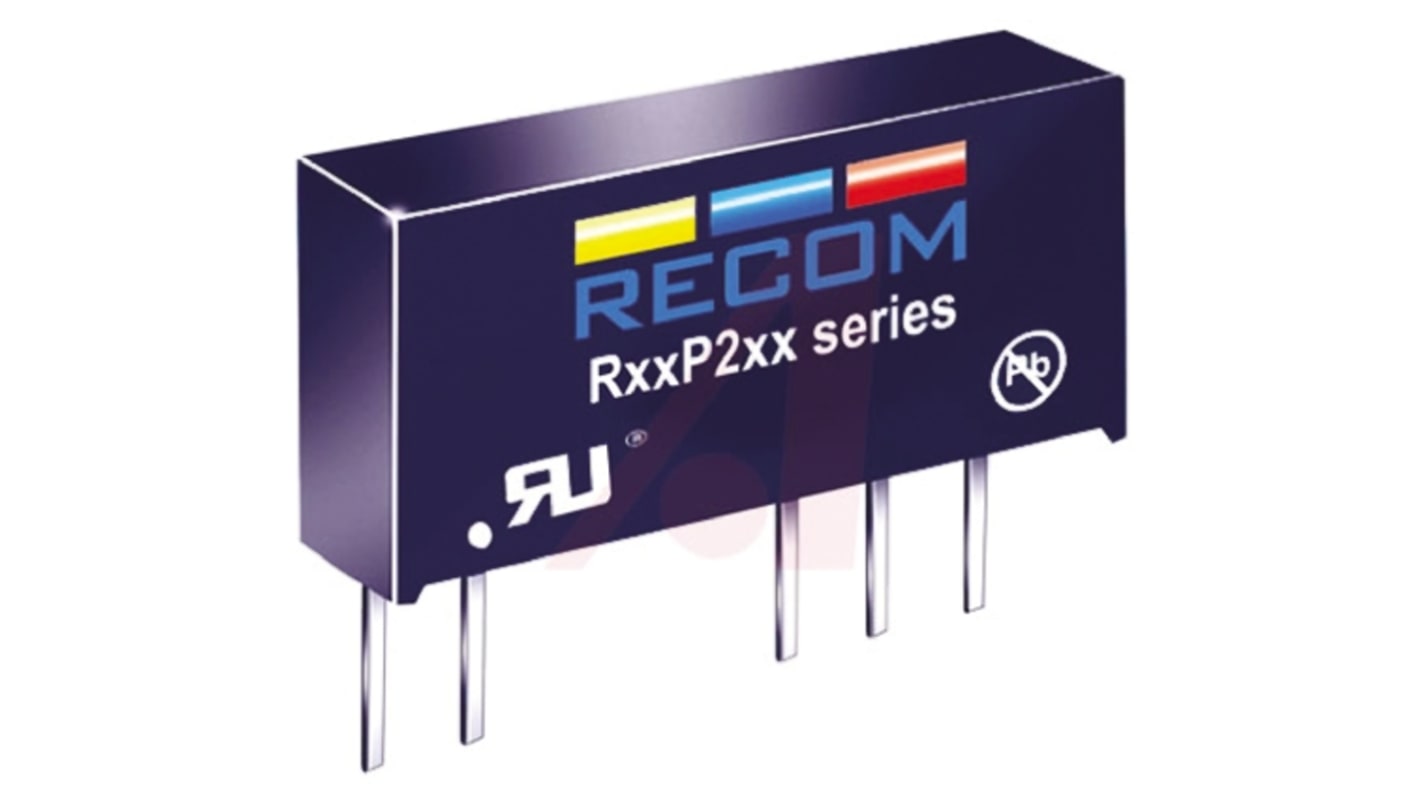

Recom R12P DC-DC Converter, -9V dc/ -111mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +90°C Max Temp
- RS Stock No.:
- 162-2710
- Mfr. Part No.:
- R12P21509D
- Brand:
- Recom
Available to back order for despatch when stock is available
Price 1 Tube of 25
£316.87
(exc. VAT)
£380.24
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £316.87 | £12.675 |
5 - 9 | £307.37 | £12.295 |
10 - 24 | £297.86 | £11.914 |
25 - 49 | £288.35 | £11.534 |
50 + | £278.85 | £11.154 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 162-2710
- Mfr. Part No.:
- R12P21509D
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
![](https://media.rs-online.com/t_line/L6728940-01.gif)
RECOM DC-DC Converter, 12V DC Input Voltage, +15/-9V DC Output Voltage - R12 Series - R12P21509D
Want a super-smooth power supply for your system? Turn to this DC-DC converter from RECOM. It's designed to turn an input voltage of 12V DC into a steady output voltage of 15 or -9V DC, making it a versatile piece of kit. An efficiency rating between 70 and 82% means you can count on it to waste minimal energy and run cool. Thanks to a broad operating temperature range between -40°C and +90°C, it's just the thing for use in harsh industrial conditions. The unit's pins make through-hole mounting a cinch, giving you a secure attachment to your PCB.
• Compact dimensions of 19.5 (L) x 9.8 (W) x 12.5mm (H) to maximise packing space on your board
• Isolation voltage of 6.4kV DC for protection against powerful surges
• Light weight of just 4.3g to put minimal strain on your PCB
• Isolation voltage of 6.4kV DC for protection against powerful surges
• Light weight of just 4.3g to put minimal strain on your PCB
Applications
• Automotive manufacturing
• Medical equipment
• Consumer electronics
• Telecommunications
• Medical equipment
• Consumer electronics
• Telecommunications
How long will this DC-DC converter last?
It has a mean time between failures of 2,434,000 hours at +25°C and 334,000 hours at +85°C, so it's built to last.
Specifications
Attribute | Value |
---|---|
Output Voltage | -9 V dc, 15V dc |
Input Voltage Range | 10.8 → 13.2 V dc |
Power Rating | 2W |
Input Voltage Nominal | 12 V dc |
Output Current | -111 mA, 67mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 2 |
Package | SIP 7 |
Isolation Voltage | 6.4kV dc |
Depth | 12.5mm |
Length | 19.5mm |
Series | R12P |
Load Regulation | 0.1 |
Minimum Temperature | -40°C |
Maximum Temperature | +90°C |
Efficiency | 70 → 82% |
