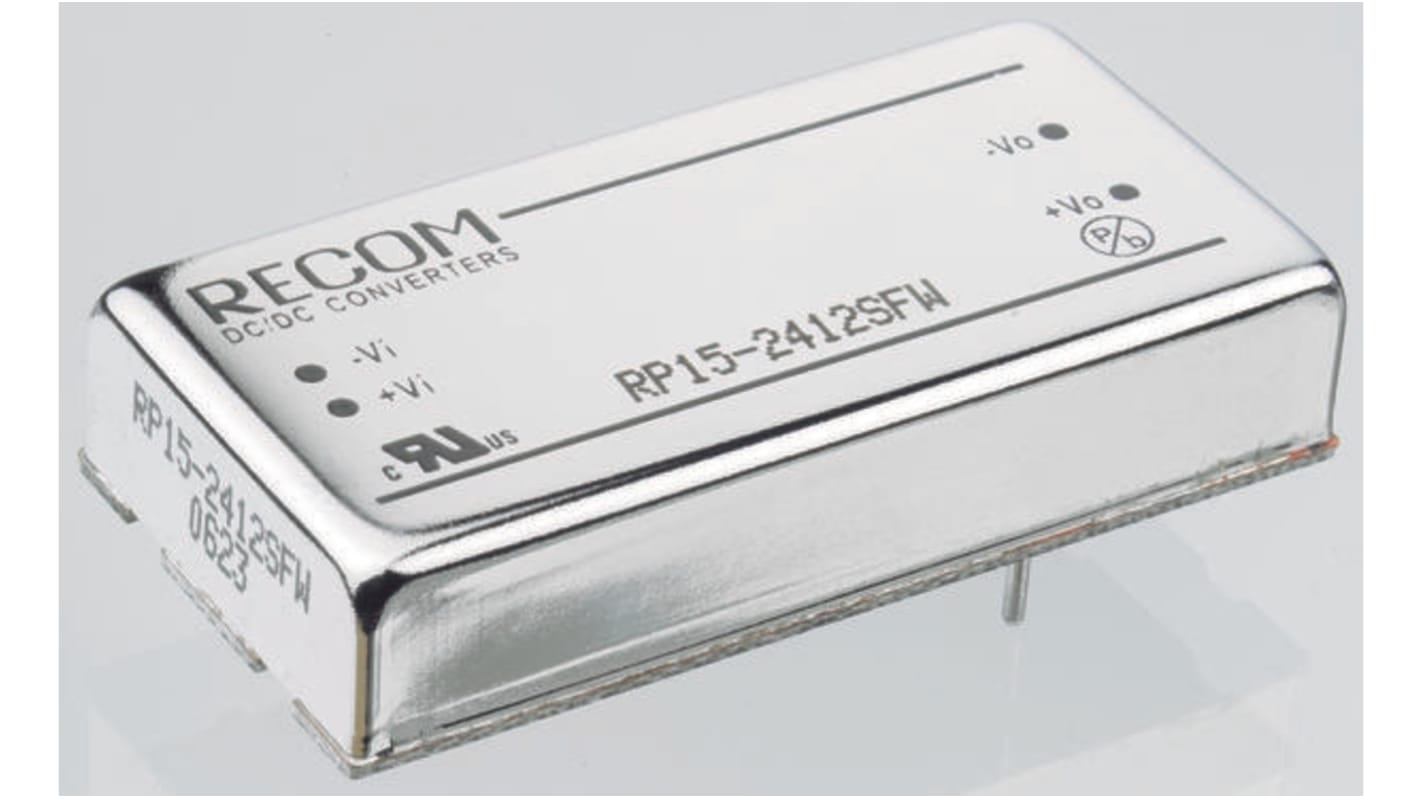

Recom RP15-FW DC/DC Converter, 15V dc/ 1 A, 36V dc Input, 9V Input 15 W, Through Hole, 75 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 9 units)*

£601.82

(exc. VAT)

£722.18

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£601.82£66.869
5 - 9£583.76£64.862
10 - 24£565.71£62.857
25 - 49£547.65£60.85
50 +£529.60£58.844

*price indicative

RS Stock No.:
162-2668
Mfr. Part No.:
RP15-2415SFW
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Product Type

DC/DC Converter

Output Voltage 1

15V dc

Maximum Input Voltage

36V dc

Minimum Input Voltage

9V

Output Current 1

1A

Mount Type

Through Hole

Input Ratio

4:1

Number of Outputs

1

MTBF

2350000h

Isolation Voltage

1.6kV dc

Number of Pins

24

Maximum Output Power

15W

Package Type

DIP

Length

25.4mm

Standards/Approvals

No

Depth

10.2mm

Series

RP15-FW

Maximum Operating Temperature

75°C

Minimum Operating Temperature

-40°C

Efficiency

88%

COO (Country of Origin):
TW

Recom 15W Single/Dual Output Regulated Isolated DC-DC Converter - RP15-FW Series


Ultra-wide 4:1 input voltage range

Regulated outputs

1.6kV input / output isolation

Pi input filter, requires external filter to meet EN 55022 Class A

Under voltage, over voltage (single), over load and short circuit protection

Shielded metal case with insulated baseplate

Industry standard pin-out

Note

Operating temperature with derating -40°C to +105°C.

Approvals

UL recognised

Standards

UL 1950
