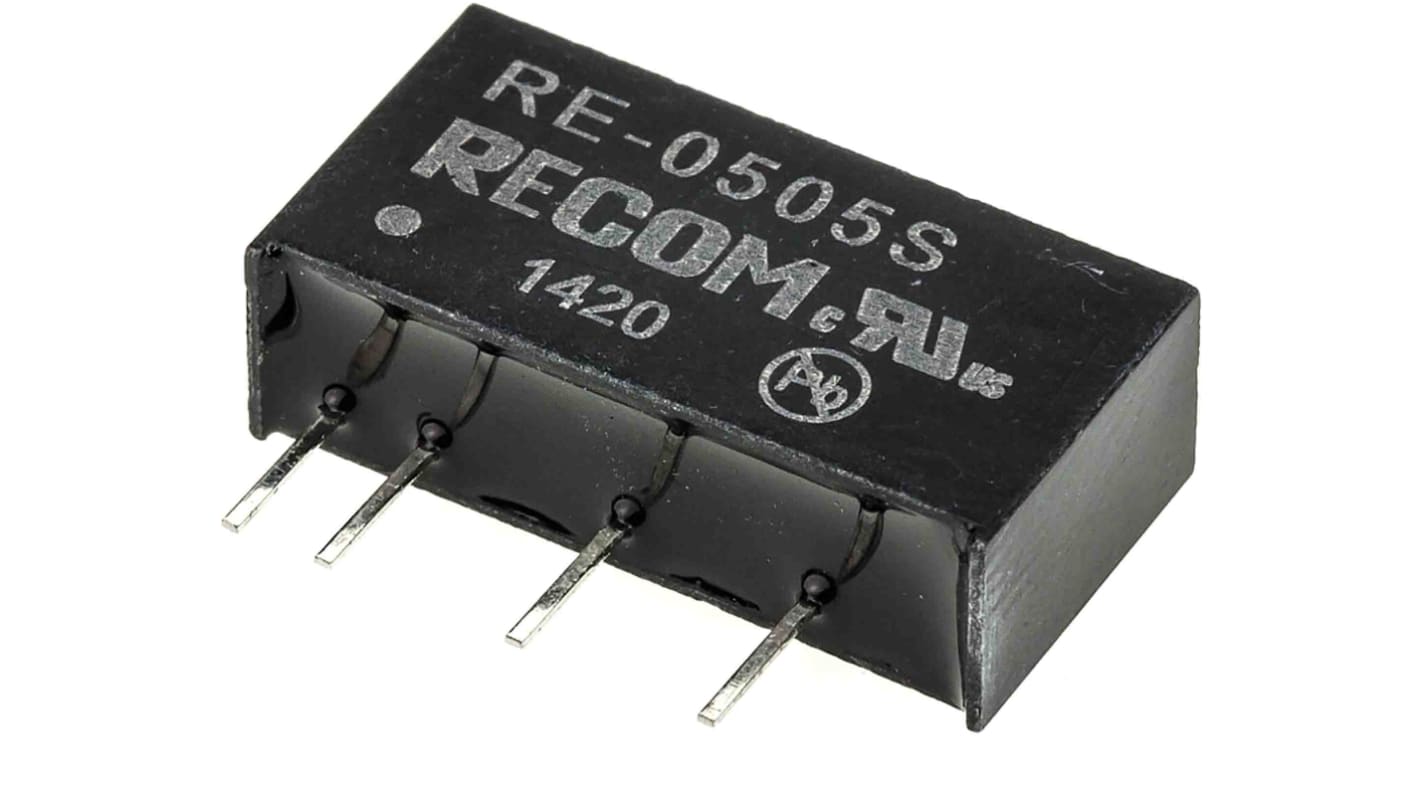

Recom RE DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min
- RS Stock No.:
- 162-2665
- Mfr. Part No.:
- RE-0505S
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 25 units)*
£127.13
(exc. VAT)
£152.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £127.13 | £5.085 |
| 5 - 9 | £123.32 | £4.933 |
| 10 - 24 | £119.50 | £4.78 |
| 25 - 49 | £115.69 | £4.628 |
| 50 + | £111.88 | £4.475 |
*price indicative
- RS Stock No.:
- 162-2665
- Mfr. Part No.:
- RE-0505S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 200mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Isolation Voltage | 1kV dc | |
| Depth | 10.2mm | |
| Width | 6mm | |
| Length | 19.6mm | |
| Series | RE | |
| Load Regulation | 15% | |
| Standards Met | CAN/CSA-C22.2 No. 60950-1, IEC60950-1, UL 60950-1 | |
| Minimum Temperature | -40°C | |
| Efficiency | 80% | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 5V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP | ||
Isolation Voltage 1kV dc | ||
Depth 10.2mm | ||
Width 6mm | ||
Length 19.6mm | ||
Series RE | ||
Load Regulation 15% | ||
Standards Met CAN/CSA-C22.2 No. 60950-1, IEC60950-1, UL 60950-1 | ||
Minimum Temperature -40°C | ||
Efficiency 80% | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW
RECOM DC-DC Converter, 1s Short Circuit Protection, 1000μF Maximum Capacitive Load - RE Series - RE-0505S
Use this DC-DC converter from RECOM to ensure a stable voltage supply to the connected devices on your PCB. It can step input voltages from 3.3 to 24V DC up or down to give a steady, ripple-free 5V DC output for your voltage-sensitive components. Through-hole mounting achieves a permanent connection to your circuit board, which means the unit can handle the mechanical stresses that comes with industrial settings.
Features & Benefits
• Power rating of 1W for energy efficiency and low heat dissipation
• Isolation voltage rating of 1kV DC handles surges to keep you safe
• Wide operating temperature range of -40°C to +85°C for use in challenging conditions
• SIP7 package has industry-standard pin-outs to suit most circuit designs
• Isolation voltage rating of 1kV DC handles surges to keep you safe
• Wide operating temperature range of -40°C to +85°C for use in challenging conditions
• SIP7 package has industry-standard pin-outs to suit most circuit designs
Applications
• Photovoltaic cells
• Alarm systems
• Alarm systems
Is this DC-DC converter fire-safe?
Yes, this DC-DC converter stops burning in 10 seconds or less, so it can help to stop the spread of flames in the event of a fire.
Is this DC-DC converter waterproof?
This converter isn't protected from water, so you should use and store it in dry conditions to prevent damage.
