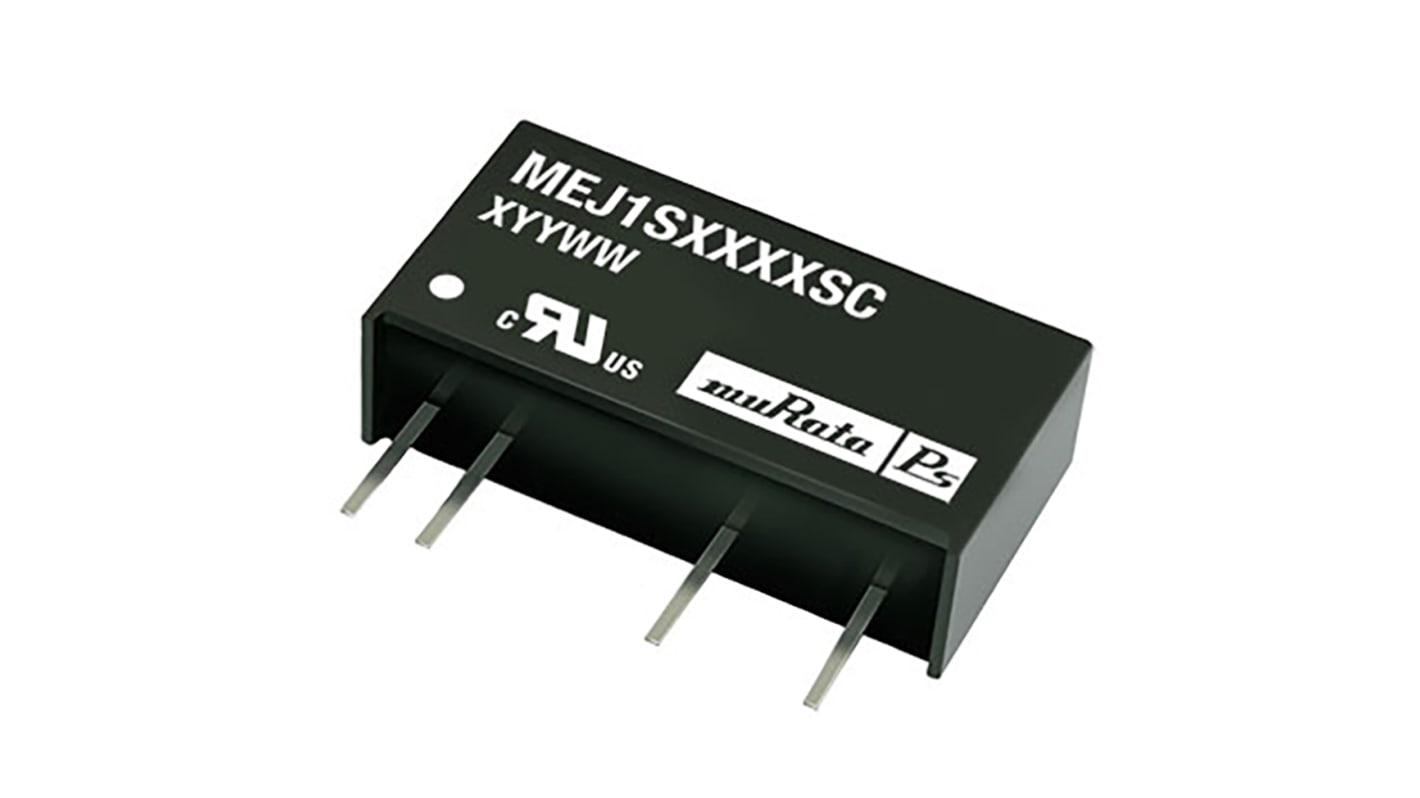

Murata Power Solutions MEJ1 DC/DC Converter, 9V dc/ 200 mA, 5.5V dc Input, 4.5V Input 1 W, Through Hole, 85 °C Max Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 25 units)*

£178.55

(exc. VAT)

£214.26

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£178.55£7.142
5 - 9£173.18£6.927
10 - 24£167.84£6.714
25 - 49£162.49£6.50
50 +£157.13£6.285

*price indicative

RS Stock No.:
162-0677
Mfr. Part No.:
MEJ1S0509SC
Brand:
Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Murata Power Solutions

Output Voltage 1

9V dc

Product Type

DC/DC Converter

Maximum Input Voltage

5.5V dc

Minimum Input Voltage

4.5V

Output Current 1

200mA

Output Current 2

111mA

Mount Type

Through Hole

MTBF

3939000h

Number of Outputs

1

Ripple and Noise

70mV Pk-Pk

Output Voltage Adjustment Range

4.5/5.5 V

Number of Pins

7

Isolation Voltage

5.2kV dc

Maximum Output Power

1W

Package Type

SIP

Series

MEJ1

Width

9.8mm

Weight

2.1g

Length

19.65mm

Depth

12.65mm

Standards/Approvals

CRE, RoHS, UL

Minimum Operating Temperature

-40°C

Efficiency

74%

Maximum Operating Temperature

85°C

COO (Country of Origin):
CN

Murata 1W SIP Single and Dual Output Isolated DC-DC Converter - MEJ1 Series


The Murata Power MEJ1 is a series of isolated 1 Watt DC-DC converters, encapsulated in a 7 pin SIP package. The DC-DC converter complies with the 3rd edition of medical safety standard and provides the following MOOP (means of operator protection): 2 MOOP based upon a working voltage of 200Vrms max - 280Vpkmax, between primary and secondary and 1 MOOP based upon a working voltage of 200Vrms max, between primary and its enclosure.

Typical energy efficiencies of these DC-DC converters are in the range of 70 to 78%.

The MEJ1 series is designed for low power applications that require a high degree of isolation such as an agency-approved safety barrier for medical equipment, IGBT drivers, and control systems.

Single and dual outputs

UL 94V-0 package material

SIP package style

5.2kVDC isolation

3.3V, 5V, 12V, 15V & 24V inputs

3.3V, 5V, 9V, 12V & 15V output

Internal SMD construction

Fully encapsulated with toroidal magnetics

Pin compatible with the MEV, NMV, NMK, MEJ2, & NMJ series

Murata Power Solutions - SIP


Approvals

UL 609502, UL60601 (3rd Edition)
