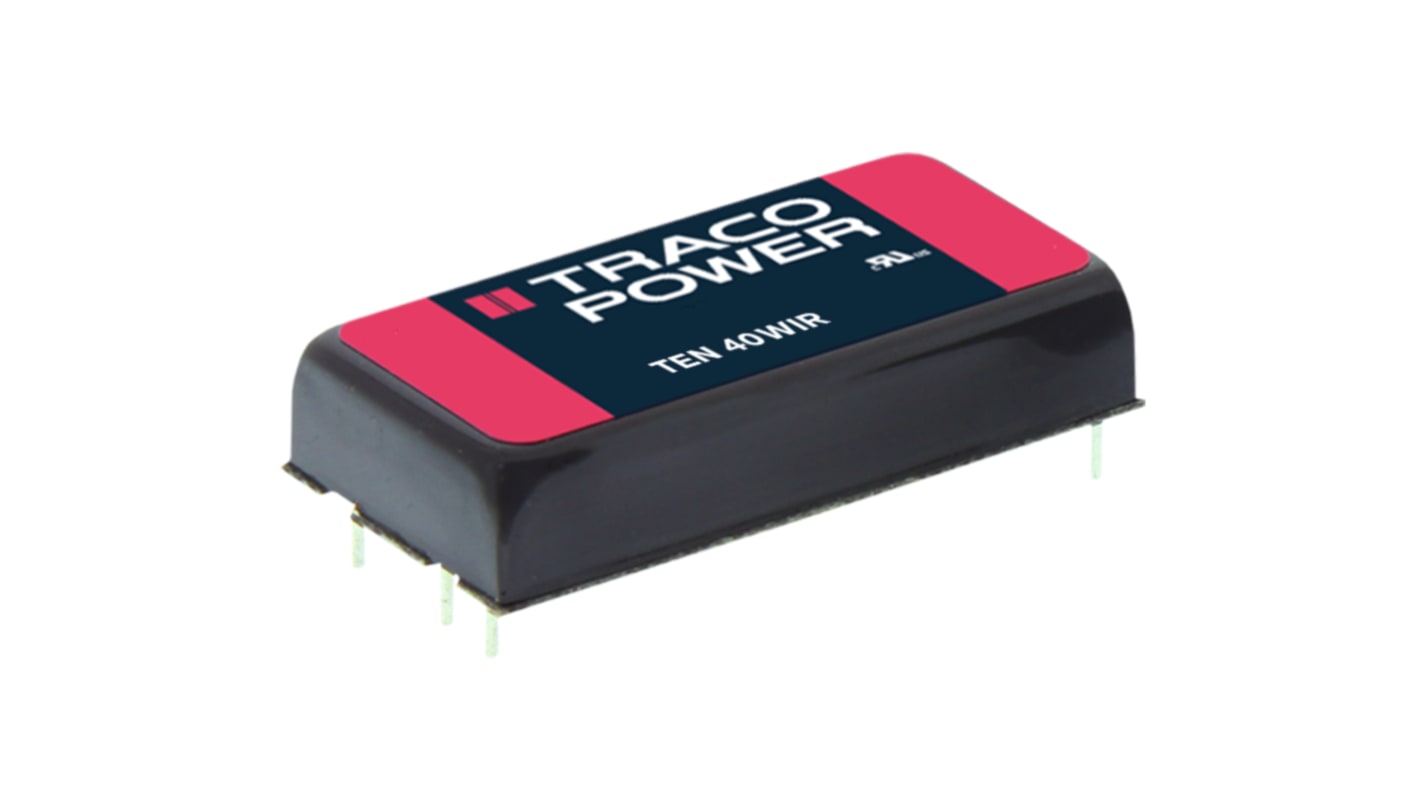

TRACOPOWER TEN 40WIR DC-DC Converter, 12V dc/ 3.33A Output, 18 → 75 V dc Input, 40W, Through Hole, +85°C Max
- RS Stock No.:
- 161-9746
- Mfr. Part No.:
- TEN 40-4812WIR
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£850.67
(exc. VAT)
£1,020.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £850.67 | £85.067 |
| 5 - 9 | £825.14 | £82.514 |
| 10 - 24 | £799.63 | £79.963 |
| 25 - 49 | £765.60 | £76.56 |
| 50 + | £731.57 | £73.157 |
*price indicative
- RS Stock No.:
- 161-9746
- Mfr. Part No.:
- TEN 40-4812WIR
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 40W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 3.33A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | 1 x 2 in | |
| Isolation Voltage | 1.6kV dc | |
| Depth | 10.2mm | |
| Length | 50.8mm | |
| Series | TEN 40WIR | |
| Railway Approved | Yes | |
| Load Regulation | 0.005 | |
| Efficiency | 92% | |
| Medical Approved | No | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 40W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 3.33A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package 1 x 2 in | ||
Isolation Voltage 1.6kV dc | ||
Depth 10.2mm | ||
Length 50.8mm | ||
Series TEN 40WIR | ||
Railway Approved Yes | ||
Load Regulation 0.005 | ||
Efficiency 92% | ||
Medical Approved No | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
