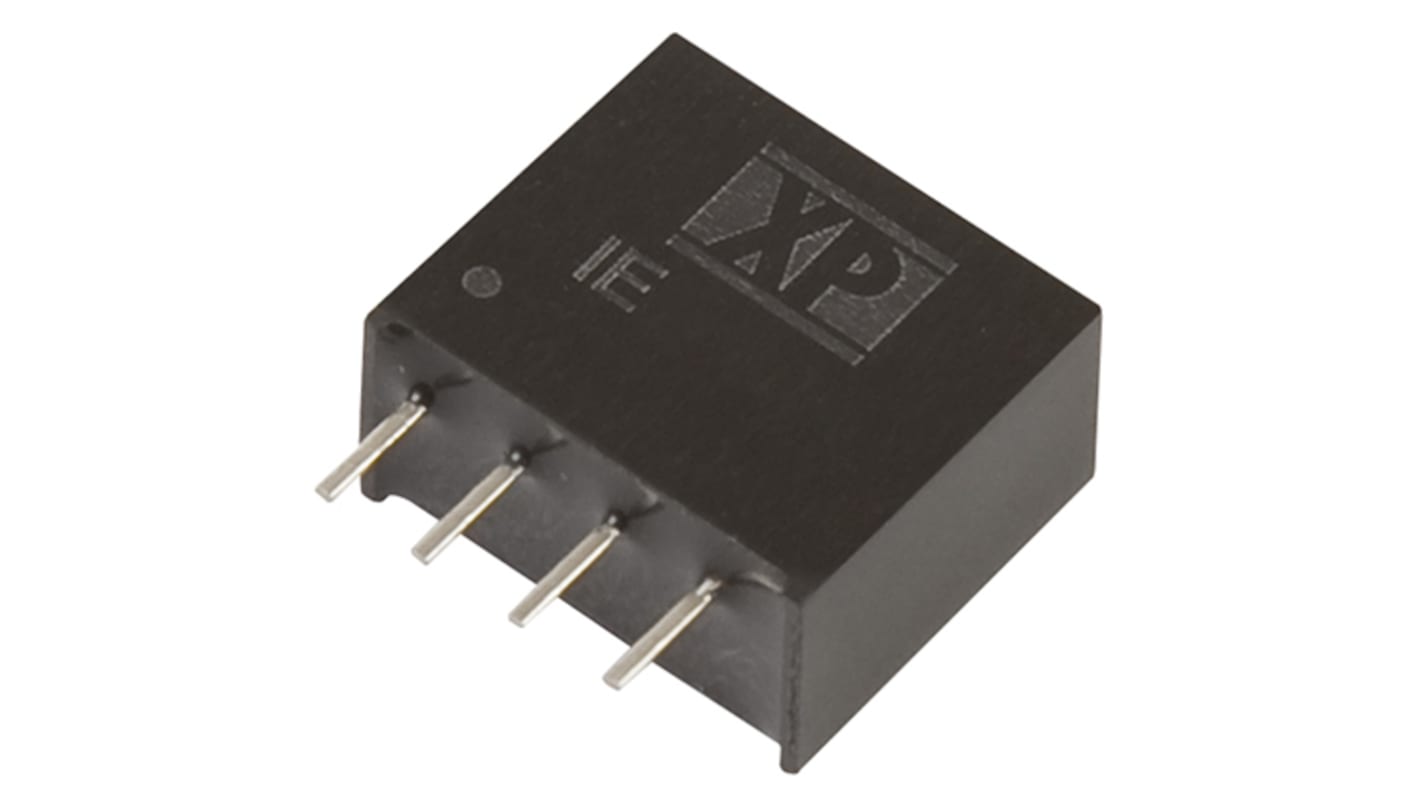

XP Power IE DC-DC Converter, 3.3V dc/ 300mA Output, 2.7 → 3.3 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 161-9245
- Mfr. Part No.:
- IE0303SH
- Brand:
- XP Power
Available to back order for despatch 06/06/2024
Added
Price 1 Tube of 40
£274.79
(exc. VAT)
£329.75
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
1 - 4 | £274.79 | £6.87 |
5 - 9 | £266.55 | £6.664 |
10 - 24 | £258.30 | £6.458 |
25 - 49 | £250.06 | £6.252 |
50 + | £241.82 | £6.046 |
*price indicative |
- RS Stock No.:
- 161-9245
- Mfr. Part No.:
- IE0303SH
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - IEU Series of DC-DC Converters
The IEU series from XP Power offers a highly reliable range of single and dual outputs isolated DC-DC converters. The range features 1000 VDC in isolation and is available in an industry standard SIP or DIP package. These compact DC-DC converters all have a wide operating temperature and are also available in smaller package sizes.
1 W, isolated DC-DC converters
1000 VDC in isolation, 3000 VDC in isolation option available
Single output
-40 °C to +85 °C Operating temperature
Industry standard SIP and DIP packaging
Up to 80% efficiency
Available in smaller packages
1000 VDC in isolation, 3000 VDC in isolation option available
Single output
-40 °C to +85 °C Operating temperature
Industry standard SIP and DIP packaging
Up to 80% efficiency
Available in smaller packages
XP Power - Isolated DC-DC Converters
Specifications
Attribute | Value |
---|---|
Output Voltage | 3.3V dc |
Input Voltage Range | 2.7 → 3.3 V dc |
Power Rating | 1W |
Input Voltage Nominal | 3.3 V dc |
Output Current | 300mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | SIP |
Isolation Voltage | 3kV dc |
Width | 6mm |
Length | 11.68mm |
Depth | 10.15mm |
Series | IE |
Load Regulation | ±20% |
Efficiency | 71% |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
