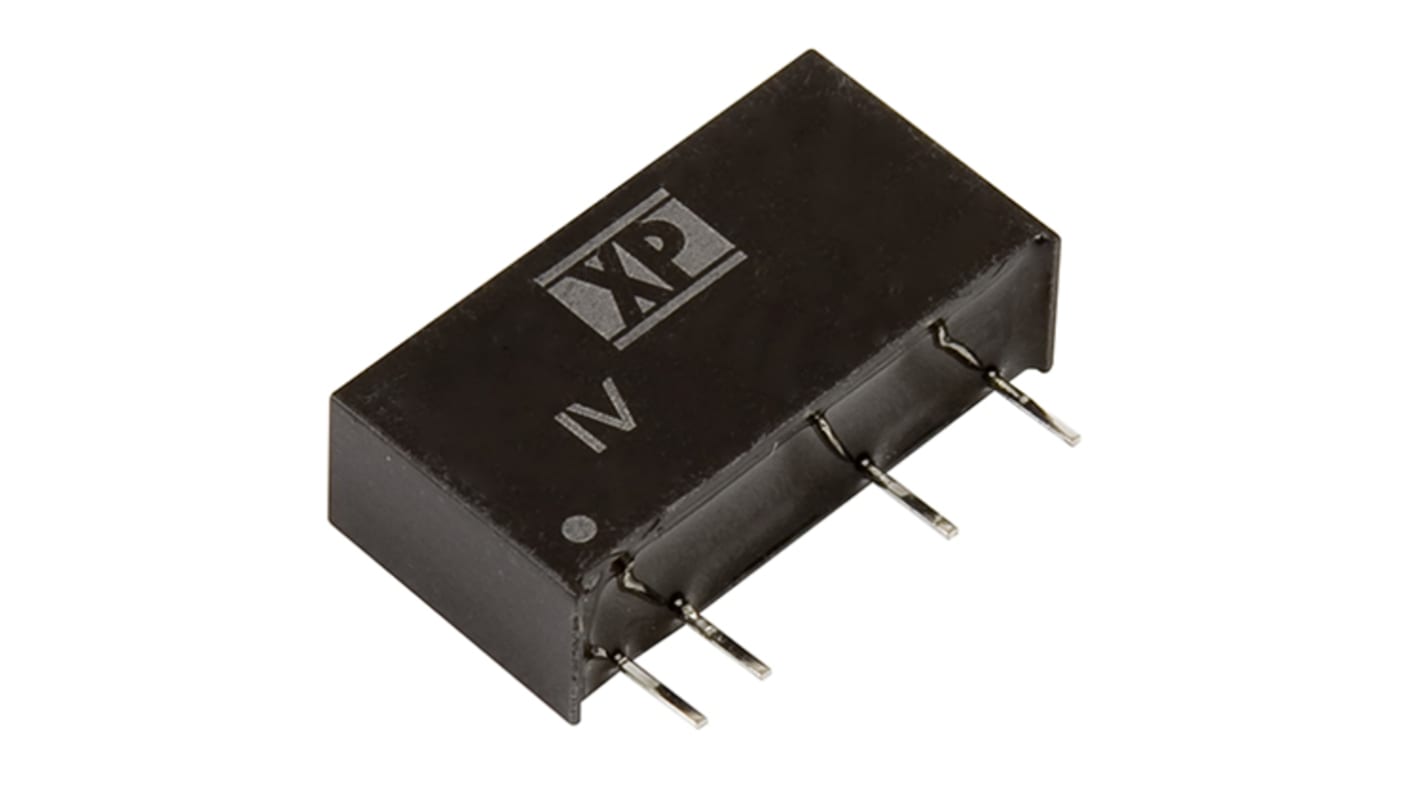

XP Power IV DC-DC Converter, ±24V dc/ ±42mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 161-9189
- Mfr. Part No.:
- IV2424S
- Brand:
- XP Power
Subtotal (1 tube of 20 units)*
£95.91
(exc. VAT)
£115.09
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 1 unit(s), ready to ship
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £95.91 | £4.796 |
*price indicative
- RS Stock No.:
- 161-9189
- Mfr. Part No.:
- IV2424S
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | ±24V dc | |
| Input Voltage Range | 21.6 → 26.4 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | ±42mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP | |
| Isolation Voltage | 3kV dc | |
| Length | 19.5mm | |
| Width | 6mm | |
| Depth | 9.5mm | |
| Series | IV | |
| Load Regulation | ±10% | |
| Efficiency | 78% | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage ±24V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±42mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 3kV dc | ||
Length 19.5mm | ||
Width 6mm | ||
Depth 9.5mm | ||
Series IV | ||
Load Regulation ±10% | ||
Efficiency 78% | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
