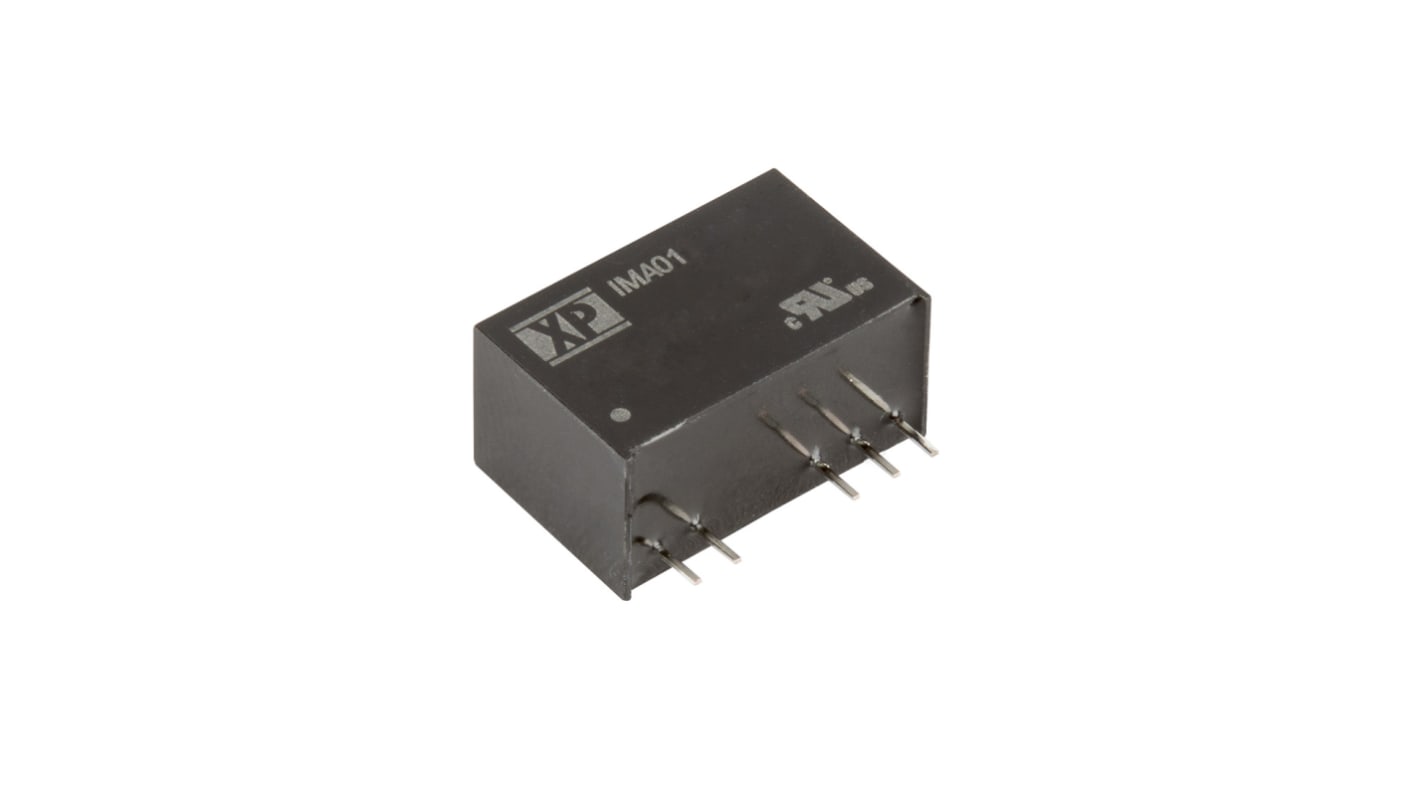

XP Power IMA01 DC-DC Converter, 9V dc/ 111mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +75°C Max Temp

RS Stock No.:: 161-8992
Mfr. Part No.:: IMA0124S09
Brand:: XP Power

XP Power IMA01 DC-DC Converter, 9V dc/ 111mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +75°C Max Temp

Available to back order for despatch when stock is available

Price 1 Tube of 10

£61.74

(exc. VAT)

£74.09

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£61.74	£6.174
5 - 9	£59.89	£5.989
10 - 24	£58.04	£5.804
25 - 49	£56.18	£5.618
50 +	£54.33	£5.433

*price indicative

RS Stock No.:: 161-8992
Mfr. Part No.:: IMA0124S09
Brand:: XP Power

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

XP Power - IMA Series of Isolated DC-DC Converters

XP Power IMA01 Series of DC-DC Converters offers a highly isolated solution to a wide range of applications. IMA01 Series provides global medical approvals with single and dual output options enabling installations into a wide variety of single phase environments.
The IMA01 Series has been designed with new and existing applications in mind. XP Power has been designed utilising the industry standard SIP7 Package, making the IMA01 Series suitable for new or existing upgrades.

Features and Benefits
High Isolation of 4000 V, 1 x MOPP at 250 V ac.
Offers single and dual output options.
Suitable for new and existing applications.
Utilises industry standard SIP7 Package.
Wide operating range, with a full load of 75 °C ambient.
MTBF rating of 2.5 MHrs

XP Power Isolated DC-DC Converters

Specifications

Attribute	Value
Output Voltage	9V dc
Input Voltage Range	21.6 → 26.4 V dc
Power Rating	1W
Input Voltage Nominal	24 V dc
Output Current	111mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Output Voltage Adjustment Range	±5%
Package	SIP 7
Isolation Voltage	4kV ac
Depth	11.1mm
Length	19.5mm
Width	9.2mm
Series	IMA01
Load Regulation	0.1
Standards Met	CB IEC60601-1, Conducted EN55011 Class B, Conducted Immunity EN61000-4-6, CSA C22.2 No 60601-1, EFT/Burst EN61000-4-4, ESD Immunity EN61000-4-2, Magnetic Fields EN61000-4-8, Radiated EN55011 Class B, Radiated Immunity EN61000-4-3, Surge EN61000-4-5, TUV EN60601-1, UL ANSi/AMMI 60601-1
Maximum Temperature	+75°C
Minimum Temperature	-40°C
Medical Approved	Yes
