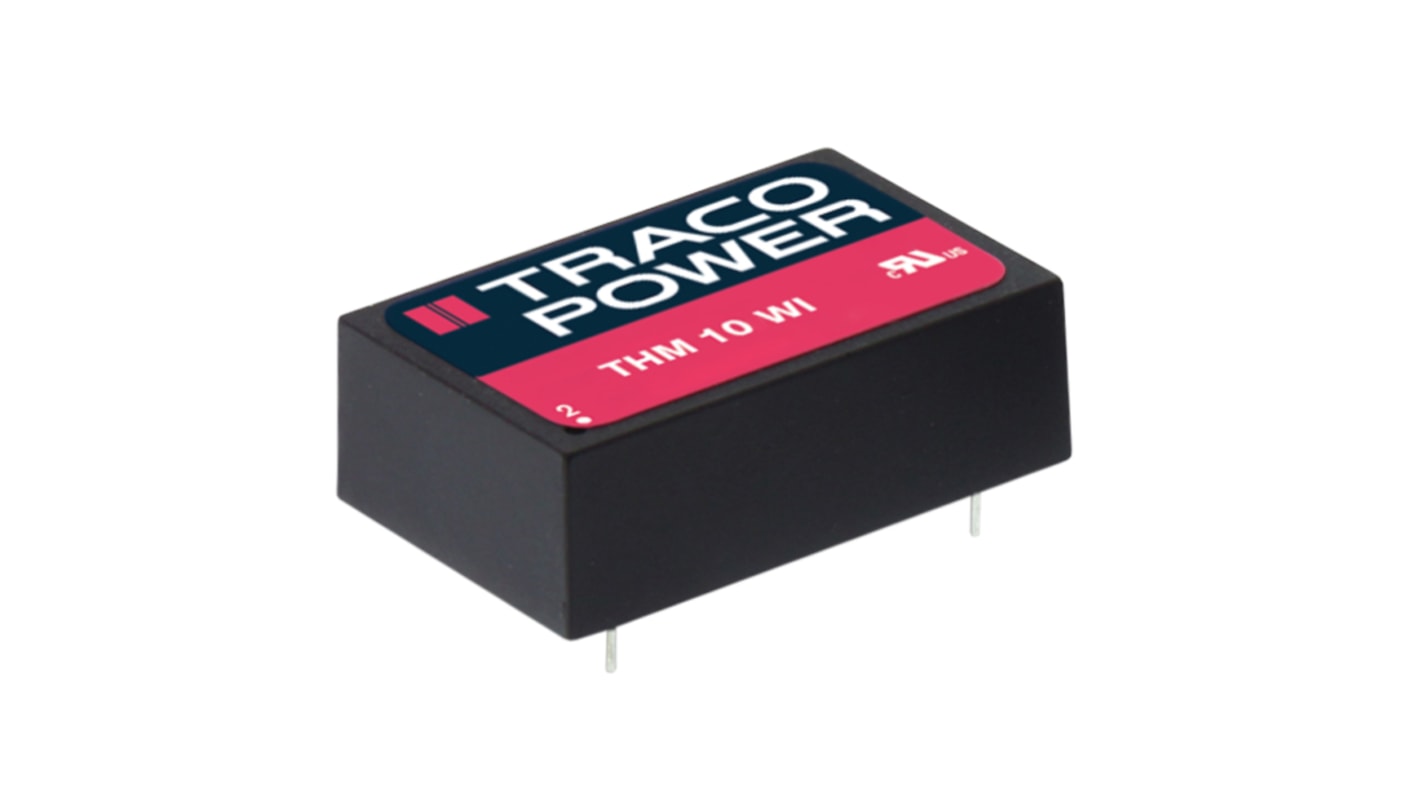

TRACOPOWER THM 10WI DC-DC Converter, 24V dc/ 416mA Output, 9 → 36 V dc Input, 10W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 161-6495
- Mfr. Part No.:
- THM 10-2415WI
- Brand:
- TRACOPOWER
27 In stock - FREE next working day delivery available
Added
Price 1 Tube of 10
£511.07
(exc. VAT)
£613.28
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £511.07 | £51.107 |
| 5 - 9 | £495.74 | £49.574 |
| 10 - 24 | £480.41 | £48.041 |
| 25 - 49 | £459.96 | £45.996 |
| 50 + | £439.52 | £43.952 |
| *price indicative | ||
- RS Stock No.:
- 161-6495
- Mfr. Part No.:
- THM 10-2415WI
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 10W Regulated Isolated DC-DC Converter - THM 10WI Serie
The Tracopower THM-10WI comes in a DIP-24 plastic package, high efficiency of up to 87% and highest grade components. The reinforced I/O-isolation of this high performance regulated DC/DC converter complies with medical safety requirements for MOPP (Means Of Patient Protection). The THM-10WI range of DC/DC converters feature a wide 4:1 input voltage range and an internal EMI filter meeting EN55022 class A, which makes the THM-10WI a reliable solution for demanding applications, such as transportation systems, industrial control equipments, measurement equipments and some IGBT drivers applications.
Ultra wide 4:1 input voltage
I/O isolation 5000 VACrms rated for 250 working voltage
2 x MOPP Medical safety
Low leakage current ˂2 μA
Very high efficiency up to 89%
Extended operating temperature range –40°C to 85°C
Input filter to meet EN55022 class A
3-year product warranty
I/O isolation 5000 VACrms rated for 250 working voltage
2 x MOPP Medical safety
Low leakage current ˂2 μA
Very high efficiency up to 89%
Extended operating temperature range –40°C to 85°C
Input filter to meet EN55022 class A
3-year product warranty
Standards
AAMI/ANSI ES 60601-1
2005(R) 2012
IEC/EN 60601-1 3rd edition
2005(R) 2012
IEC/EN 60601-1 3rd edition
Approvals
UL online certification ES 60601-1
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Input Voltage Range | 9 → 36 V dc |
| Power Rating | 10W |
| Input Voltage Nominal | 12 V dc |
| Output Current | 416mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | DIP 24 |
| Isolation Voltage | 5kV ac |
| Length | 31.8mm |
| Depth | 10.2mm |
| Series | THM 10WI |
| Railway Approved | No |
| Load Regulation | 0.002 |
| Efficiency | 89% |
| Medical Approved | Yes |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
