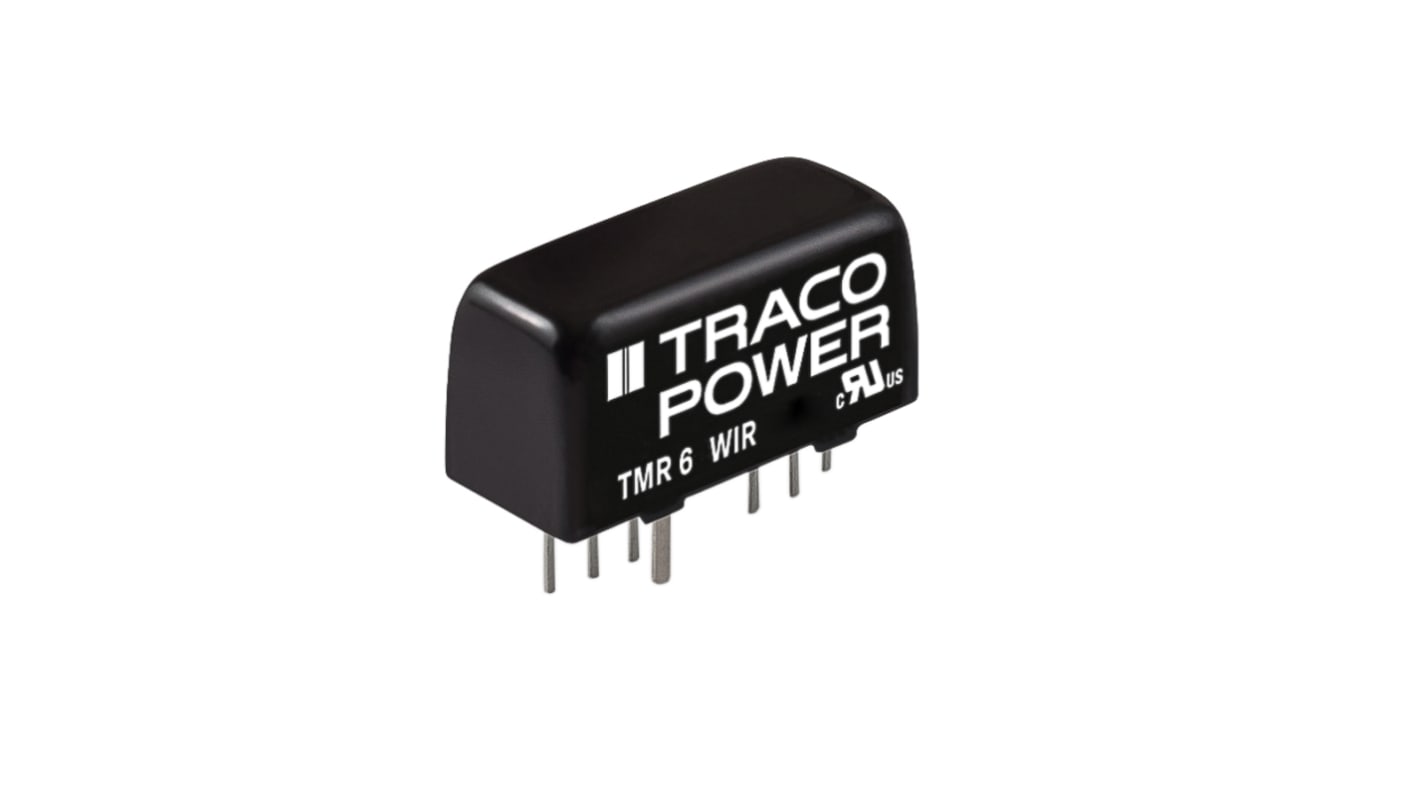

TRACOPOWER TMR 6WIR DC/DC Converter, 5V/ 1.2 A, 160V Input, 43V Input 6 W, Through Hole, 80 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£29.73

(exc. VAT)

£35.68

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
1 - 4£29.73
5 - 9£28.84
10 - 24£27.96
25 - 49£26.75
50 +£25.57

*price indicative

RS Stock No.:
151-2892
Distrelec Article No.:
301-07-223
Mfr. Part No.:
TMR 6-7211WIR
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

DC/DC Converter

Output Voltage 1

5V

Maximum Input Voltage

160V

Minimum Input Voltage

43V

Output Current 1

1.2A

Mount Type

Through Hole

Input Ratio

4:1

MTBF

2950000h

Number of Outputs

1

Number of Pins

6

Isolation Voltage

1.6kV

Maximum Output Power

6W

Package Type

SIP

Series

TMR 6WIR

Length

21.8mm

Standards/Approvals

No

Depth

11.2mm

Width

9.1mm

Maximum Operating Temperature

80°C

Efficiency

80%

Minimum Operating Temperature

-40°C

The TMR 6WIR series is a set of 6 Watt DC/DC converters in a SIP-8 metal case. They operate up to 60°C environment temperature at full load and up to 80°C with a 50% load derating. With 3’000 VDC I/O-isolation voltage, external On/Off, overload and short current protection they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (4:1) and minimum load is not required.

Compact metal case

Ultra wide 4:1 Input: 9–36, 18–75 and 43–160 VDC

I/O-isolation 3’000 VDC

Fully regulated outputs

Operating temperature range –40°C to +80°C

Protection against overload and short circuit

Remote On/Off

3-year product warranty
