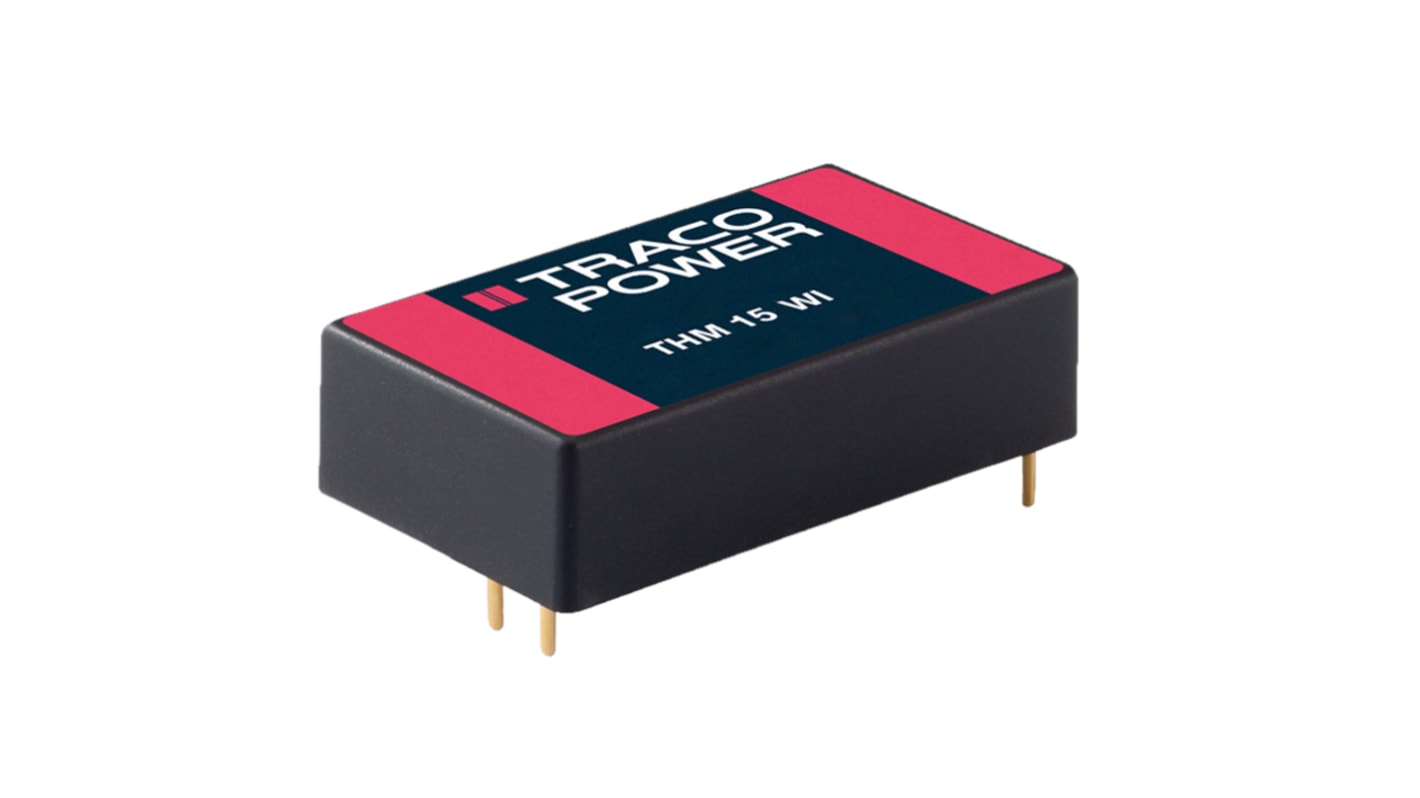

TRACOPOWER THM 15WI DC-DC Converter, 5V dc/ 3A Output, 9 → 36 V dc Input, 15W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 146-5948
- Mfr. Part No.:
- THM 15-2411WI
- Brand:
- TRACOPOWER
46 In stock - FREE next working day delivery available
Added
Price 1 Tube of 10
£547.23
(exc. VAT)
£656.68
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £547.23 | £54.723 |
| 5 - 9 | £530.81 | £53.081 |
| 10 - 24 | £514.40 | £51.44 |
| 25 - 49 | £492.51 | £49.251 |
| 50 + | £470.62 | £47.062 |
| *price indicative | ||
- RS Stock No.:
- 146-5948
- Mfr. Part No.:
- THM 15-2411WI
- Brand:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The THM 15WI series is a range of medical 15 Watt DC/DC converters in 1.6” x 1.0” plastic package and with wide 2:1 input voltage range. They provide a reinforced isolation system for 5000 VACrms isolation and a very low leakage current of less than 2.5 μA. The units are approved to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP (Means Of Patient Protection) and come along with an ISO 14971 risk management file. Design and production conform to the quality management system ISO 13485.
I/O isolation 5000 VACrms rated for 250 VACrms working voltage
Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP
Risk management process according to ISO 14971 including risk management file
Extended operating temperature range –40°C to 85°C.
EMC compliance to IEC 60601-1-2 4th edition and EN55032 class A
Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP
Risk management process according to ISO 14971 including risk management file
Extended operating temperature range –40°C to 85°C.
EMC compliance to IEC 60601-1-2 4th edition and EN55032 class A
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 9 → 36 V dc |
| Power Rating | 15W |
| Input Voltage Nominal | 24 V dc |
| Output Current | 3A |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Output Voltage Adjustment Range | ±10% |
| Package | 1.6 x 1 in |
| Isolation Voltage | 5kV ac |
| Depth | 10.2mm |
| Width | 25.4mm |
| Length | 40.6mm |
| Series | THM 15WI |
| Load Regulation | 0.002 |
| Standards Met | ANSI/AAMI ES 60601-1, CB, EMC, EN 55011, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, ES 60601-1, IEC 60601-1, IEC 60601-1-2, IEC/EN 60601-1-2, MIL-STD-810F |
| Maximum Temperature | +85°C |
| Medical Approved | Yes |
| Minimum Temperature | -40°C |
| Efficiency | 87% |
