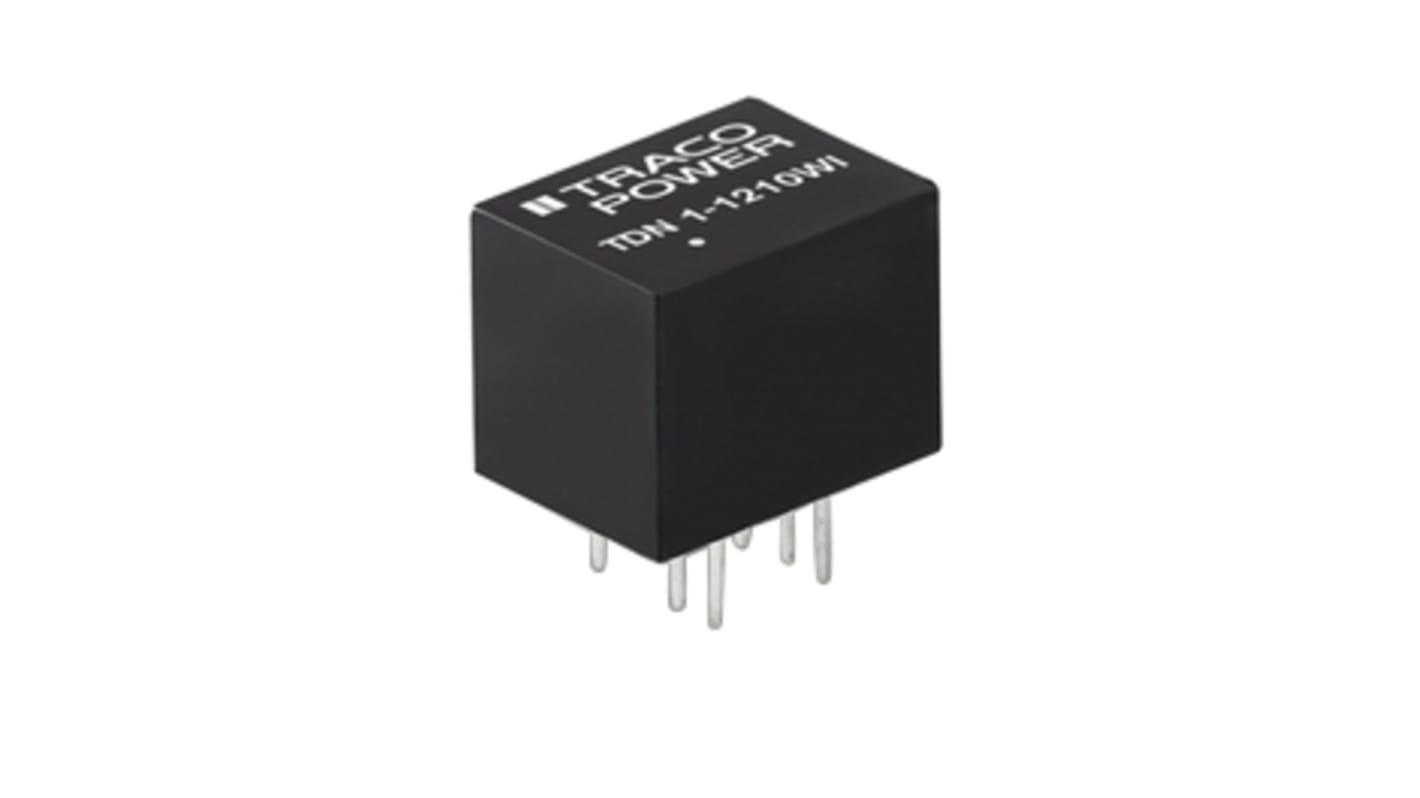

Name: TRACOPOWER TDN 1WI DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 18 V dc Input, 1W, Through Hole, +90°C Max Temp
Brand: TRACOPOWER
SKU: 143-6483
Price: 17.38 GBP
Availability: Discontinued

TRACOPOWER TDN Power Rating 1WI Series DC-DC Converter, 1W Power Rating, 200mA Output Current - TDN 1-1211WI

This isolated DC-DC converter is designed for high-performance power conversion, offering a reliable output of 5V DC. Compactly housed in a DIP package measuring 13.2mm x 9.m x 9.9mm, it features a wide input voltage range of 4.5 to 18V DC. The converter operates efficiently even in extreme temperature conditions, ranging from -40°C to +90°C, making it suitable for various industrial applications.

Features & Benefits

• Produces a fully regulated output for consistent performance
• I/O isolation voltage of 1.6 kV DC enhances safety
• Short circuit protection prevents damage under fault conditions
• Remote On/Off control allows for flexible operation
• High efficiency of 79% improves energy conservation
• No minimum load requirement simplifies usage

Applications

• Utilised in automation systems for efficient power distribution
• Ideal for powering sensor where space is limited
• Commonly used in communication devices for voltage regulation
• Suitable for use in robotics for stable performance

What is the maximum operating temperature for this converter?

The maximum operating temperature reaches up to 90°C, allowing it to function reliably in demanding environments without derating.

How does isolation voltage affect the performance of this converter?

With an isolation voltage of 1.6 kV DC, it ensures that the output is safely isolated from the input, enhancing the protection of connected devices.

Is it necessary to connect a minimum load when using this power converter?

No, this converter does not require a minimum load, allowing for flexible implementation in various circuits without specific load requirements.

What benefits does remote On/Off control provide?

The remote On/Off feature allows for efficient power management, enabling users to control the converter’s operation without physical interaction, thus enhancing convenience.

How does this converter handle short circuits?

It includes short circuit protection that enables continuous operation under fault conditions, automatically recovering once the fault is cleared, enhancing overall reliability.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage	5V dc
	Input Voltage Range	4.5 → 18 V dc
	Power Rating	1W
	Input Voltage Nominal	12 V dc
	Output Current	200mA
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	1
	Package	DIP
	Isolation Voltage	1.6kV dc
	Length	13.2mm
	Depth	9.9mm
	Width	9.1mm
	Series	TDN 1WI
	Load Regulation	0.01
	Efficiency	79%
	Maximum Temperature	+90°C
	Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-810F
	Minimum Temperature	-40°C

	Select all
	Brand TRACOPOWER
	Output Voltage 5V dc
	Input Voltage Range 4.5 → 18 V dc
	Power Rating 1W
	Input Voltage Nominal 12 V dc
	Output Current 200mA
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 1
	Package DIP
	Isolation Voltage 1.6kV dc
	Length 13.2mm
	Depth 9.9mm
	Width 9.1mm
	Series TDN 1WI
	Load Regulation 0.01
	Efficiency 79%
	Maximum Temperature +90°C
	Standards Met EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-810F
	Minimum Temperature -40°C
