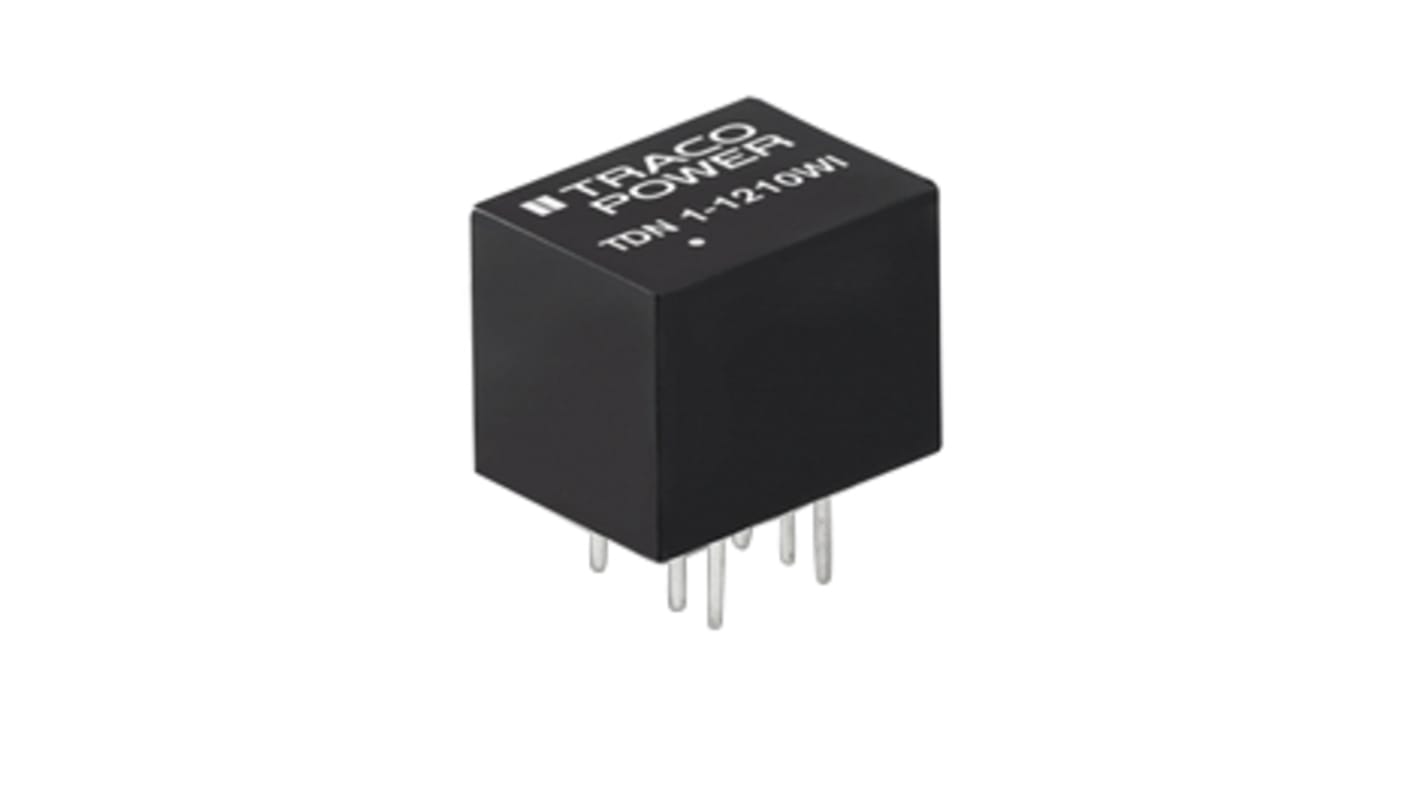

TRACOPOWER TDN 1WI DC-DC Converter, 3.3V dc/ 300mA Output, 4.5 → 18 V dc Input, 1W, Through Hole, +90°C Max Temp

RS Stock No.:: 143-6461
Mfr. Part No.:: TDN 1-1210WI
Brand:: TRACOPOWER

TRACOPOWER TDN 1WI DC-DC Converter, 3.3V dc/ 300mA Output, 4.5 → 18 V dc Input, 1W, Through Hole, +90°C Max Temp

Available to back order for despatch when stock is available

Price Each

£14.48

(exc. VAT)

£17.38

(inc. VAT)

Units	Per unit
1 - 4	£14.48
5 - 9	£14.05
10 - 24	£13.61
25 - 49	£13.03
50 +	£12.45

RS Stock No.:: 143-6461
Mfr. Part No.:: TDN 1-1210WI
Brand:: TRACOPOWER

Technical Reference

Legislation and Compliance

Product Details

Compact DIP package 13.2 x 9.1 x 10.2 mm
Fully regulated outputs
I/O-isolation 1500 VDC
Operating temperature range –40°C to +90°C without derating
Short circuit protection
Remote On/Off
3-year product warranty

The TDN 1WI Series comprises 1 Watt fully regulated, high performance DC/ DC converters. They come in a compact cubical package of only 1.23 cm3. Full load operation is reliable up to 90°C environment temperature. With 1’500 VDC I/O-isolation voltage, external On/Off, and short current protection they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (4:1) and minimum load is not required.

Specifications

Attribute	Value
Output Voltage	3.3V dc
Input Voltage Range	4.5 → 18 V dc
Power Rating	1W
Input Voltage Nominal	12 V dc
Output Current	300mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	DIP
Isolation Voltage	1.6kV dc
Width	9.1mm
Length	13.2mm
Depth	9.9mm
Series	TDN 1WI
Load Regulation	0.01
Minimum Temperature	-40°C
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-810F
Efficiency	77%
Maximum Temperature	+90°C
