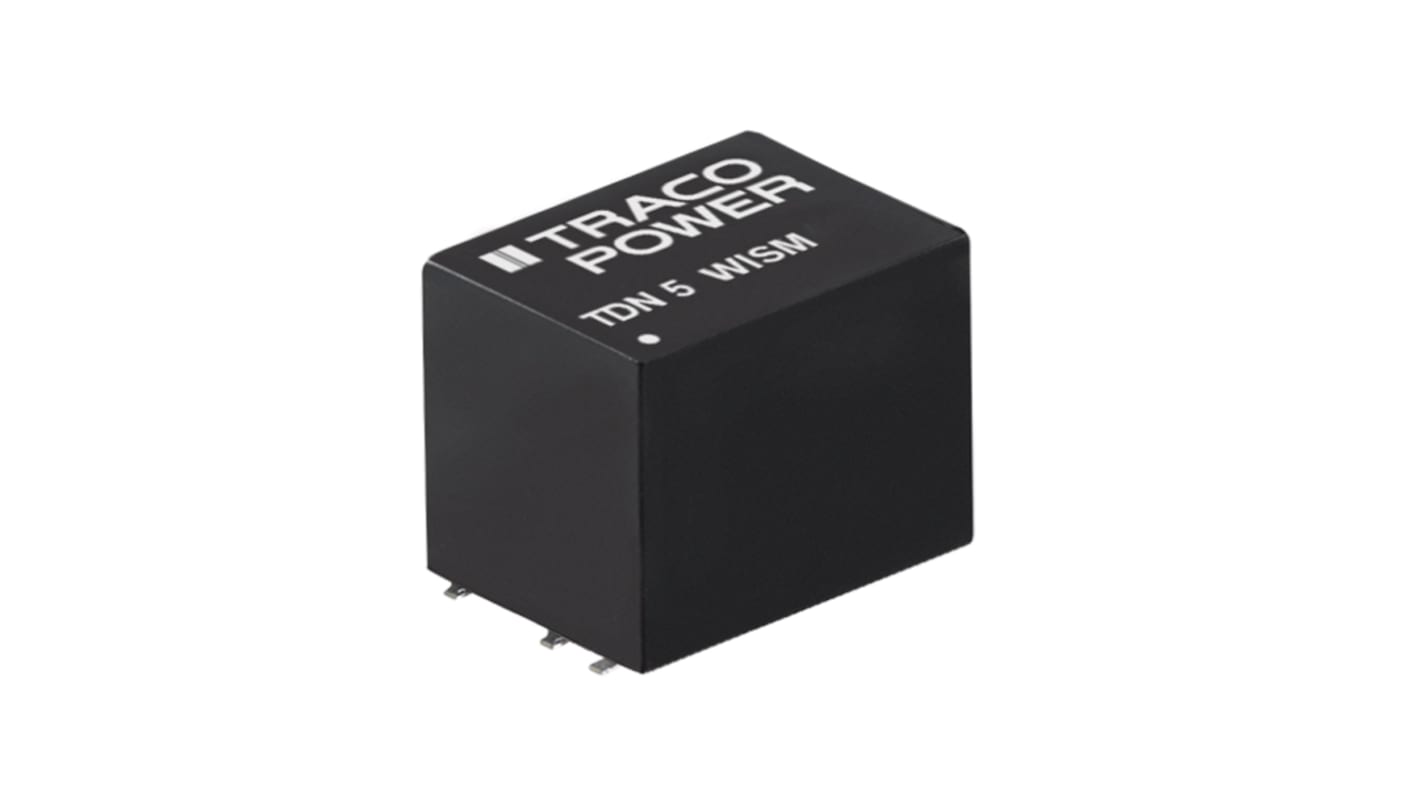

TRACOPOWER TDN 5WISM DC-DC Converter, 5V dc/ 1A Output, 4.5 → 13.2 V dc Input, 5W, Surface Mount, +75°C Max Temp
- RS Stock No.:
- 141-8462
- Mfr. Part No.:
- TDN 5-0911WISM
- Brand:
- TRACOPOWER
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 141-8462
- Mfr. Part No.:
- TDN 5-0911WISM
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 4.5 → 13.2 V dc | |
| Power Rating | 5W | |
| Input Voltage Nominal | 9 V dc | |
| Output Current | 1A | |
| Mounting Type | Surface Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SMD | |
| Isolation Voltage | 1.6kV dc | |
| Width | 9.1mm | |
| Length | 13.2mm | |
| Depth | 9.9mm | |
| Series | TDN 5WISM | |
| Load Regulation | 0.01 | |
| Maximum Temperature | +75°C | |
| Efficiency | 80% | |
| Minimum Temperature | -40°C | |
| Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-810F | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 4.5 → 13.2 V dc | ||
Power Rating 5W | ||
Input Voltage Nominal 9 V dc | ||
Output Current 1A | ||
Mounting Type Surface Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SMD | ||
Isolation Voltage 1.6kV dc | ||
Width 9.1mm | ||
Length 13.2mm | ||
Depth 9.9mm | ||
Series TDN 5WISM | ||
Load Regulation 0.01 | ||
Maximum Temperature +75°C | ||
Efficiency 80% | ||
Minimum Temperature -40°C | ||
Standards Met EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-810F | ||
