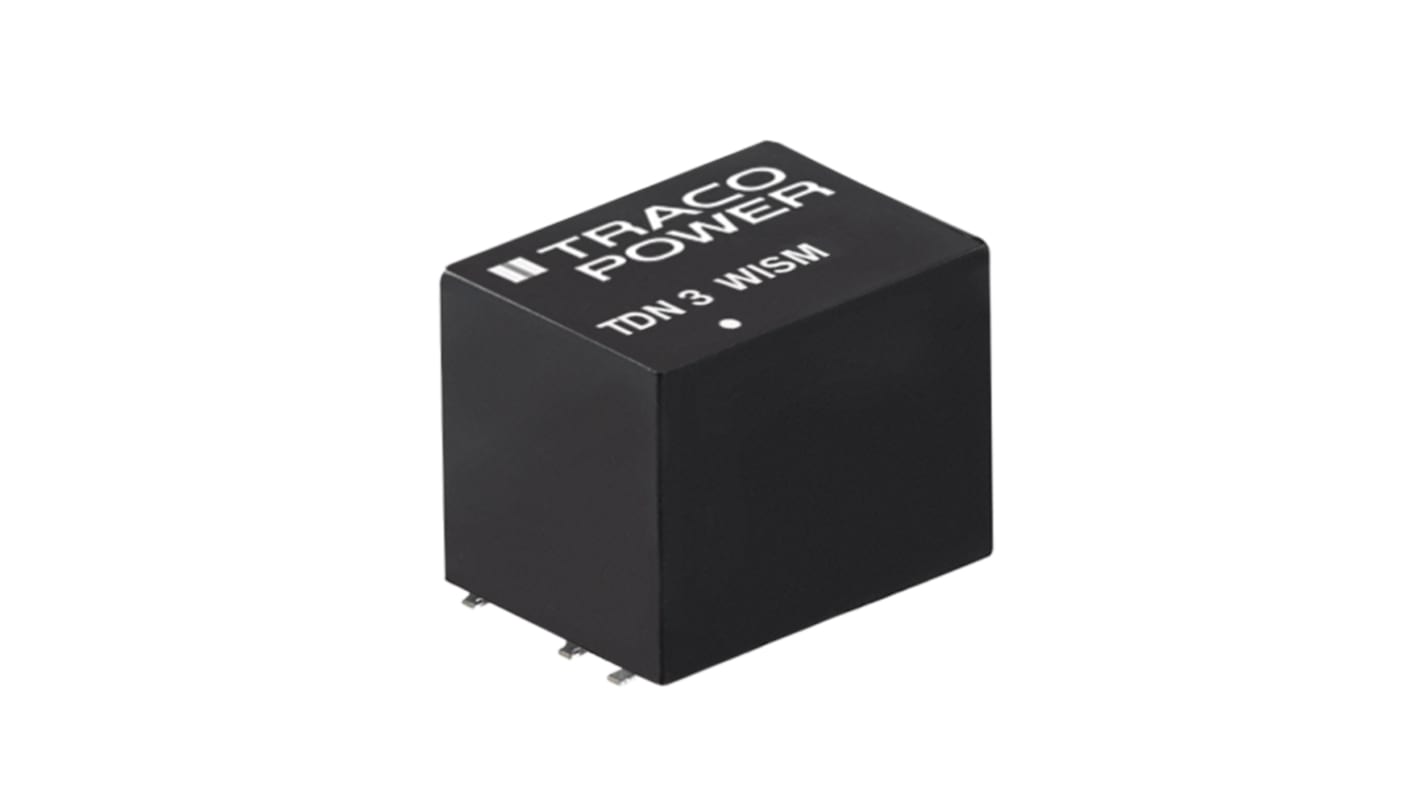

TRACOPOWER TDN 3WISM DC-DC Converter, 5V dc/ 600mA Output, 9 → 36 V dc Input, 3W, Surface Mount, +70°C Max Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£208.79

(exc. VAT)

£250.55

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 05 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 - 4£208.79£20.879
5 - 9£202.53£20.253
10 - 24£196.27£19.627
25 - 49£187.91£18.791
50 +£179.56£17.956

*price indicative

RS Stock No.:
141-8380
Mfr. Part No.:
TDN 3-2411WISM
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

5V dc

Input Voltage Range

9 → 36 V dc

Power Rating

3W

Input Voltage Nominal

24 V dc

Output Current

600mA

Mounting Type

Surface Mount

Isolated

Yes

Number of Outputs

1

Package

SMD

Isolation Voltage

1.6kV dc

Width

9.1mm

Depth

9.9mm

Length

14.2mm

Series

TDN 3WISM

Railway Approved

No

Load Regulation

1%

Efficiency

80%

Medical Approved

No

Standards Met

EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-810F

Maximum Temperature

+70°C

Minimum Temperature

-40°C

TRACOPOWER TDN 3WISM Series DC-DC Converter, 5V DC Output Voltage, 3W Power Rating - TDN 3-2411WISM


This DC-DC converter efficiently transforms a wide input voltage range into a stable 5 V output, making it suitable for numerous electronic applications. Its compact surface mount design ensures consistent performance in varied environments. The enhanced efficiency and temperature resilience contribute to its practicality in automation and electrical systems.

Features & Benefits


• Delivers a stable 5V output with a current of 600 mA
• Isolated design promotes safe operation across circuits
• High efficiency rating of 80% minimises energy loss
• Compact form factor ideal for surface mounting in limited spaces
• Operates effectively within an extensive temperature range

Applications


• Powers industrial automation equipment
• Applicable in portable electronic devices
• Suitable for medical and telecommunications devices
• Utilised in outdoor electronic systems requiring isolation
• Employed in automotive electronics for stable voltage supply

What is the maximum input voltage the converter can handle?


The converter can manage an input voltage of up to 36V.

How does the isolation feature benefit my circuit design?


Isolation helps prevent noise and voltage spikes from impacting other components.

Is there a specific mounting method required for installation?


It is designed for surface mounting, simplifying the installation process.
