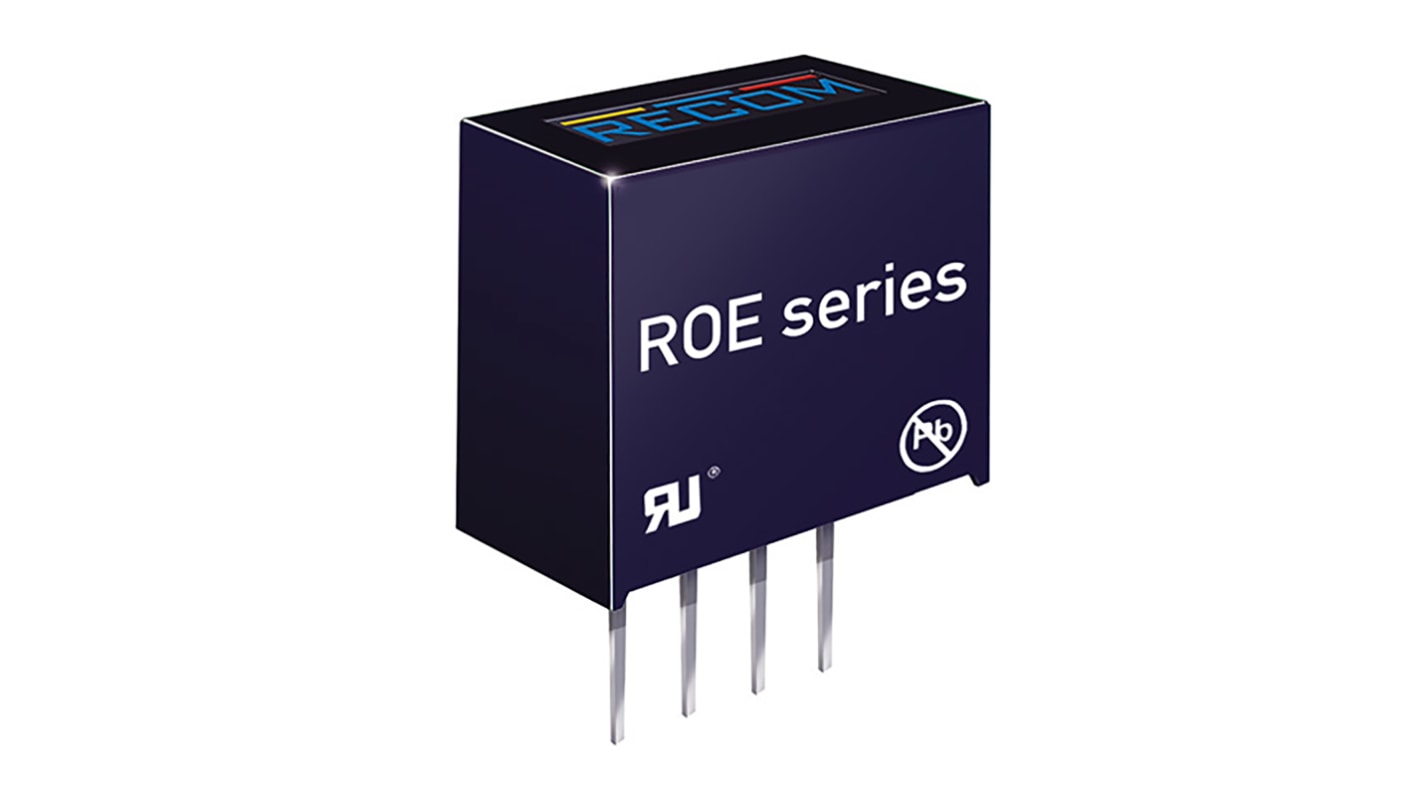

Recom ROE DC-DC Converter, 5V dc/ 200mA Output, 2.97 → 3.63 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 139-2970
- Mfr. Part No.:
- ROE-3.305S
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£3.46
(exc. VAT)
£4.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 26 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £3.46 |
5 - 9 | £3.36 |
10 - 24 | £3.25 |
25 - 49 | £3.15 |
50 + | £3.05 |
*price indicative
- RS Stock No.:
- 139-2970
- Mfr. Part No.:
- ROE-3.305S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 5V dc | |
Input Voltage Range | 2.97 → 3.63 V dc | |
Power Rating | 1W | |
Input Voltage Nominal | 3.3 V dc | |
Output Current | 200mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | SIP 4 | |
Isolation Voltage | 1kV dc | |
Width | 6mm | |
Depth | 10mm | |
Length | 11.5mm | |
Series | ROE | |
Load Regulation | 0.15 | |
Efficiency | 79% | |
Standards Met | CSA C22.2 No. 60950-1-07, cULus E358085 Recognised, EMI EN 55022 Class A, EMI EN 55022 Class B, UL 60950-1 2nd Edition | |
Maximum Temperature | +85°C | |
Minimum Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 5V dc | ||
Input Voltage Range 2.97 → 3.63 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 3.3 V dc | ||
Output Current 200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 4 | ||
Isolation Voltage 1kV dc | ||
Width 6mm | ||
Depth 10mm | ||
Length 11.5mm | ||
Series ROE | ||
Load Regulation 0.15 | ||
Efficiency 79% | ||
Standards Met CSA C22.2 No. 60950-1-07, cULus E358085 Recognised, EMI EN 55022 Class A, EMI EN 55022 Class B, UL 60950-1 2nd Edition | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
RECOM DC-DC Converter, 470μF Maximum Capacitive Load, 79% Efficiency - ROE Series - ROE-3.305S
Want to take control of safe power distribution to your PCB-linked parts? Choose this DC-DC converter from RECOM. It boosts 3V DC supply signals to deliver a steady 5V output and prevent damage to your appliances caused by undervoltage. The unit also creates an isolation barrier of 1kV DC between the input and output, safeguarding you from shocks in the event of a sudden power spike. Thanks to its non-conductive plastic housing, you can rest assured this converter is built to handle the rigours that come with rugged industrial settings.
Features & Benefits
• Low maximum capacitive load value of 470μF ensures smooth startup and prevents irregular shutdowns, for optimal performance
• Power rating of 1W for use in light-duty applications
• Glitch-free operation in a wide temperature range between -40°C and +85°C
• Compact dimensions of 11.5 (L) x 6.0 (W) x 10.0mm (H) for space-efficient installation in confined setups
• Power rating of 1W for use in light-duty applications
• Glitch-free operation in a wide temperature range between -40°C and +85°C
• Compact dimensions of 11.5 (L) x 6.0 (W) x 10.0mm (H) for space-efficient installation in confined setups
Applications
• Measurement and instrumentation
• Communication industry
• Electronics workshops
• Communication industry
• Electronics workshops
How many units come in a pack?
A pack contains 42 DC-DC converters, so you'll have enough for lots of jobs.
