Recom RTC2 DC/DC Converter, 5V dc/ 400 mA, 36V dc Input, 18V Input 2 W, Surface, 100 °C Max Temp -40 °C Min Temp Surface

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 30 units)*

£311.56

(exc. VAT)

£373.87

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£311.56£10.385
5 - 9£302.22£10.074
10 - 24£292.87£9.762
25 - 49£283.52£9.451
50 +£274.18£9.139

*price indicative

RS Stock No.:
139-2826
Mfr. Part No.:
RTC2-2405SRW
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage 1

5V dc

Product Type

DC/DC Converter

Maximum Input Voltage

36V dc

Minimum Input Voltage

18V

Output Current 1

400mA

Mount Type

Surface

Input Ratio

2:1

Number of Outputs

1

MTBF

2145000h

Isolation Voltage

3kV dc

Maximum Output Power

2W

Package Type

Surface Mount

Length

14.99mm

Depth

9.6mm

Series

RTC2

Width

14.22mm

Standards/Approvals

No

Maximum Operating Temperature

100°C

Efficiency

80%

Minimum Operating Temperature

-40°C

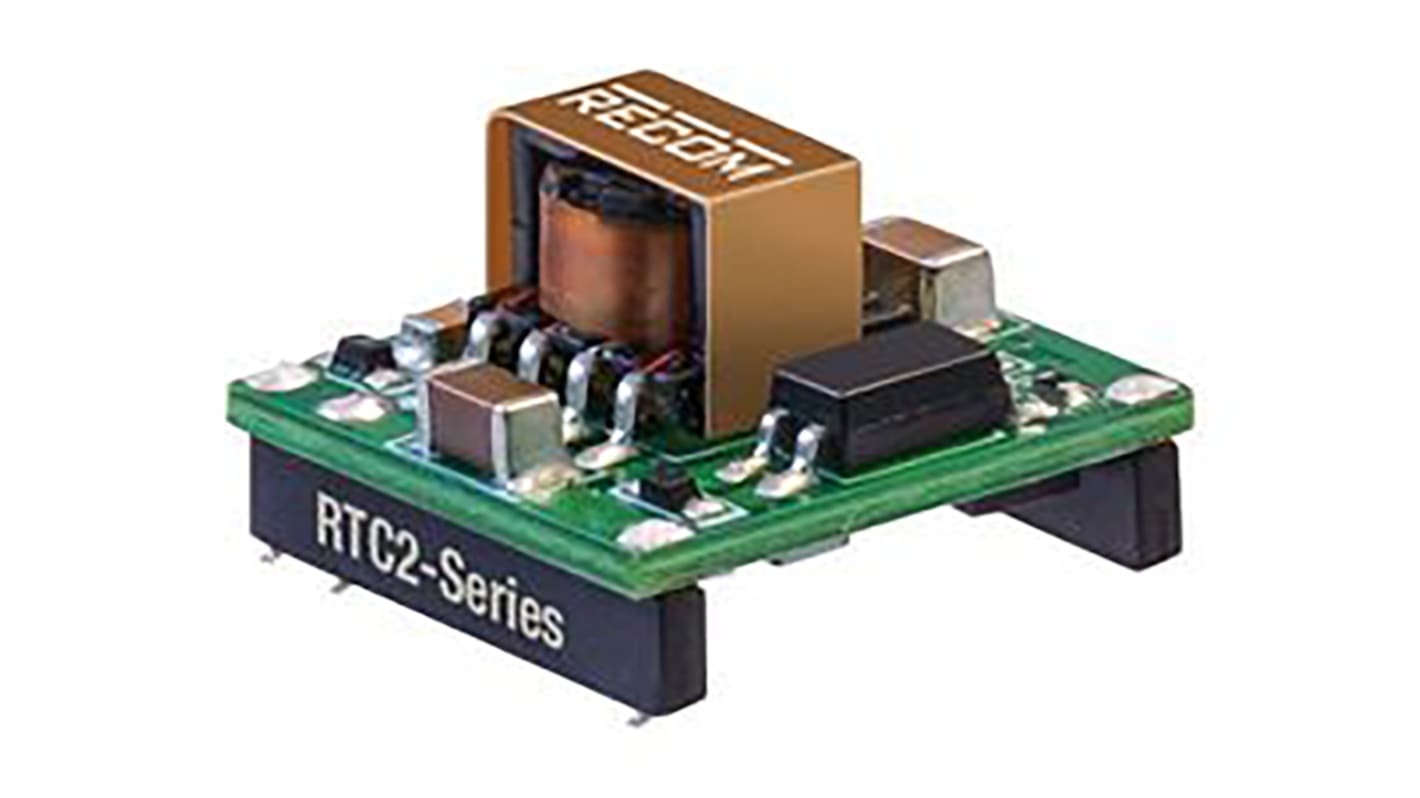

Recom RTC2 Series 2W Isolated DC-DC Converter


The RTC2 is a 2 W, open-frame, SMD, isolated DC-DC converter with 2:1 input voltage range. It is

available with 5 V (4.5 V - 9 V) or 24 V (18 V -36 V) inputs and offers a single 5 V output which is short circuit

protected. The output is tightly regulated with less than 50mV output ripple. There is no minimum load

requirement. The operating temperature is -40°C up to 100°C (with derating). Isolation is 3k V dc /1k V ac

(Basic Isolation) and a control pin is fitted as standard. The converter is IEC/EN62368-1 certified and is

10/10 RoHS-conform. Class B EMC conformity can be reached with a simple external LC filter.

Features and Benefits


• 2:1 Wide Input Range Regulated Converter

• 2 W In Compact SMD Package

• -40°C To +85°C Operating Temperature @ Full Load

• High 3k V dc/1 Second (1k V ac/1 Minute) Basic Isolation

• Continuous Short Circuit Protection

• IEC/EN62368-1 CB Report (pending)
