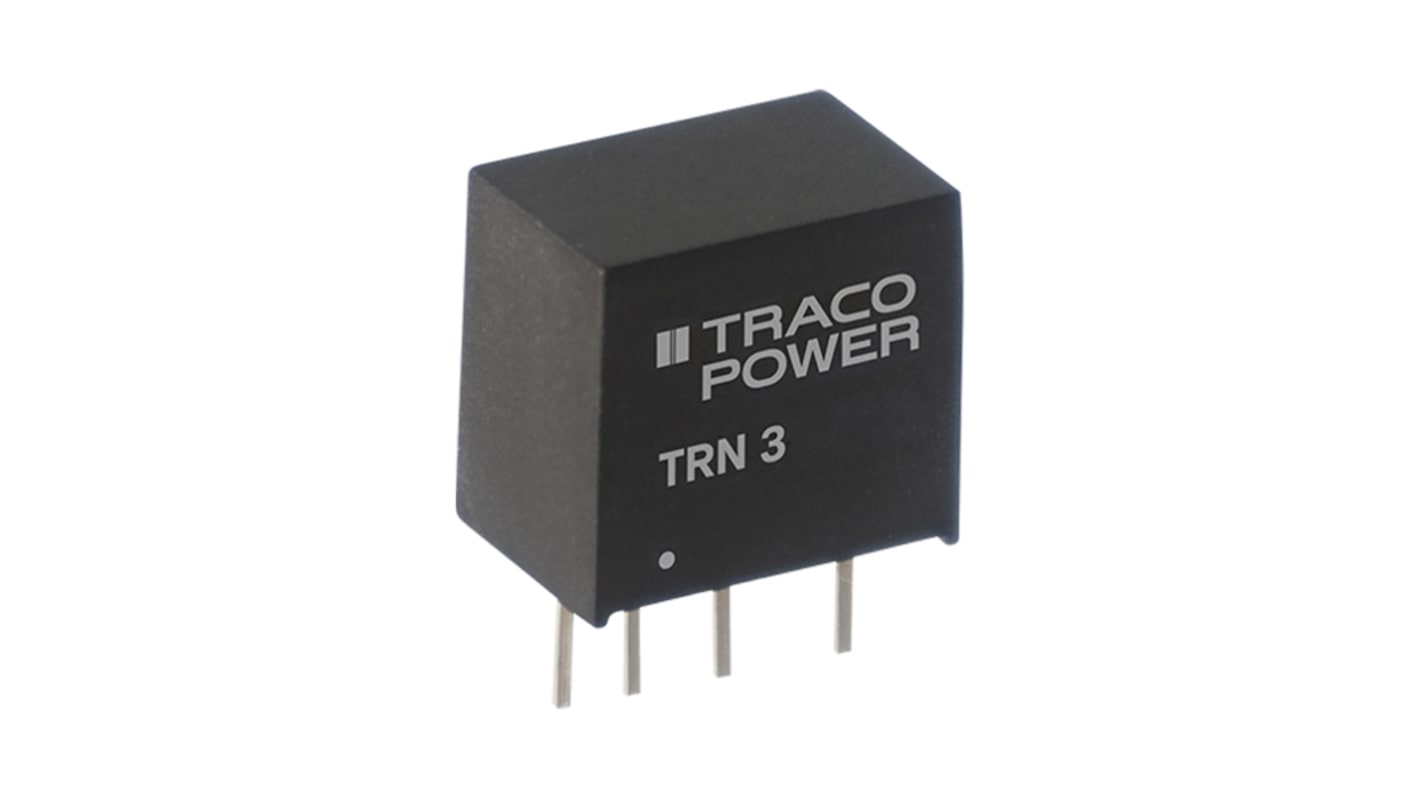

TRACOPOWER TRN 3 DC-DC Converter, ±12V dc/ ±125mA Output, 9 → 18 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 137-2883
- Mfr. Part No.:
- TRN 3-1222
- Brand:
- TRACOPOWER
Available to back order for despatch 08/10/2024
Added
Price 1 Tube of 10
£187.67
(exc. VAT)
£225.20
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £187.67 | £18.767 |
| 5 - 9 | £182.04 | £18.204 |
| 10 - 24 | £176.41 | £17.641 |
| 25 - 49 | £168.90 | £16.89 |
| 50 + | £161.40 | £16.14 |
| *price indicative | ||
- RS Stock No.:
- 137-2883
- Mfr. Part No.:
- TRN 3-1222
- Brand:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The TRN 3 Series comprises 3 Watt fully regulated, high performance DC/DC converters. They come in a compact cubical package of only 1.00 cm3. Full load operation is reliable up tp 85°C environment temperature. With 1’600 VDCI/Oisolation. voltage, and short current protection they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (2:1) and minimum load is not required. The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test voltage (60 s) of 1600 VDC.
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 9 → 18 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 12 V dc |
| Output Current | ±125mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | SIP |
| Isolation Voltage | 1.6kV dc |
| Length | 11.9mm |
| Width | 11mm |
| Depth | 7.7mm |
| Series | TRN 3 |
| Load Regulation | 0.01 |
| Efficiency | 82% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
