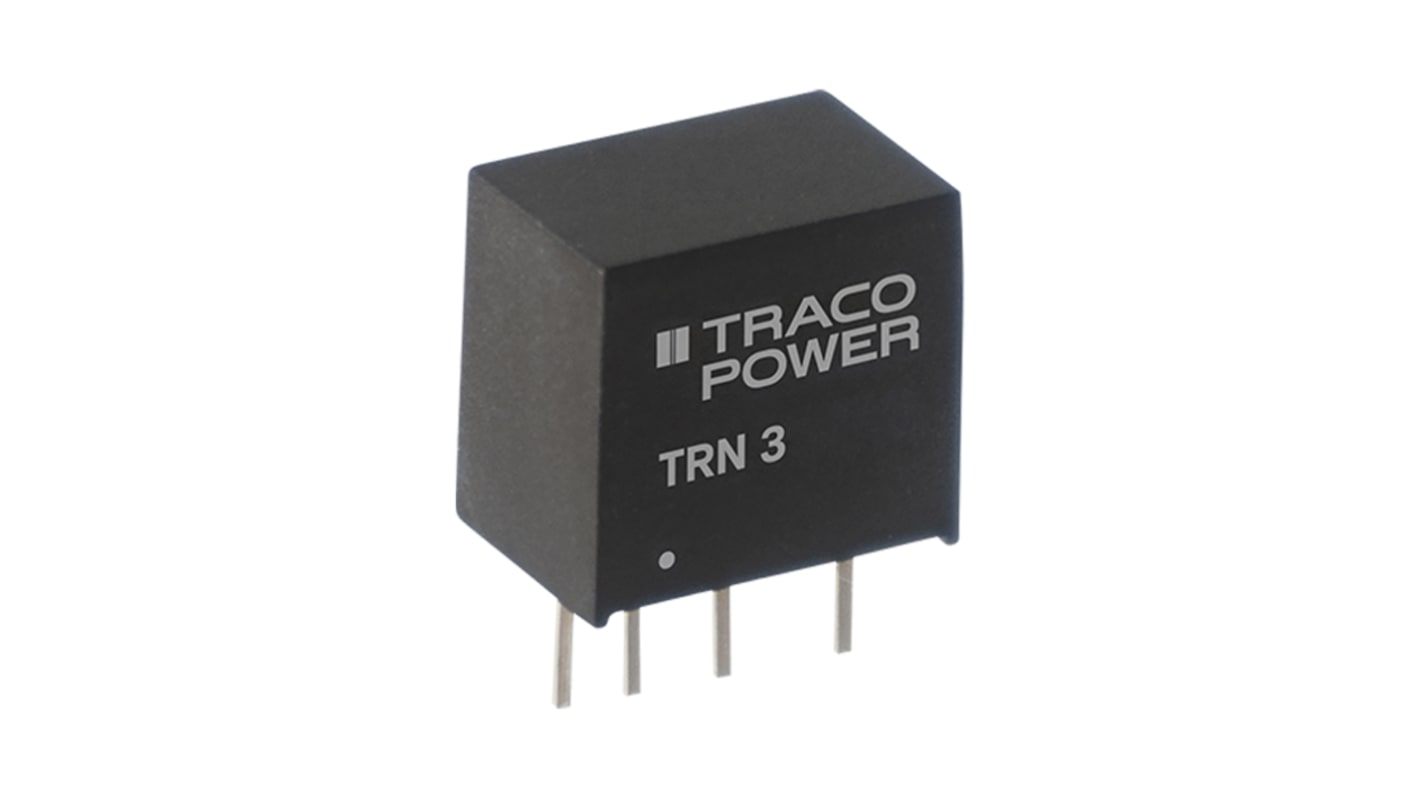

TRACOPOWER TRN 3 DC-DC Converter, ±5V dc/ ±300mA Output, 9 → 18 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 137-2882
- Mfr. Part No.:
- TRN 3-1221
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£195.02
(exc. VAT)
£234.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £195.02 | £19.502 |
| 5 - 9 | £189.18 | £18.918 |
| 10 - 24 | £183.32 | £18.332 |
| 25 - 49 | £175.52 | £17.552 |
| 50 + | £167.71 | £16.771 |
*price indicative
- RS Stock No.:
- 137-2882
- Mfr. Part No.:
- TRN 3-1221
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±5V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 3W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | ±300mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP | |
| Isolation Voltage | 1.6kV dc | |
| Length | 11.9mm | |
| Width | 11mm | |
| Depth | 7.7mm | |
| Series | TRN 3 | |
| Load Regulation | 0.01 | |
| Efficiency | 78% | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±5V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 12 V dc | ||
Output Current ±300mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 1.6kV dc | ||
Length 11.9mm | ||
Width 11mm | ||
Depth 7.7mm | ||
Series TRN 3 | ||
Load Regulation 0.01 | ||
Efficiency 78% | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
