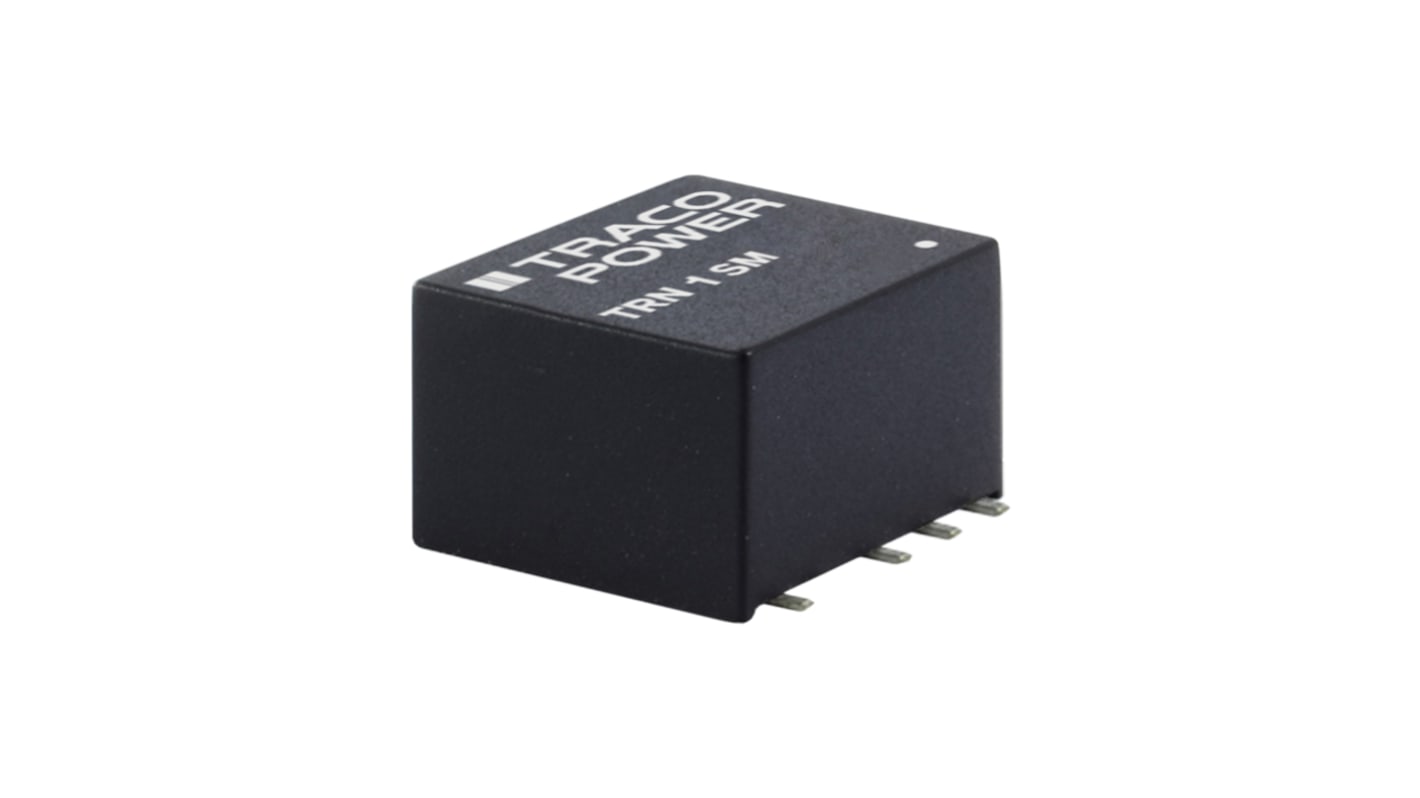

TRACOPOWER TRN 1SM DC-DC Converter, 3.3V dc/ 300mA Output, 36 → 75 V dc Input, 1W, Surface Mount, +90°C Max Temp
- RS Stock No.:
- 137-2859
- Mfr. Part No.:
- TRN 1-4810SM
- Brand:
- TRACOPOWER
Available to back order for despatch 03/12/2024
Price 1 Tube of 10
£105.45
(exc. VAT)
£126.54
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £105.45 | £10.545 |
5 - 9 | £102.29 | £10.229 |
10 - 24 | £99.12 | £9.912 |
25 - 49 | £94.91 | £9.491 |
50 + | £90.69 | £9.069 |
*price indicative
- RS Stock No.:
- 137-2859
- Mfr. Part No.:
- TRN 1-4810SM
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The TRN 1 Series comprises 1 Watt fully regulated, high performance DC/DC converters. They come in a compact cubical package of only 1.00 cm3. Full load operation is reliable up tp 90°C environment temperature. With 1600 VDC I/O isolation voltage, and short current protection they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (2:1) and minimum load is not required. The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test voltage (60 s) of 1600 VDC.
Specifications
Attribute | Value |
---|---|
Output Voltage | 3.3V dc |
Input Voltage Range | 36 → 75 V dc |
Power Rating | 1W |
Input Voltage Nominal | 48 V dc |
Output Current | 300mA |
Mounting Type | Surface Mount |
Isolated | Yes |
Number of Outputs | 1 |
Package | SMD |
Isolation Voltage | 1.6kV dc |
Length | 11.9mm |
Depth | 7.6mm |
Width | 11.3mm |
Series | TRN 1SM |
Load Regulation | 0.01 |
Efficiency | 77% |
Minimum Temperature | -40°C |
Maximum Temperature | +90°C |
