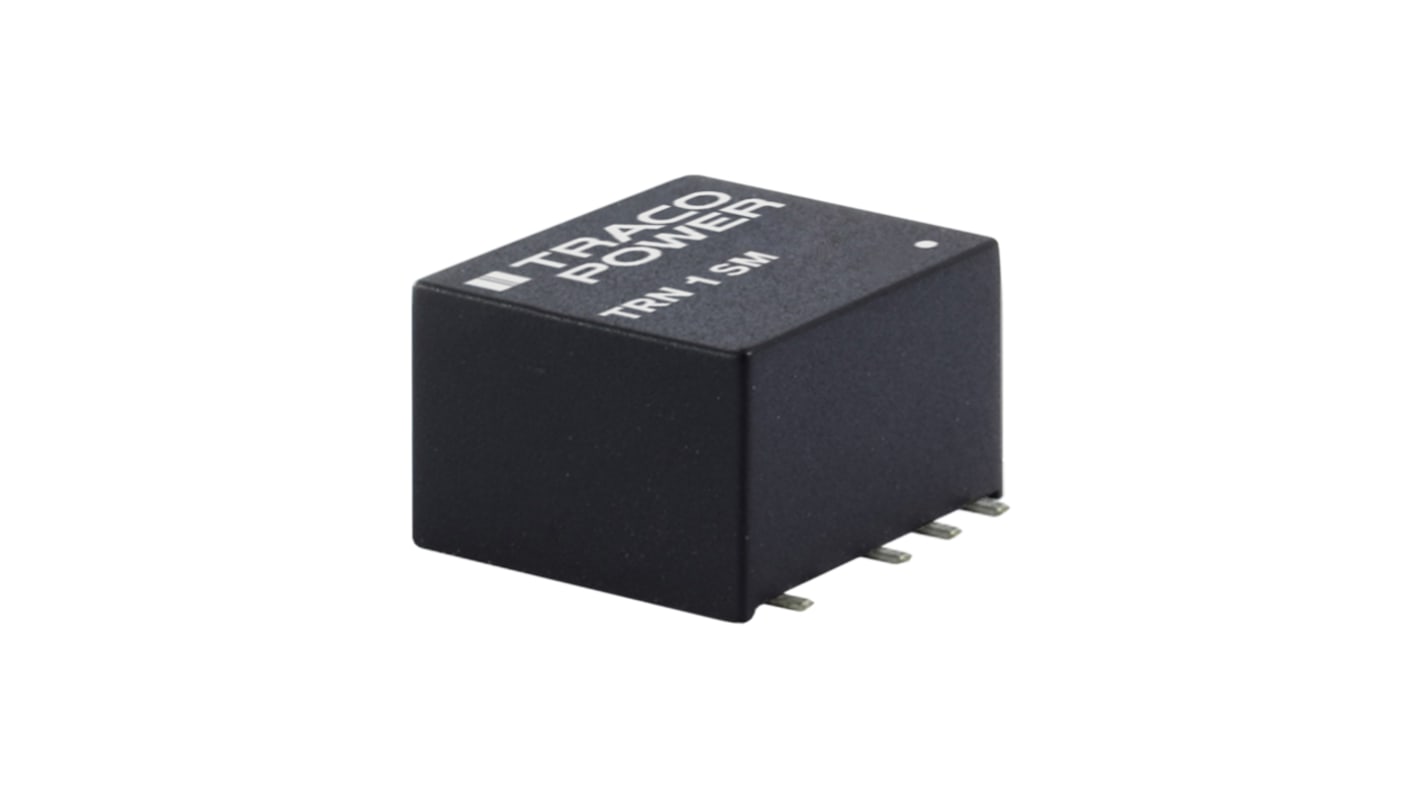

TRACOPOWER TRN 1SM DC/DC Converter, 3.3V dc/ 300 mA, 36V dc Input, 9V Input 1 W, Surface, 90 °C Max Temp -40 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£110.80

(exc. VAT)

£132.96

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Tube(s)
Per Tube
Per unit*
1 - 4£110.80£11.08
5 - 9£107.47£10.747
10 - 24£104.14£10.414
25 - 49£99.73£9.973
50 +£95.29£9.529

*price indicative

RS Stock No.:
137-2850
Mfr. Part No.:
TRN 1-2410SM
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

3.3V dc

Product Type

DC/DC Converter

Maximum Input Voltage

36V dc

Minimum Input Voltage

9V

Output Current 1

300mA

Mount Type

Surface

Input Ratio

1:12

MTBF

7400000h

Number of Outputs

1

Number of Pins

7

Isolation Voltage

1.6kV dc

Maximum Output Power

1W

Package Type

Surface Mount

Depth

7.6mm

Series

TRN 1SM

Width

11.3mm

Standards/Approvals

No

Length

11.9mm

Maximum Operating Temperature

90°C

Efficiency

77%

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW

TRACOPOWER TRN 1SM Series DC-DC Converter, 3.3V Voltage Rating, 300mA Output Current - TRN 1-2410SM


This isolated DC-DC converter is designed for efficient power conversion in compact applications. The device offers a nominal output of 3.3V DC from an input voltage range of 18 to 36V DC. With dimensions of 11.9mm in length, 11.3mm in width, and a height of 7.6mm, it is suitable for surface mount assembly, making it ideal for space-constrained environments.

Features & Benefits


• High efficiency of 77% reduces energy loss

• 1.6kV DC isolation enhances safety in applications

• Operates within -40°C to +90°C without derating shows reliability

• Short circuit protection ensures reliable operation

• Fully regulated outputs provide a stable voltage supply

• Compact SMD package optimises board space usage

Applications


• Ideal for telecommunications equipment requiring voltage conversion

• Suitable for industrial automation with high efficiency needs

• Used in instrumentation devices requiring a reliable power supply

What is the maximum input voltage for optimal performance?


The optimal input voltage for this device ranges from 18 to 36V DC, ensuring reliable output performance.

How does the product manage thermal performance in extreme conditions?


It effectively operates within an extensive temperature range, maintaining functionality from -40°C up to +90°C without derating.

What safety standards does this converter meet?


It is designed to comply with IEC/EN/UL 62368-1, ensuring compatibility with multimedia and IT equipment.

What features ensure the reliability of the device in critical applications?


The converter includes short circuit protection and offers functional isolation to enhance operational reliability and user safety.
