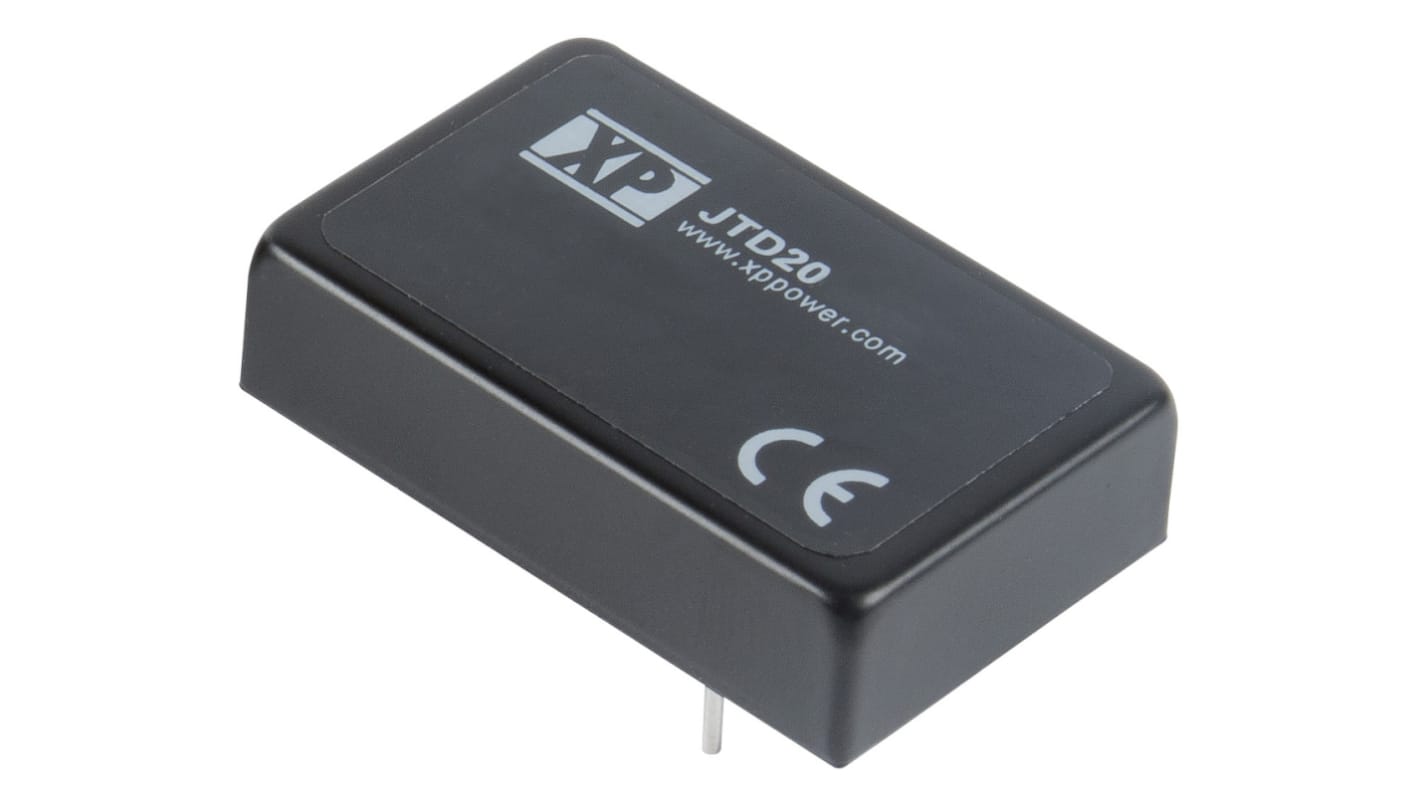

XP Power JTD20 DC-DC Converter, 5V dc/ 4A Output, 18 → 75 V dc Input, 20W, Through Hole, +100°C Max Temp -40°C

RS Stock No.:: 135-7964
Mfr. Part No.:: JTD2048S05
Brand:: XP Power

XP Power JTD20 DC-DC Converter, 5V dc/ 4A Output, 18 → 75 V dc Input, 20W, Through Hole, +100°C Max Temp -40°C

Available to back order for despatch 22/10/2024

Price 1 Tube of 10

£209.06

(exc. VAT)

£250.87

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 +	£209.06	£20.906
*price indicative

RS Stock No.:: 135-7964
Mfr. Part No.:: JTD2048S05
Brand:: XP Power

JTD20_Datasheet

RS Stock No.:: 135-7964
Mfr. Part No.:: JTD2048S05
Brand:: XP Power

JTD20_Datasheet

Attribute	Value
Output Voltage	5V dc
Input Voltage Range	18 → 75 V dc
Power Rating	20W
Input Voltage Nominal	48 V dc
Output Current	4A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Output Voltage Adjustment Range	±10 (Minimum)%
Package	1.6 x 1 in
Isolation Voltage	1.6kV dc
Depth	10.4mm
Width	25.4mm
Length	40.64mm
Series	JTD20
Load Regulation	0.005
Standards Met	EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
Maximum Temperature	+100°C
Minimum Temperature	-40°C

Attribute	Value
Output Voltage	5V dc
Input Voltage Range	18 → 75 V dc
Power Rating	20W
Input Voltage Nominal	48 V dc
Output Current	4A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Output Voltage Adjustment Range	±10 (Minimum)%
Package	1.6 x 1 in
Isolation Voltage	1.6kV dc
Depth	10.4mm
Width	25.4mm
Length	40.64mm
Series	JTD20
Load Regulation	0.005
Standards Met	EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F
Maximum Temperature	+100°C
Minimum Temperature	-40°C

XP Power JTD20 DC-DC Converter, 5V dc/ 4A Output, 18 → 75 V dc Input, 20W, Through Hole, +100°C Max Temp -40°C

XP Power - JTD20 Series of Isolated DC-DC Converters

Features and Benefits

XP Power - JTD20 Series of Isolated DC-DC Converters

Features and Benefits
