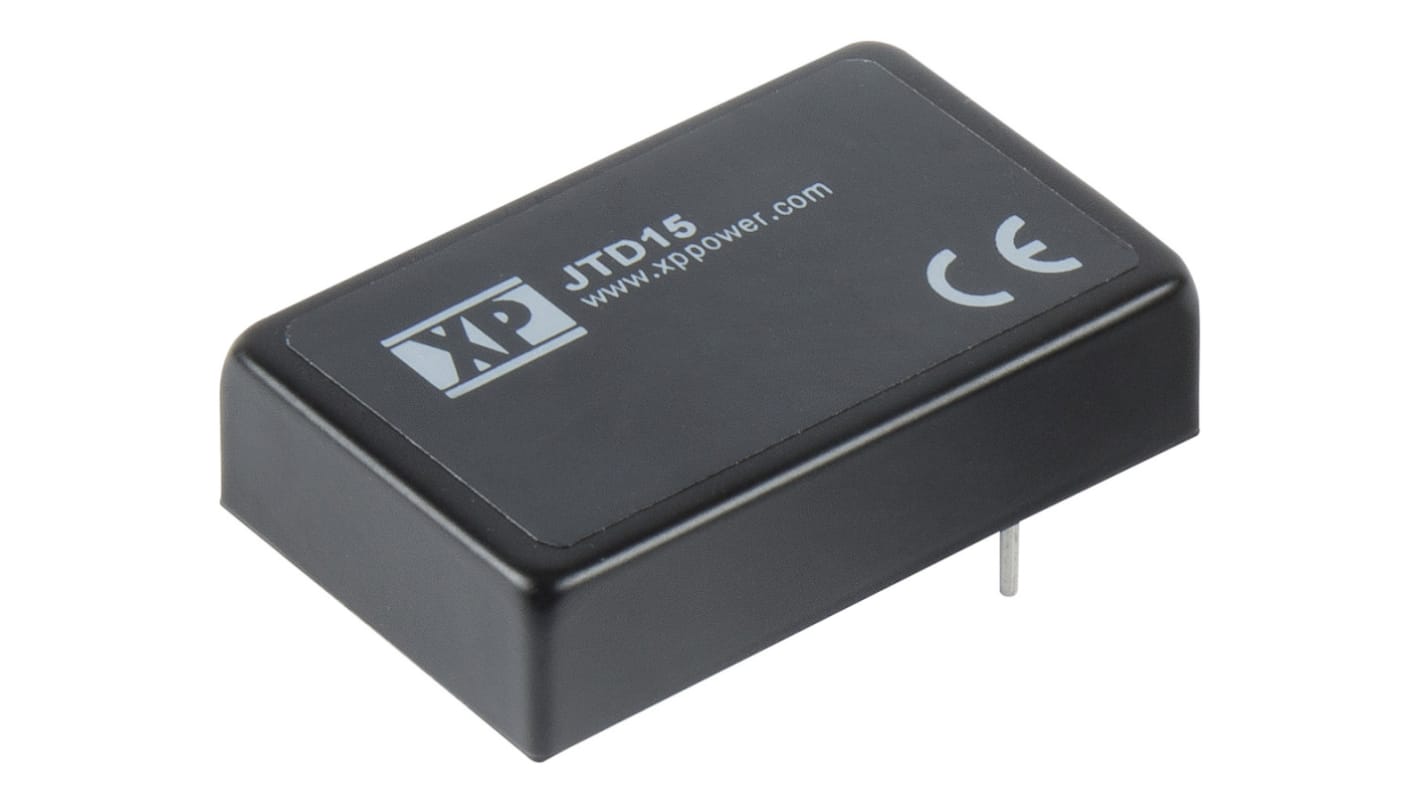

XP Power JTD15 DC/DC Converter, 15V dc/ 500 mA, 36V dc Input, 9V Input 15 W, Through Hole, 100 °C Max Temp -40 °C Min

RS Stock No.:: 135-7946
Mfr. Part No.:: JTD1524D15
Brand:: XP Power

XP Power JTD15 DC/DC Converter, 15V dc/ 500 mA, 36V dc Input, 9V Input 15 W, Through Hole, 100 °C Max Temp -40 °C Min

Subtotal (1 tube of 10 units)*

£272.38

(exc. VAT)

£326.86

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

1 unit(s) shipping from 23 September 2026
Plus 1 unit(s) shipping from 30 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)	Per Tube	Per unit*
1 +	£272.38	£27.238

*price indicative

RS Stock No.:: 135-7946
Mfr. Part No.:: JTD1524D15
Brand:: XP Power

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	XP Power
	Output Voltage 1	15V dc
	Product Type	DC/DC Converter
	Maximum Input Voltage	36V dc
	Minimum Input Voltage	9V
	Output Current 1	500mA
	Output Current 2	500mA
	Mount Type	Through Hole
	Input Ratio	4:1
	Number of Outputs	2
	Output Voltage Adjustment Range	±10 %
	Isolation Voltage	1.6kV dc
	Package Type	1.6 x 1 in
	Maximum Output Power	15W
	Width	25.4mm
	Standards/Approvals	No
	Series	JTD15
	Length	40.64mm
	Depth	10.4mm
	Efficiency	86%
	Maximum Operating Temperature	100°C
	Minimum Operating Temperature	-40°C

	Select all
	Brand XP Power
	Output Voltage 1 15V dc
	Product Type DC/DC Converter
	Maximum Input Voltage 36V dc
	Minimum Input Voltage 9V
	Output Current 1 500mA
	Output Current 2 500mA
	Mount Type Through Hole
	Input Ratio 4:1
	Number of Outputs 2
	Output Voltage Adjustment Range ±10 %
	Isolation Voltage 1.6kV dc
	Package Type 1.6 x 1 in
	Maximum Output Power 15W
	Width 25.4mm
	Standards/Approvals No
	Series JTD15
	Length 40.64mm
	Depth 10.4mm
	Efficiency 86%
	Maximum Operating Temperature 100°C
	Minimum Operating Temperature -40°C

JTD15_Datasheet

COO (Country of Origin):: TW

XP Power JTD15 Series of Isolated DC-DC Converters

The JTD15 Series from XP Power offers a highly reliable range of regulated single and dual output, 15 W, isolated DC-DC converters. The series features a wide 4:1 input range, 1.6" x 1" footprint with full load at 65°C Ambient. These Compact DC-DC converters also attribute 1600 VDC in isolation, a wide -40°C to +100°C operating temperature range and remote On/Off. All JTD15 converters come with a 3-Year Warranty.

Features and Benefits

• Regulated single and dual outputs

• Wide 4:1 input range

• 1.6" x 1" Footprint

• Remote On/Off

• Full load at 65°C ambient

• -40°C to +100°C operation

• 3-Year Warranty

XP Power - Isolated DC-DC Converters
