TRACOPOWER TEQ 300WIR DC/DC Converter, 28V dc/, 75V dc Input 10.8 mA, 18V Input, Chassis Mount, 80 °C Max Temp -40 °C
- RS Stock No.:
- 135-3720
- Mfr. Part No.:
- TEQ 300-4816WIR
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£618.64
(exc. VAT)
£742.37
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £618.64 |
| 5 - 9 | £600.07 |
| 10 - 24 | £581.51 |
| 25 - 49 | £556.77 |
| 50 + | £532.02 |
*price indicative
- RS Stock No.:
- 135-3720
- Mfr. Part No.:
- TEQ 300-4816WIR
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 28V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 75V dc | |
| Minimum Input Voltage | 18V | |
| Output Current 1 | 10.8mA | |
| Mount Type | Chassis Mount | |
| MTBF | 150000h | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 22.4/33.6 V dc | |
| Isolation Voltage | 3kV dc | |
| Number of Pins | 12 | |
| Input Ratio | 1:6 | |
| Maximum Output Power | 300W | |
| Series | TEQ 300WIR | |
| Standards/Approvals | No | |
| Width | 101.9mm | |
| Length | 152.4mm | |
| Depth | 38.6mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Efficiency | 91% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 28V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 75V dc | ||
Minimum Input Voltage 18V | ||
Output Current 1 10.8mA | ||
Mount Type Chassis Mount | ||
MTBF 150000h | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 22.4/33.6 V dc | ||
Isolation Voltage 3kV dc | ||
Number of Pins 12 | ||
Input Ratio 1:6 | ||
Maximum Output Power 300W | ||
Series TEQ 300WIR | ||
Standards/Approvals No | ||
Width 101.9mm | ||
Length 152.4mm | ||
Depth 38.6mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Efficiency 91% | ||

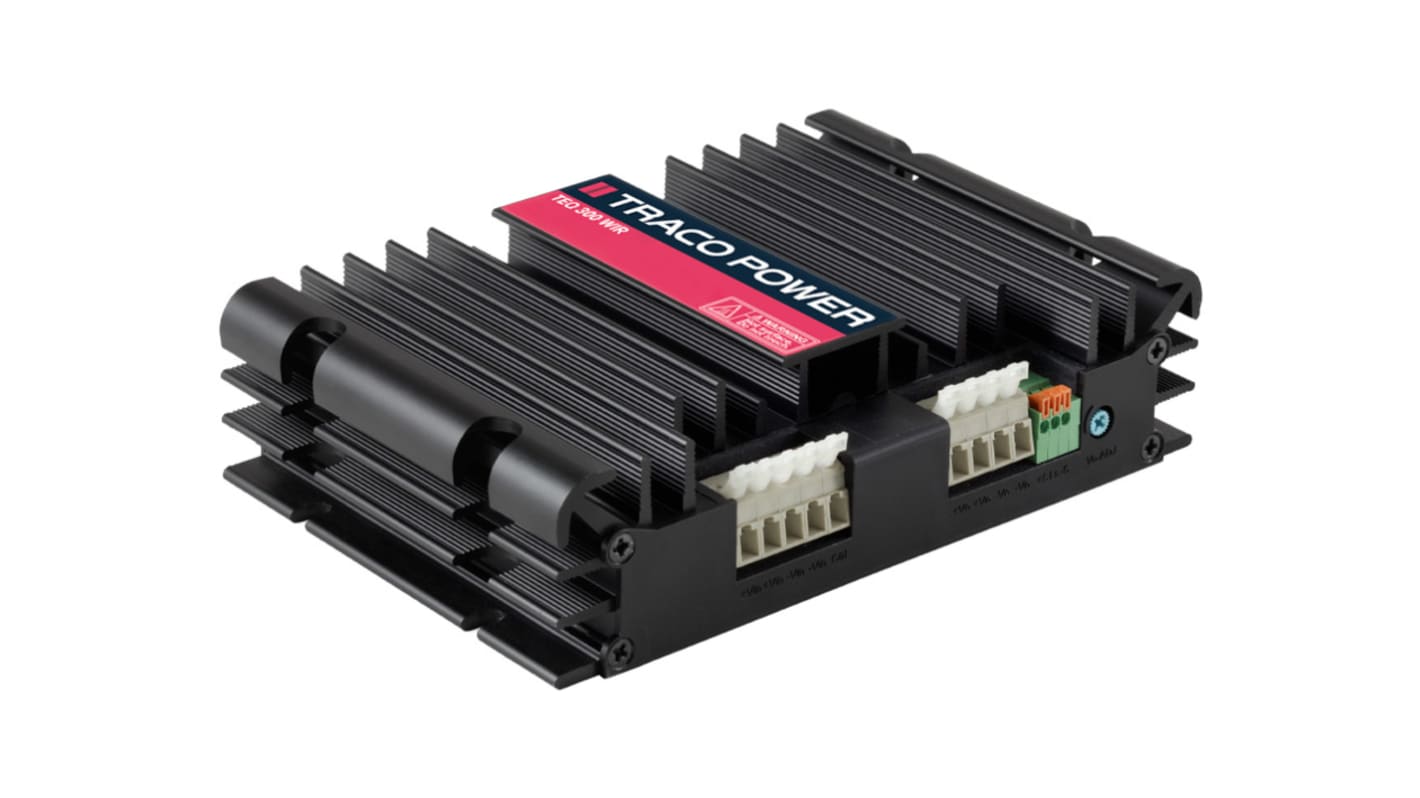

TRACOPOWER TEQ 300WIR Series DC-DC Converter, 28V DC Output Voltage, 300W Power Rating - TEQ 300-4816WIR
This DC-DC converter delivers an output voltage of 28V DC with a power rating of 300W, designed for a range of applications. It is built for durability and reliability, particularly in environments subject to temperature fluctuations and physical stresses like vibration. This converter serves as a functional solution for sectors such as industrial automation, electronics, and railway systems.
Features & Benefits
• Isolated design promotes safety and reliability in sensitive applications
• High efficiency up to 91% minimises cooling requirements
• Ultra-wide input voltage range enables compatibility with various power sources
• Adjustable output voltage accommodates different load needs
• Chassis mountable for straightforward integration into existing systems
• Approved for use in railways, ensuring robust performance in transport applications
Applications
• Power distribution within railway systems
• Suitable for battery-operated equipment requiring voltage regulation
• Well-suited for high-efficiency power needs in industrial automation
• Suitable for machinery that necessitates temperature stability
What is the maximum current output this converter can provide?
The output current can reach up to 10.8A, making it apt for applications requiring substantial power delivery.
How does the temperature range impact performance?
The converter functions effectively between -40°C and +80°C, maintaining operation in extreme environmental conditions without significant power derating.
Is it possible to connect multiple units in parallel?
Yes, up to three units can be connected in parallel for power sharing in applications needing higher current.
What protective features does this unit offer?
It includes automatic short circuit protection and overvoltage protection to shield connected devices from electrical faults.
How does input voltage fluctuation affect output performance?
The device maintains output voltage regulation, even with input voltage variations within the specified range of 18 to 75V DC.
