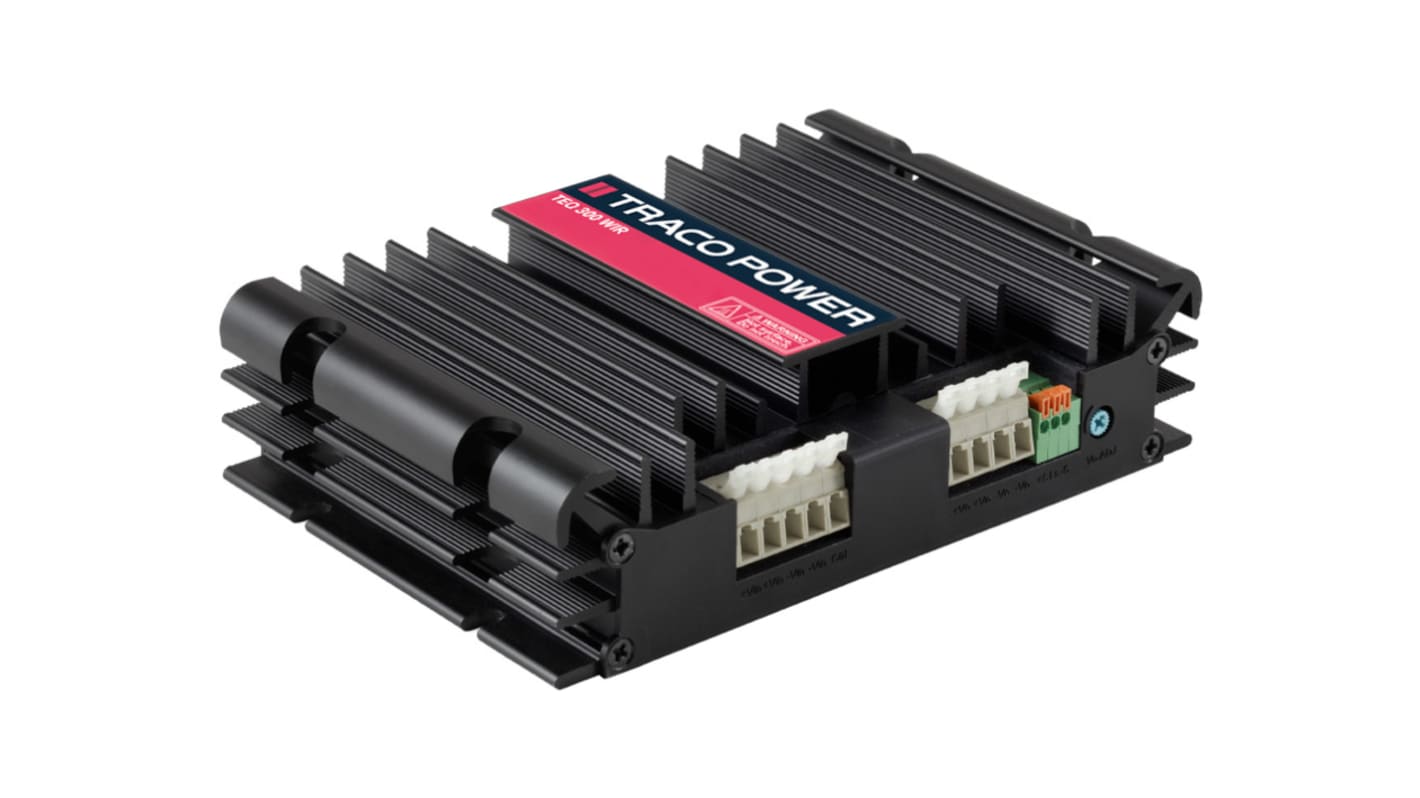

TRACOPOWER TEQ 300WIR DC-DC Converter, 48V dc/ 6.3A Output, 43 → 160 V dc Input, 300W, Chassis Mount, +80°C Max

RS Stock No.:: 135-3725
Mfr. Part No.:: TEQ 300-7218WIR
Brand:: TRACOPOWER

TRACOPOWER TEQ 300WIR DC-DC Converter, 48V dc/ 6.3A Output, 43 → 160 V dc Input, 300W, Chassis Mount, +80°C Max

Bulk discount available

Price Each

£628.65

(exc. VAT)

£754.38

(inc. VAT)

Available to back order for despatch 16/05/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 4	£628.65
5 - 9	£609.79
10 - 24	£590.93
25 - 49	£565.79
50 +	£540.64

RS Stock No.:: 135-3725
Mfr. Part No.:: TEQ 300-7218WIR
Brand:: TRACOPOWER

TEQ 300-7218WIR Datasheet
Industrial Power Solutions Catalogue
Railway Solutions Catalogue
Selection Guide

Attribute	Value
Output Voltage	48V dc
Input Voltage Range	43 → 160 V dc
Power Rating	300W
Input Voltage Nominal	110 V dc
Output Current	6.3A
Mounting Type	Chassis Mount
Isolated	Yes
Number of Outputs	1
Isolation Voltage	3kV dc
Length	152.4mm
Depth	38.6mm
Width	101.6mm
Railway Approved	Yes
Series	TEQ 300WIR
Load Regulation	0.005
Minimum Temperature	-40°C
Standards Met	EN 50155, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61373, IEC/EN 60950-1, MIL-HDBK-217F, MIL-STD-810F, UL 60950-1
Maximum Temperature	+80°C

TRACOPOWER TEQ 300WIR DC-DC Converter, 48V dc/ 6.3A Output, 43 → 160 V dc Input, 300W, Chassis Mount, +80°C Max

FREE delivery for orders over £50.00

Traco - TEQ Series 300 W Isolated DC-DC Converters

Features and Benefits
