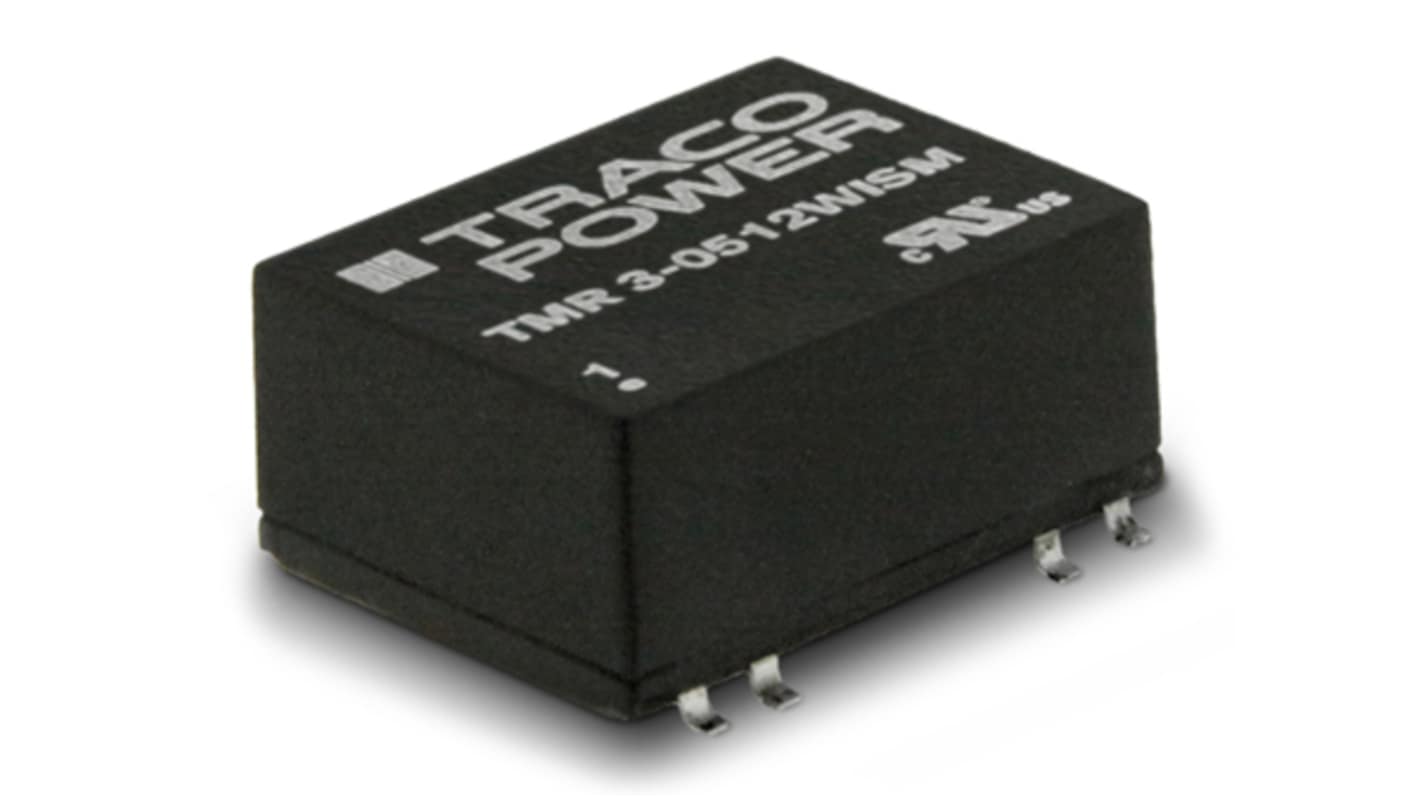

TRACOPOWER TMR 3 WISM Isolated DC-DC Converter, 5V dc/ 600 mA, 12V Input, 4.5V Input 3 W, PCB, 80 °C Max Temp -40 °C Min

View all DC-DC Converters
Unavailable
RS will no longer stock this product.
RS Stock No.:
135-2462
Mfr. Part No.:
TMR 3-0511WISM
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

5V dc

Product Type

Isolated DC-DC Converter

Minimum Input Voltage

4.5V

Maximum Input Voltage

12V

Output Current 1

600mA

Mount Type

PCB

Input Ratio

4:1

MTBF

5090000h

Number of Outputs

1

Isolation Voltage

1.5kV dc

Maximum Output Power

3W

Package Type

Surface Mount

Standards/Approvals

No

Series

TMR 3 WISM

Width

14.9mm

Length

19mm

Depth

8.7mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

80°C

Efficiency

81%

Traco SMD 3 Watt DC-DC Converters - TMR 3WISM Series


From TRACO POWER, a range of 3 W SMD DC-DC converters. The TMR 3 series have an ultra-wide 4:1 input and fully regulated outputs. Supplied in a compact SMD package the DC—DC converters are perfect for applications where valuable board space is limited. Capable of operating up to 65°C environment temperature at full load or up to 80°C with a 50% load derating.

Features and Benefits


• I/O-isolation 1’500 V dc

• Ultra-wide 4:1 Input 4.5 V dc to 12 V dc, 9 V dc to 36 V dc and 18 V dc to 75 V dc

• -40°C to +80°C operating temperature range

• Fully regulated outputs

• Remote On/Off

Applications


• Communication equipment

• Instrumentation

• Industrial electronics
