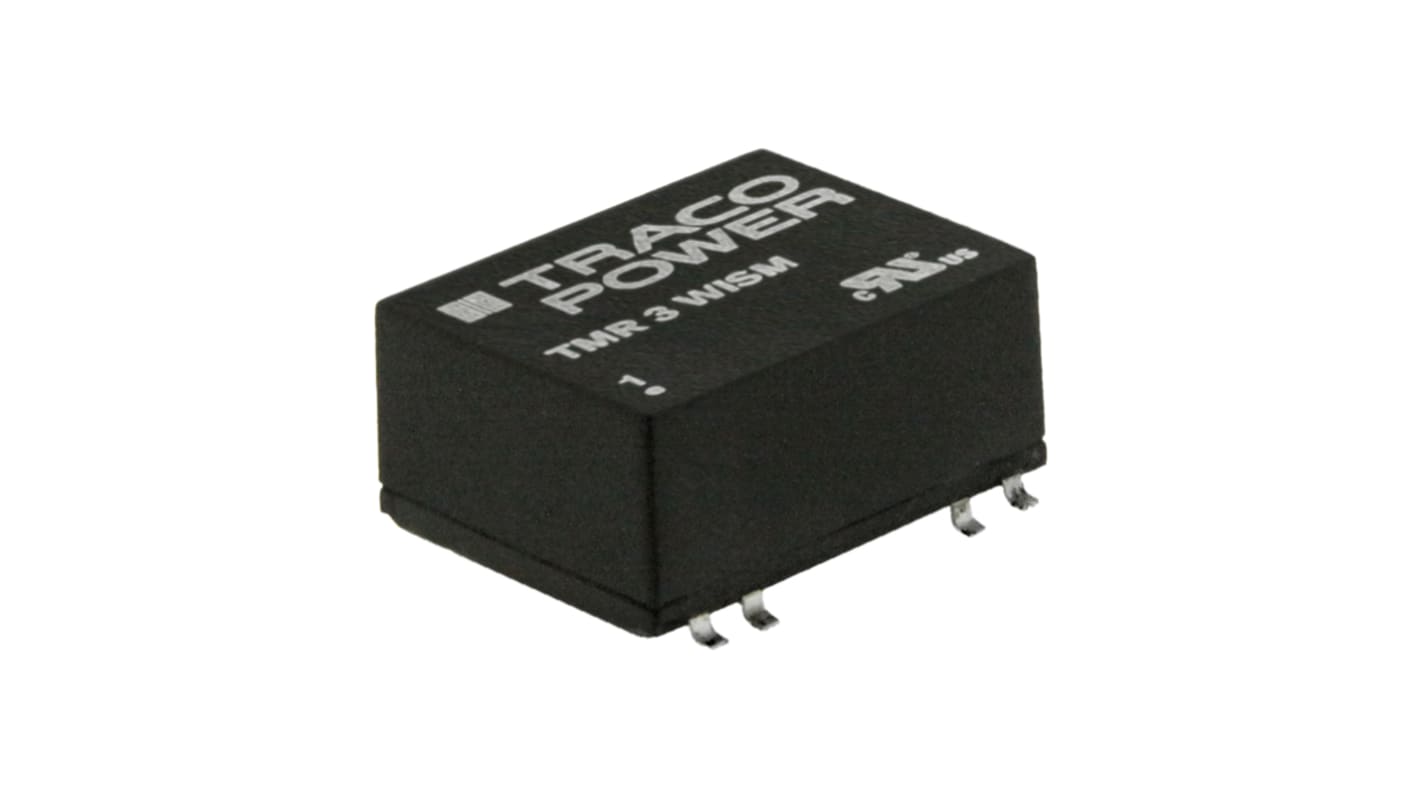

TRACOPOWER TMR 3 WISM DC-DC Converter, 24V dc/ 125mA Output, 4.5 → 75 V dc Input, 3W, PCB Mount, +85°C Max Temp
- RS Stock No.:
- 135-1481
- Mfr. Part No.:
- TMR 3-0515WISM
- Brand:
- TRACOPOWER
Available to back order for despatch 22/10/2024
Price 1 Tube of 10
£186.79
(exc. VAT)
£224.15
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £186.79 | £18.679 |
5 - 9 | £181.19 | £18.119 |
10 - 24 | £175.58 | £17.558 |
25 - 49 | £168.11 | £16.811 |
50 + | £160.64 | £16.064 |
*price indicative
- RS Stock No.:
- 135-1481
- Mfr. Part No.:
- TMR 3-0515WISM
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
Product Details
Traco SMD 3 Watt DC-DC Converters - TMR 3WISM Series
From TRACO POWER, a range of 3 W SMD DC-DC converters. The TMR 3 series have an ultra-wide 4:1 input and fully regulated outputs. Supplied in a compact SMD package the DC—DC converters are perfect for applications where valuable board space is limited. Capable of operating up to 65°C environment temperature at full load or up to 80°C with a 50% load derating.
Features and Benefits
• I/O-isolation 1500 V dc
• Ultra-wide 4:1 Input 4.5 V dc to 12 V dc, 9 V dc to 36 V dc and 18 V dc to 75 V dc
• -40°C to +80°C operating temperature range
• Fully regulated outputs
• Remote On/Off
• Ultra-wide 4:1 Input 4.5 V dc to 12 V dc, 9 V dc to 36 V dc and 18 V dc to 75 V dc
• -40°C to +80°C operating temperature range
• Fully regulated outputs
• Remote On/Off
Applications
• Communication equipment
• Instrumentation
• Industrial electronics
• Instrumentation
• Industrial electronics
Traco SMD 2 and 3 Watt DC-DC Converters
Specifications
Attribute | Value |
---|---|
Output Voltage | 24V dc |
Input Voltage Range | 4.5 → 75 V dc |
Power Rating | 3W |
Input Voltage Nominal | 5 V dc |
Output Current | 125mA |
Mounting Type | PCB Mount |
Isolated | Yes |
Number of Outputs | 1 |
Package | DIP |
Isolation Voltage | 1.5kV dc |
Length | 19mm |
Width | 14.9mm |
Depth | 8.7mm |
Series | TMR 3 WISM |
Standards Met | IEC/UL 60950-1 |
Medical Approved | Yes |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
