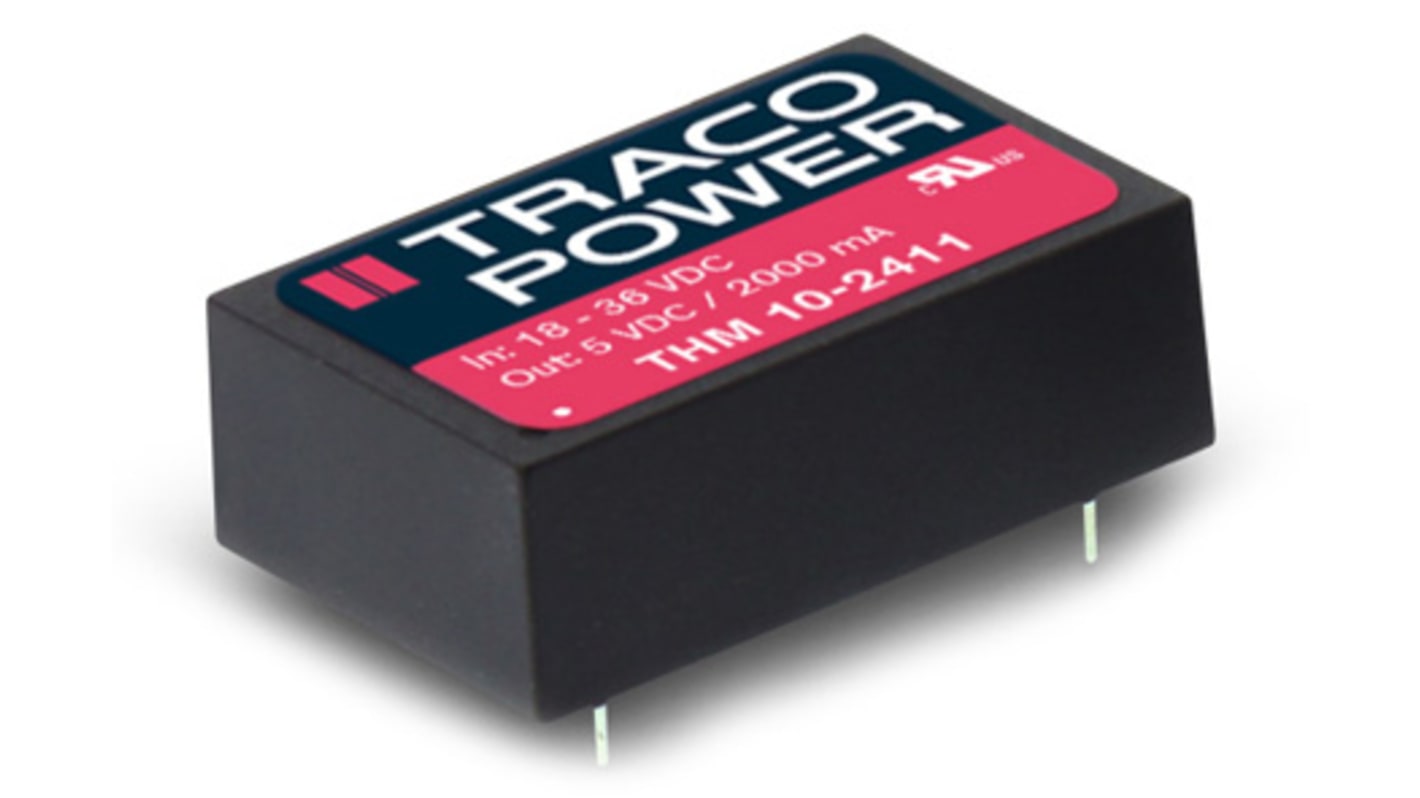

TRACOPOWER THM 10 DC-DC Converter, 24V dc/ 416mA Output, 18 → 36 V dc Input, 10W, PCB Mount, +90°C Max Temp
- RS Stock No.:
- 135-0949
- Distrelec Article No.:
- 301-04-713
- Mfr. Part No.:
- THM 10-2415
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£41.73
(exc. VAT)
£50.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £41.73 |
| 5 - 9 | £40.48 |
| 10 - 24 | £39.22 |
| 25 - 49 | £37.55 |
| 50 + | £35.87 |
*price indicative
- RS Stock No.:
- 135-0949
- Distrelec Article No.:
- 301-04-713
- Mfr. Part No.:
- THM 10-2415
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 24V dc | |
| Input Voltage Range | 18 → 36 V dc | |
| Power Rating | 10W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 416mA | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP-24 | |
| Isolation Voltage | 5kV ac | |
| Length | 31.8mm | |
| Depth | 10.2mm | |
| Width | 20.3mm | |
| Series | THM 10 | |
| Load Regulation | 0.002 | |
| Medical Approved | Yes | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +90°C | |
| Standards Met | ANSI/AAMI ES60601-1:2005/(R)2012, CB Scheme IEC 606010-1, cULus Recognised, ES60601-1, IEC/EN 60601-1 | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 24V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 10W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 416mA | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP-24 | ||
Isolation Voltage 5kV ac | ||
Length 31.8mm | ||
Depth 10.2mm | ||
Width 20.3mm | ||
Series THM 10 | ||
Load Regulation 0.002 | ||
Medical Approved Yes | ||
Minimum Temperature -40°C | ||
Maximum Temperature +90°C | ||
Standards Met ANSI/AAMI ES60601-1:2005/(R)2012, CB Scheme IEC 606010-1, cULus Recognised, ES60601-1, IEC/EN 60601-1 | ||
