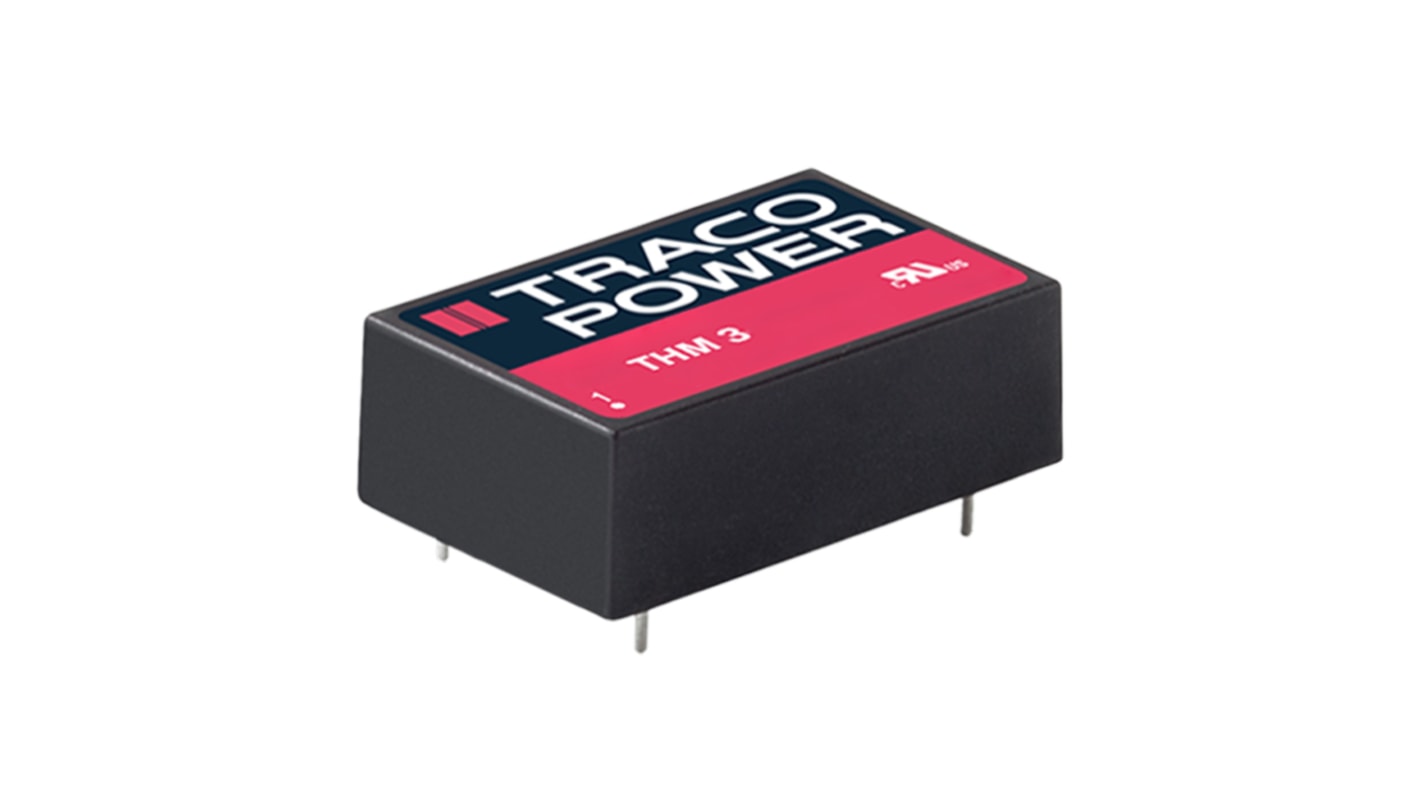

TRACOPOWER THM 3 DC-DC Converter, 12V dc/ 250mA Output, 4.5 → 9 V dc Input, 3W, PCB Mount, +90°C Max Temp -40°C
- RS Stock No.:
- 135-0519
- Mfr. Part No.:
- THM 3-0512
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£356.20
(exc. VAT)
£427.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 18 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £356.20 | £35.62 |
| 5 - 9 | £345.52 | £34.552 |
| 10 - 24 | £334.84 | £33.484 |
| 25 - 49 | £320.59 | £32.059 |
| 50 + | £306.33 | £30.633 |
*price indicative
- RS Stock No.:
- 135-0519
- Mfr. Part No.:
- THM 3-0512
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 4.5 → 9 V dc | |
| Power Rating | 3W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 250mA | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | DIP-24 | |
| Isolation Voltage | 5kV ac | |
| Depth | 10.2mm | |
| Length | 31.8mm | |
| Width | 20.3mm | |
| Series | THM 3 | |
| Load Regulation | 0.002 | |
| Maximum Temperature | +90°C | |
| Medical Approved | Yes | |
| Efficiency | 85.5% | |
| Standards Met | ANSI/AAMI ES60601-1:2005/(R)2012, CB Scheme IEC 606010-1, cULus Recognised, ES60601-1, IEC/EN 60601-1 | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 4.5 → 9 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 250mA | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP-24 | ||
Isolation Voltage 5kV ac | ||
Depth 10.2mm | ||
Length 31.8mm | ||
Width 20.3mm | ||
Series THM 3 | ||
Load Regulation 0.002 | ||
Maximum Temperature +90°C | ||
Medical Approved Yes | ||
Efficiency 85.5% | ||
Standards Met ANSI/AAMI ES60601-1:2005/(R)2012, CB Scheme IEC 606010-1, cULus Recognised, ES60601-1, IEC/EN 60601-1 | ||
Minimum Temperature -40°C | ||
