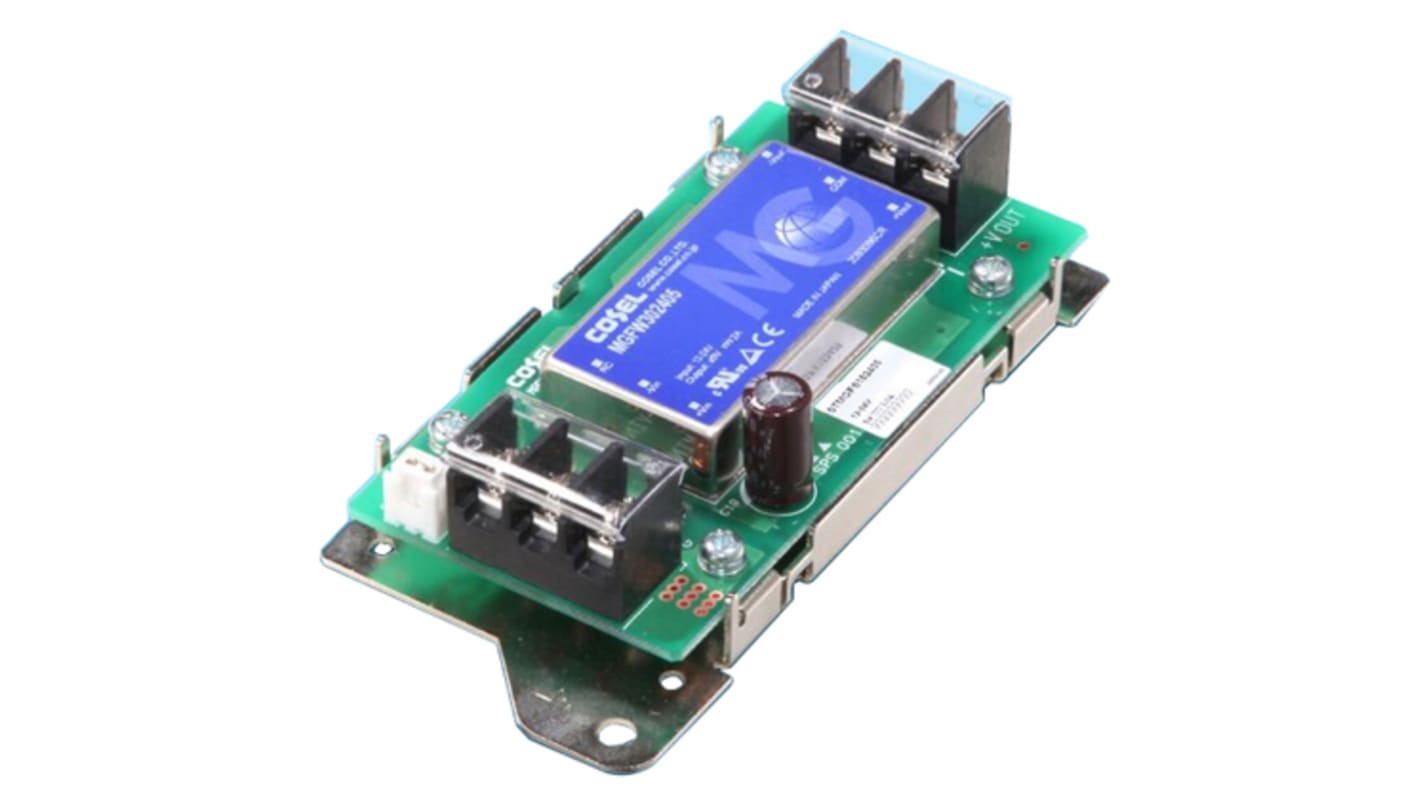

Cosel STMGFW DC-DC Converter, ±5V dc/ 2A Output, 18 → 76 V dc Input, 20W, PCB Mount, +70°C Max Temp -20°C Min
- RS Stock No.:
- 132-7518
- Mfr. Part No.:
- STMGFW304805
- Brand:
- Cosel
Bulk discount available
Subtotal (1 unit)*
£76.61
(exc. VAT)
£91.93
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 19 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £76.61 |
| 5 - 9 | £74.30 |
| 10 - 24 | £72.78 |
| 25 - 49 | £71.25 |
| 50 + | £69.72 |
*price indicative
- RS Stock No.:
- 132-7518
- Mfr. Part No.:
- STMGFW304805
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage | ±5V dc | |
| Input Voltage Range | 18 → 76 V dc | |
| Power Rating | 20W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 2A | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | 4.93 → 5.24V | |
| Isolation Voltage | 500V dc | |
| Width | 52mm | |
| Depth | 27mm | |
| Length | 117mm | |
| Series | STMGFW | |
| Load Regulation | 500mV | |
| Maximum Temperature | +70°C | |
| Minimum Temperature | -20°C | |
| Efficiency | 85% | |
| Standards Met | CE, cUL, EN 60950-1 Complies, UL 60950-1 | |
Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage ±5V dc | ||
Input Voltage Range 18 → 76 V dc | ||
Power Rating 20W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 2A | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range 4.93 → 5.24V | ||
Isolation Voltage 500V dc | ||
Width 52mm | ||
Depth 27mm | ||
Length 117mm | ||
Series STMGFW | ||
Load Regulation 500mV | ||
Maximum Temperature +70°C | ||
Minimum Temperature -20°C | ||
Efficiency 85% | ||
Standards Met CE, cUL, EN 60950-1 Complies, UL 60950-1 | ||
- COO (Country of Origin):
- JP
STMGFW Series
The STMGFW Series of Cosel DC-DC converters provide a massive range of power ratings and output voltages making them versatile and suitable for many applications. The STMGFW converters are highly reliable power supplies offering great quality. 5 Year Warranty
Features and Benefits
• Isolated unit type DC-DC converter
• Wide input voltage DC9-36V/DC18-76V
• Available connector interface (optional)
• Available case cover (optional)
• Available DIN Rail attachment (optional)
• Built in Overcurrent protection (recovery automatically)
• Built in Overvoltage protection (for STMG30)
• Built in Remote ON/OFF
• Built in Output voltage adjustment (for single output, ±10%)
• Wide input voltage DC9-36V/DC18-76V
• Available connector interface (optional)
• Available case cover (optional)
• Available DIN Rail attachment (optional)
• Built in Overcurrent protection (recovery automatically)
• Built in Overvoltage protection (for STMG30)
• Built in Remote ON/OFF
• Built in Output voltage adjustment (for single output, ±10%)
