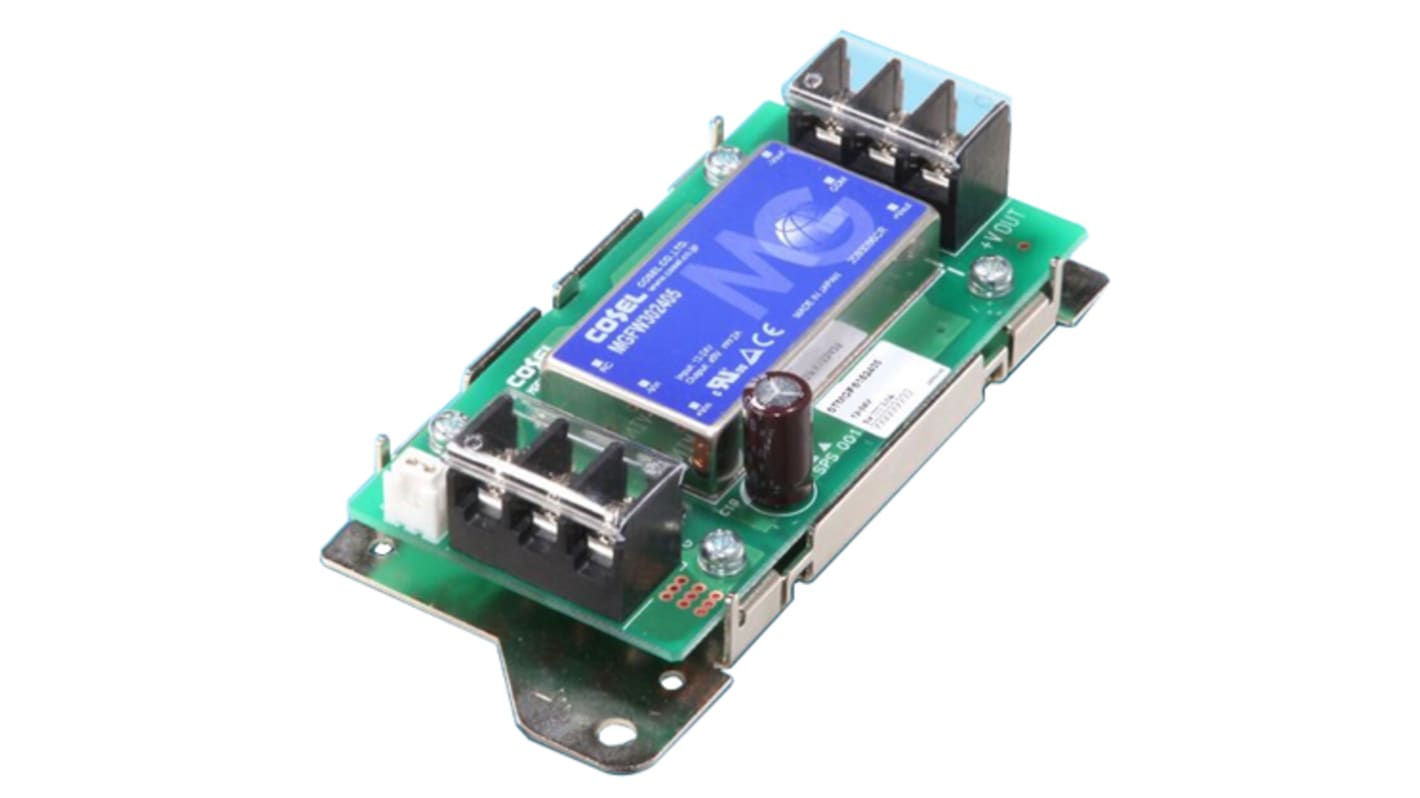

Cosel STMGFW DC/DC Converter, 10V, 5 V/ 2 A, 36V dc Input, 9V Input 20 W, PCB, 70 °C Max Temp 70 °C Min Temp
- RS Stock No.:
- 132-7515
- Mfr. Part No.:
- STMGFW302405
- Brand:
- Cosel
Bulk discount available
Subtotal (1 unit)*
£60.31
(exc. VAT)
£72.37
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 24 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £60.31 |
| 5 - 9 | £58.50 |
| 10 - 24 | £57.30 |
| 25 - 49 | £56.09 |
| 50 + | £54.87 |
*price indicative
- RS Stock No.:
- 132-7515
- Mfr. Part No.:
- STMGFW302405
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 10, 5V | |
| Minimum Input Voltage | 9V | |
| Maximum Input Voltage | 36V dc | |
| Output Current 1 | 2A | |
| Output Voltage 2 | -10V | |
| Mount Type | PCB | |
| Number of Outputs | 2 | |
| Ripple and Noise | 200mV | |
| Output Voltage Adjustment Range | 4.93 to 5.24 V | |
| Isolation Voltage | 500V dc | |
| Maximum Output Power | 20W | |
| Length | 117mm | |
| Depth | 27mm | |
| Standards/Approvals | CE, UL, RoHS, EN, cUL, CSA | |
| Weight | 140g | |
| Width | 52mm | |
| Series | STMGFW | |
| Efficiency | 85% | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | 70°C | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Product Type DC/DC Converter | ||
Output Voltage 1 10, 5V | ||
Minimum Input Voltage 9V | ||
Maximum Input Voltage 36V dc | ||
Output Current 1 2A | ||
Output Voltage 2 -10V | ||
Mount Type PCB | ||
Number of Outputs 2 | ||
Ripple and Noise 200mV | ||
Output Voltage Adjustment Range 4.93 to 5.24 V | ||
Isolation Voltage 500V dc | ||
Maximum Output Power 20W | ||
Length 117mm | ||
Depth 27mm | ||
Standards/Approvals CE, UL, RoHS, EN, cUL, CSA | ||
Weight 140g | ||
Width 52mm | ||
Series STMGFW | ||
Efficiency 85% | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature 70°C | ||
- COO (Country of Origin):
- JP
STMGFW Series
The STMGFW Series of Cosel DC-DC converters provide a massive range of power ratings and output voltages making them versatile and suitable for many applications. The STMGFW converters are highly reliable power supplies offering great quality. 5 Year Warranty
Features and Benefits
• Isolated unit type DC-DC converter
• Wide input voltage DC9-36V/DC18-76V
• Available connector interface (optional)
• Available case cover (optional)
• Available DIN Rail attachment (optional)
• Built in Overcurrent protection (recovery automatically)
• Built in Overvoltage protection (for STMG30)
• Built in Remote ON/OFF
• Built in Output voltage adjustment (for single output, ±10%)
