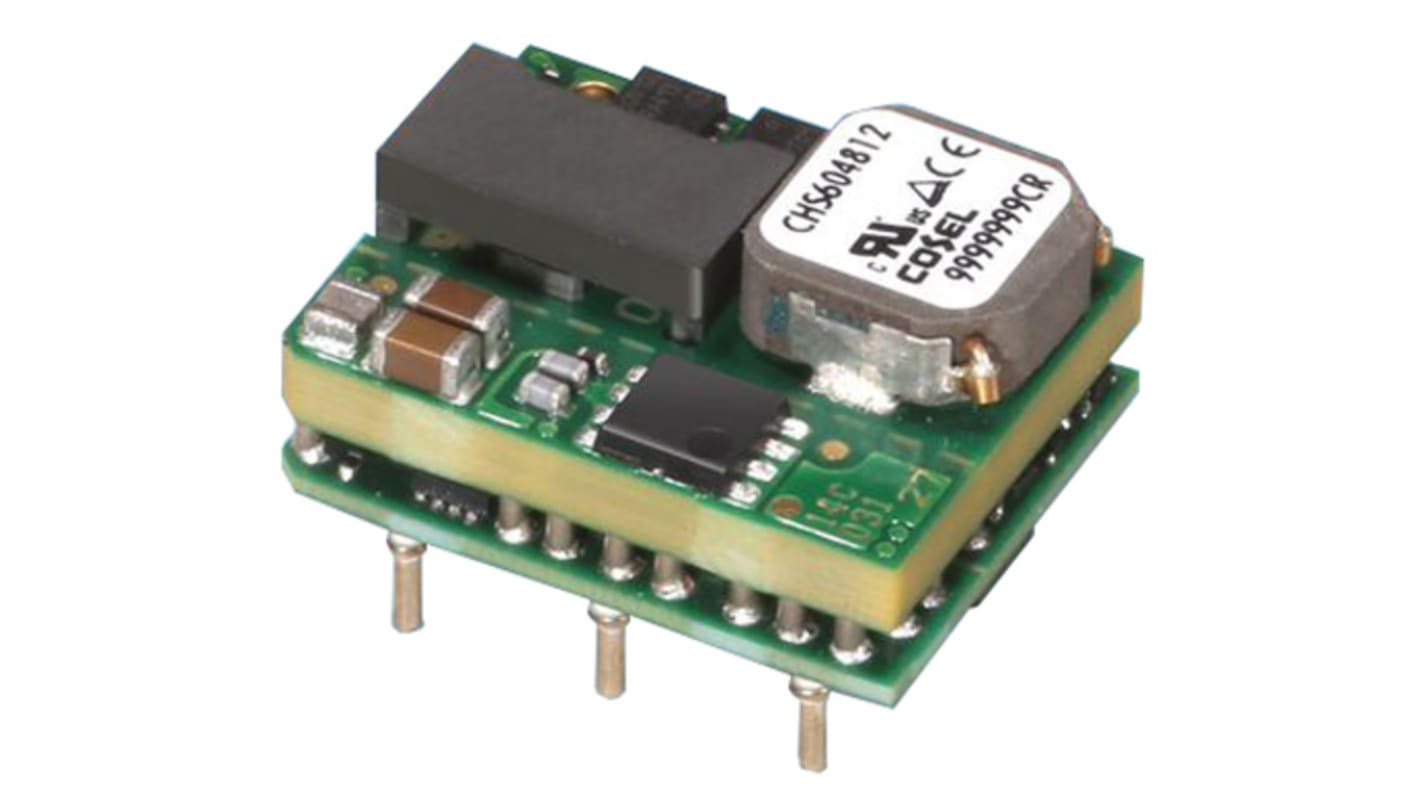

Cosel CHS DC-DC Converter, 5V dc/ 12A Output, 36 → 76 V dc Input, 60W, PCB Mount, +85°C Max Temp -40°C Min Temp
- RS Stock No.:
- 132-5391
- Mfr. Part No.:
- CHS604805
- Brand:
- Cosel
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 132-5391
- Mfr. Part No.:
- CHS604805
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 36 → 76 V dc | |
| Power Rating | 60W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 12A | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | -10/+20% | |
| Package | DIP | |
| Isolation Voltage | 1 kV ac, 500V dc | |
| Length | 23.36mm | |
| Depth | 12.7mm | |
| Width | 19.05mm | |
| Series | CHS | |
| Load Regulation | 10mV | |
| Minimum Temperature | -40°C | |
| Efficiency | 93% | |
| Maximum Temperature | +85°C | |
| Standards Met | CE, cUL (CSA 60950-1), cULus Recognised, EN 60950-1, UL 60950-1 | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage 5V dc | ||
Input Voltage Range 36 → 76 V dc | ||
Power Rating 60W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 12A | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range -10/+20% | ||
Package DIP | ||
Isolation Voltage 1 kV ac, 500V dc | ||
Length 23.36mm | ||
Depth 12.7mm | ||
Width 19.05mm | ||
Series CHS | ||
Load Regulation 10mV | ||
Minimum Temperature -40°C | ||
Efficiency 93% | ||
Maximum Temperature +85°C | ||
Standards Met CE, cUL (CSA 60950-1), cULus Recognised, EN 60950-1, UL 60950-1 | ||
