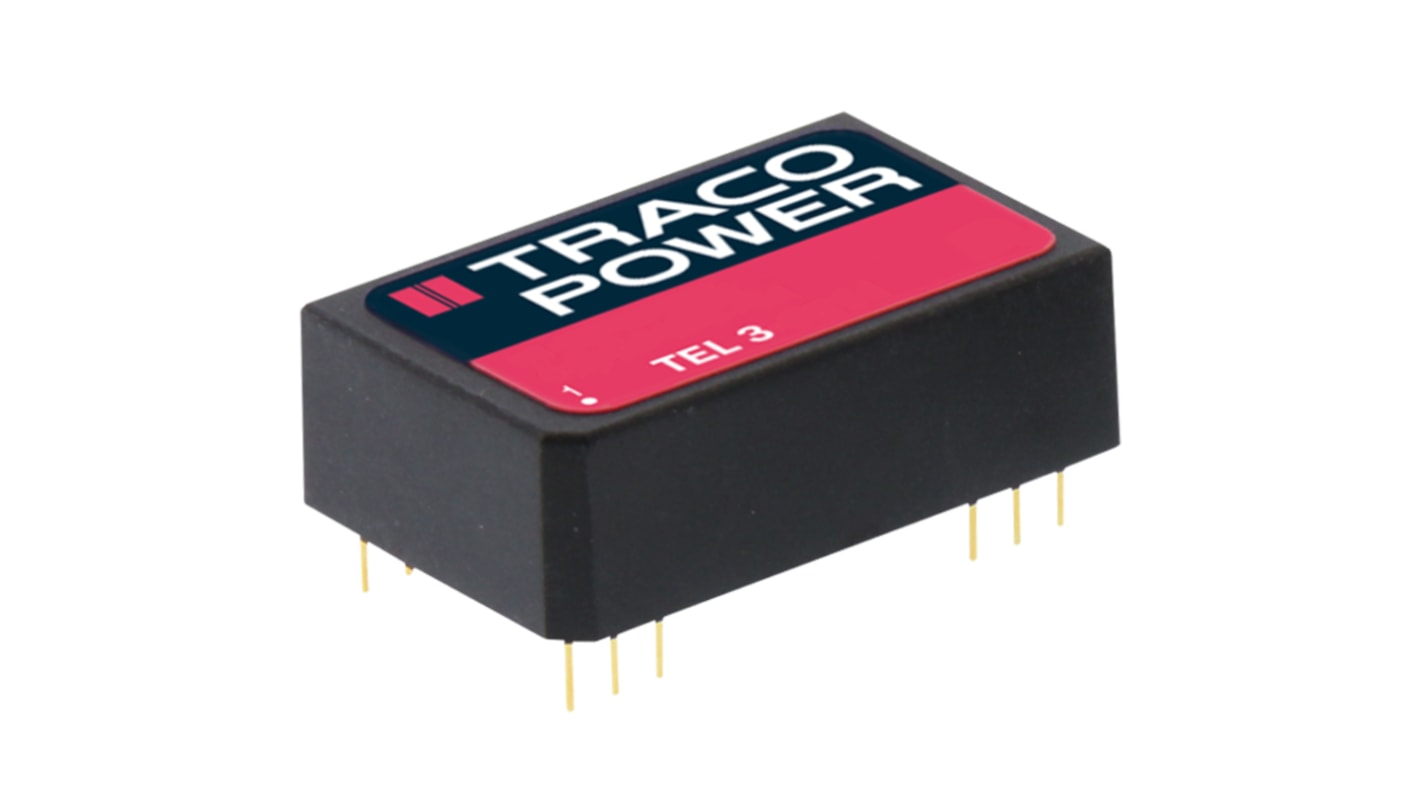

TRACOPOWER TEL 3 DC-DC Converter, 12V dc/ 250mA Output, 18 → 36 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 124-7619
- Mfr. Part No.:
- TEL 3-2412
- Brand:
- TRACOPOWER
1 In stock - FREE next working day delivery available
Added
Price 1 Tube of 10
£116.82
(exc. VAT)
£140.18
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
1 - 4 | £116.82 | £11.682 |
5 - 9 | £113.32 | £11.332 |
10 - 24 | £109.81 | £10.981 |
25 - 49 | £105.14 | £10.514 |
50 + | £100.47 | £10.047 |
*price indicative |
- RS Stock No.:
- 124-7619
- Mfr. Part No.:
- TEL 3-2412
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEL-3 Series
The Traco Power TEL-3 series is a range of isolated, 3 Watt, DC-DC converters in a DIP-24 package. With their high efficiency these regulated converters allows operation temperature up to 71°C at full load and low output noise. The TEL-3 series feature wide input range and tightly regulated output voltage, which qualifies these DC-DC converters for many cost critical applications in industrial and consumer electronics.
Wide 2:1 and 3:1 input range
High efficiency up to 81%
DIL-24 plastic package
Indefinite short-circuit protection
I/O isolation 1500 VDC
Available with industry standard pinout (NP)
Operating temperature range –40°C to +85°C
High efficiency up to 81%
DIL-24 plastic package
Indefinite short-circuit protection
I/O isolation 1500 VDC
Available with industry standard pinout (NP)
Operating temperature range –40°C to +85°C
Standards
UL 60950-1, IEC/EN 60950-1
Approvals
UL, cUL, EN, IEC, CSA File No. 226037
Specifications
Attribute | Value |
---|---|
Output Voltage | 12V dc |
Input Voltage Range | 18 → 36 V dc |
Power Rating | 3W |
Input Voltage Nominal | 24 V dc |
Output Current | 250mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | DIP 24 |
Isolation Voltage | 1.5kV dc |
Length | 32mm |
Width | 20mm |
Depth | 10.2mm |
Series | TEL 3 |
Load Regulation | ±0.5% |
Minimum Temperature | -40°C |
Efficiency | 81% |
Maximum Temperature | +85°C |
