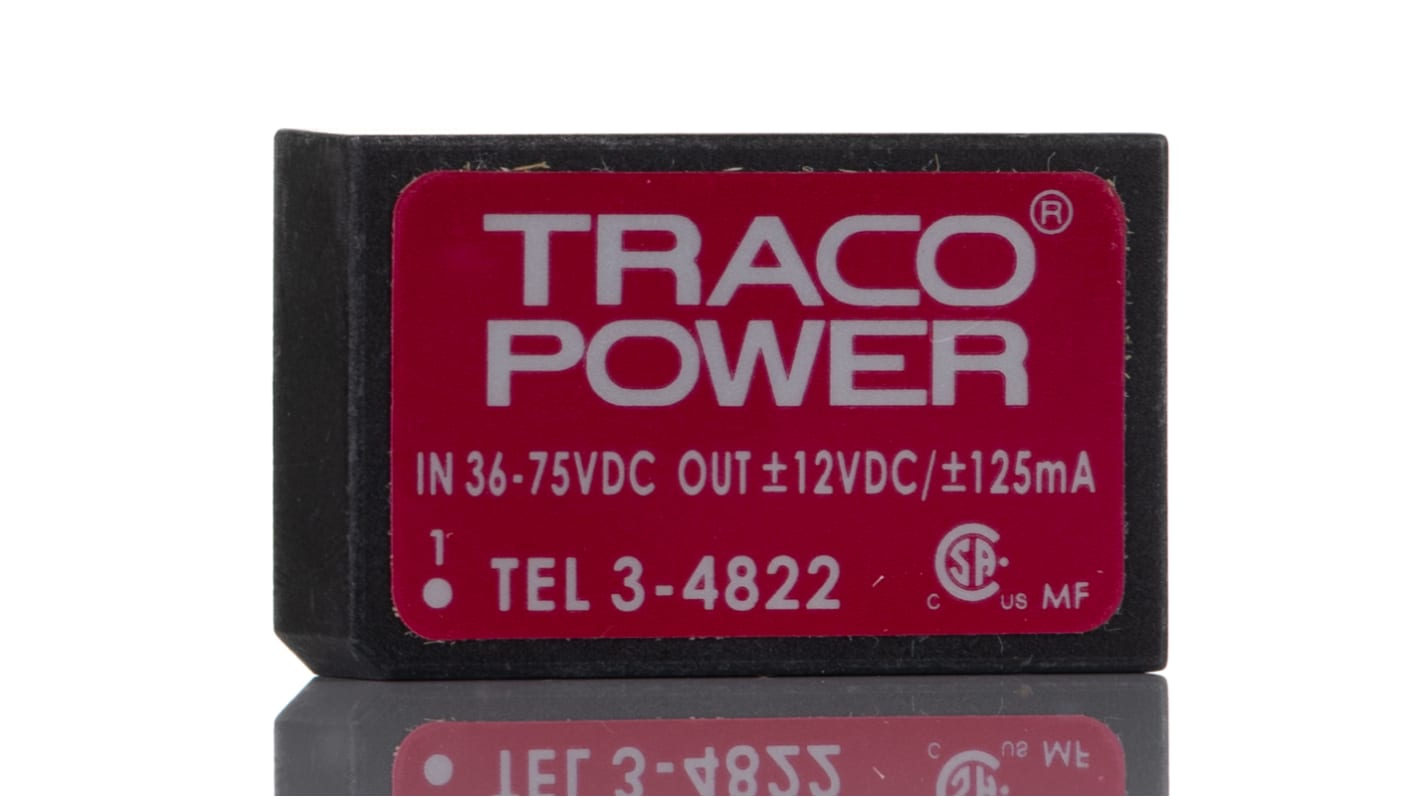

TRACOPOWER TEL 3 DC-DC Converter, ±12V dc/ ±125mA Output, 36 → 75 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 396-5269
- Mfr. Part No.:
- TEL 3-4822
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£10.14
(exc. VAT)
£12.17
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 9 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £10.14 |
*price indicative
- RS Stock No.:
- 396-5269
- Mfr. Part No.:
- TEL 3-4822
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | ±12V dc | |
Input Voltage Range | 36 → 75 V dc | |
Power Rating | 3W | |
Input Voltage Nominal | 48 V dc | |
Output Current | ±125mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 2 | |
Package | DIP 24 | |
Isolation Voltage | 1.5kV dc | |
Length | 32mm | |
Depth | 10.2mm | |
Width | 20mm | |
Series | TEL 3 | |
Load Regulation | ±1% | |
Standards Met | UL 60950-1 | |
Efficiency | 81% | |
Minimum Temperature | -40°C | |
Maximum Temperature | +85°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±12V dc | ||
Input Voltage Range 36 → 75 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 48 V dc | ||
Output Current ±125mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP 24 | ||
Isolation Voltage 1.5kV dc | ||
Length 32mm | ||
Depth 10.2mm | ||
Width 20mm | ||
Series TEL 3 | ||
Load Regulation ±1% | ||
Standards Met UL 60950-1 | ||
Efficiency 81% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, DIP-24 Package, 81% Efficiency - TEL 3 Series - TEL 3-4822
On the hunt for a PSU to tackle a broad range of input voltages? Try this DC-DC converter from Traco Power. It takes a voltage anywhere between 36 and 75V DC and steps it down to a stable supply of ±12V DC that's ideal for powering battery-run appliances. Thanks to a tight voltage set accuracy of ±1% and comprehensive line and load regulation of 0.5%, you get control of input and outputs. An efficiency rating of 81% means the unit produces little waste energy in the form of heat. This helps it to run smoothly in settings where operating temperatures reach extremes down to -40°C and up to +85°C.
Features & Benefits
• Low ripple and noise of less than 60 mVpk-pk means you get minimal disruption from EMI
• Mean time between failures of 1 million hours means you can expect this converter to last
• Flame-retardant casing won't contribute to the spread of flames in a fire
• Mean time between failures of 1 million hours means you can expect this converter to last
• Flame-retardant casing won't contribute to the spread of flames in a fire
Applications
• Home appliances
• Smart lighting
• Photovoltaics
• Smart lighting
• Photovoltaics
What electrical protections does this converter offer?
This converter comes with continuous short-circuit protection and is isolated to 1.5kV DC. This means you can trust it to keep you and your equipment safe from common current faults, as well as voltage surges or spikes.
Approvals
UL Recognised; EN60950; UL1950
