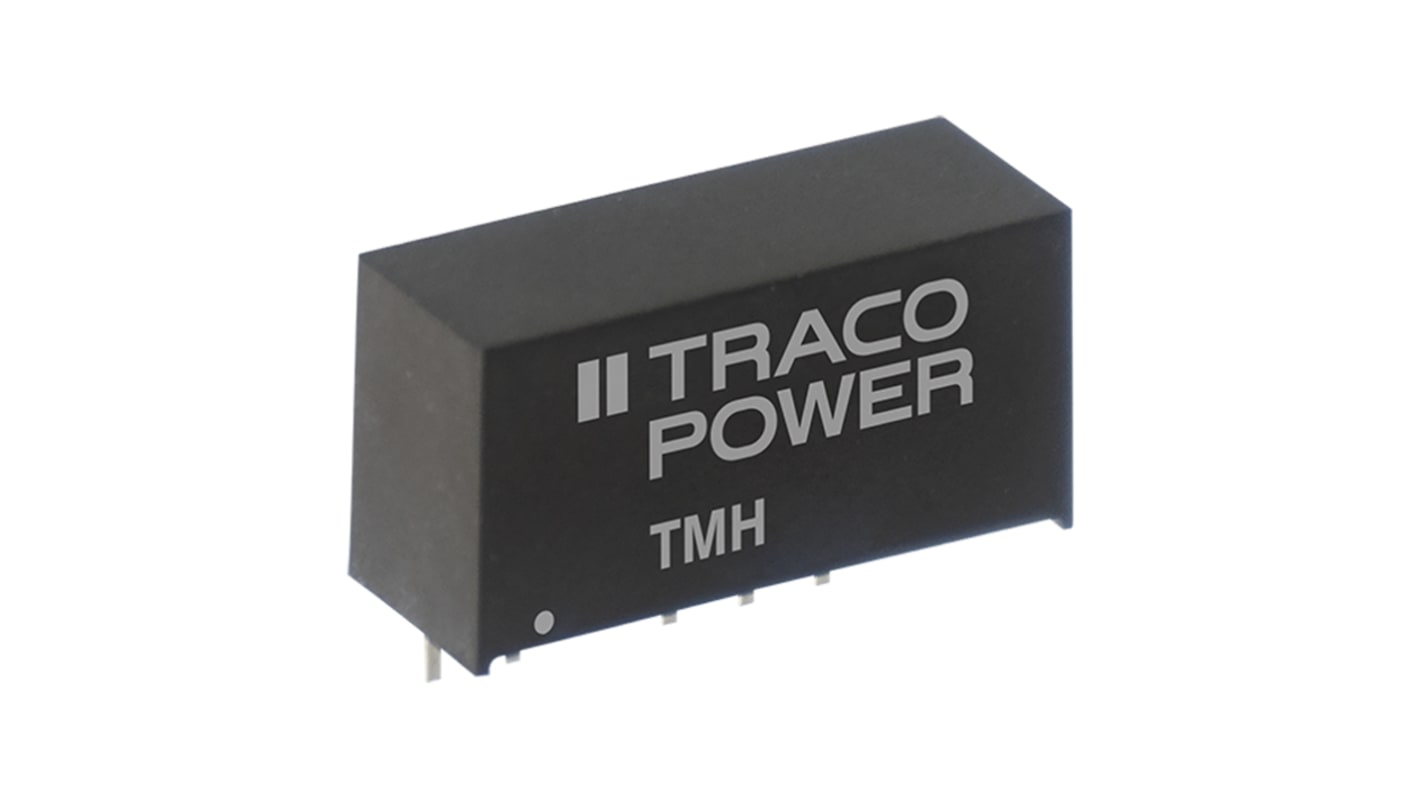

TRACOPOWER TMH DC-DC Converter, 5V dc/ 400mA Output, 4.5 → 5.5 V dc Input, 2W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 124-7613
- Mfr. Part No.:
- TMH 0505S
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£57.20
(exc. VAT)
£68.64
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 3 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £57.20 | £5.72 |
| 5 - 9 | £55.48 | £5.548 |
| 10 - 24 | £53.77 | £5.377 |
| 25 - 49 | £51.47 | £5.147 |
| 50 + | £49.18 | £4.918 |
*price indicative
- RS Stock No.:
- 124-7613
- Mfr. Part No.:
- TMH 0505S
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 400mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Isolation Voltage | 1kV dc | |
| Depth | 10.2mm | |
| Length | 19.5mm | |
| Series | TMH | |
| Load Regulation | ±10% | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 76% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 400mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP | ||
Isolation Voltage 1kV dc | ||
Depth 10.2mm | ||
Length 19.5mm | ||
Series TMH | ||
Load Regulation ±10% | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Efficiency 76% | ||
- COO (Country of Origin):
- TW
TRACOPOWER TMH Series DC-DC Converter, 4.5 to 5.5V DC Input Voltage Range, 2W Power Rating - TMH 0505S
This DC-DC converter effectively transforms an input voltage of 4.5V to 5.5V into a stable output of 5V DC, providing a dependable power solution. Its compact design is suitable for applications with limited space, while the isolated feature enhances operational safety. It operates within a wide temperature range, making it appropriate for industries that require consistent performance in challenging environments.
Features & Benefits
• Isolation voltage of 1kV DC for improved safety
• Designed for PCB mounting for easy integration
• Operates in temperature extremes from -40 to +85°C
• Load regulation of ±10% for consistent output
• Compact design occupying only 1.5cm² of board space
• Designed for PCB mounting for easy integration
• Operates in temperature extremes from -40 to +85°C
• Load regulation of ±10% for consistent output
• Compact design occupying only 1.5cm² of board space
Applications
• Power distribution in automation systems
• Portable electronic devices requiring minimal space
• Telecommunications equipment demanding robust reliability
• Medical devices where space and efficiency are crucial
• Portable electronic devices requiring minimal space
• Telecommunications equipment demanding robust reliability
• Medical devices where space and efficiency are crucial
What input voltage range is suitable for operation?
The converter operates effectively within an input voltage range of 4.5V to 5.5V DC.
How can it bet be mounted in my application?
It is designed for PCB mounting, facilitating straightforward installation on circuit boards.
Is there a need to consider load requirements?
Yes, maintaining a minimum load of 2% of the maximum output current is important for optimal performance.
What are the consequences of exceeding maximum temperature limits?
Exceeding the maximum temperature of +85°C can result in decreased performance or potential damage.
What maintenance is required for effective operation?
Routine checks for connections and performance will ensure longevity and reliability without the need for complex maintenance.
