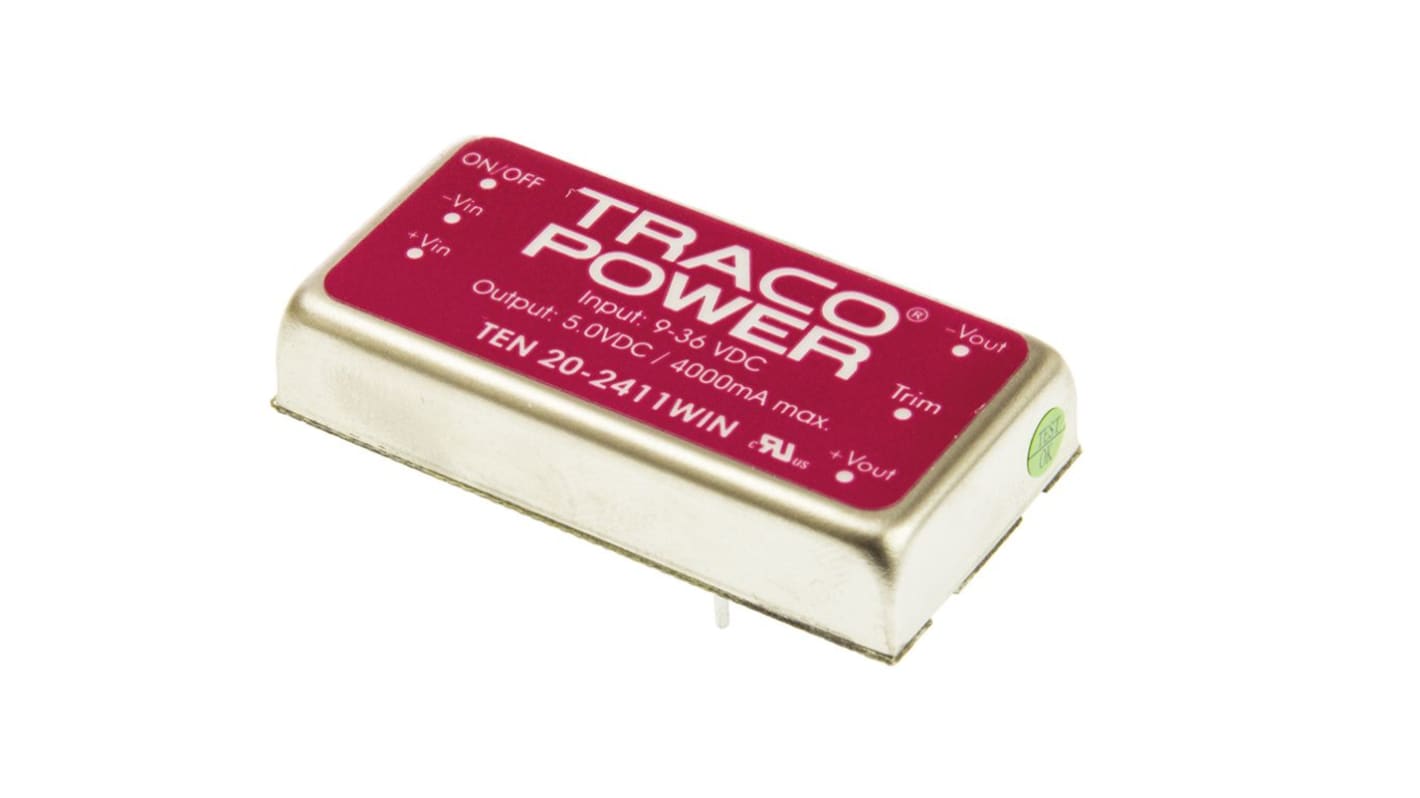

TRACOPOWER TEN 20WIN DC-DC Converter, 5V dc/ 4A Output, 9 → 36 V dc Input, 20W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 124-7581
- Mfr. Part No.:
- TEN 20-2411WIN
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£455.61
(exc. VAT)
£546.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £455.61 | £45.561 |
5 - 9 | £441.94 | £44.194 |
10 - 24 | £428.27 | £42.827 |
25 - 49 | £410.04 | £41.004 |
50 + | £391.83 | £39.183 |
*price indicative
- RS Stock No.:
- 124-7581
- Mfr. Part No.:
- TEN 20-2411WIN
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 5V dc | |
Input Voltage Range | 9 → 36 V dc | |
Power Rating | 20W | |
Input Voltage Nominal | 24 V dc | |
Output Current | 4A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | 2 x 1 in | |
Isolation Voltage | 1.5kV dc | |
Depth | 10.2mm | |
Width | 25.4mm | |
Length | 40.6mm | |
Series | TEN 20WIN | |
Load Regulation | ±0.5% | |
Minimum Temperature | -40°C | |
Maximum Temperature | +85°C | |
Efficiency | 88% | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 20W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 4A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package 2 x 1 in | ||
Isolation Voltage 1.5kV dc | ||
Depth 10.2mm | ||
Width 25.4mm | ||
Length 40.6mm | ||
Series TEN 20WIN | ||
Load Regulation ±0.5% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
Efficiency 88% | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, 1.5kV DC Isolation, 88% Efficiency - TEN 20WIN Series - TEN 20-2411WIN
Need a compact DC-DC converter to squeeze onto a crowded PCB? This 20W option from Traco Power is ideal as it measures just 28 (L) x 24 (W) x 8.5mm (D). It steps down a voltage between 9 and 36VDC to a safe and stable 5V DC that's handy for battery-powered equipment. The product's voltage adjustment lets you tweak the output by ±10% to suit your application. Tight line regulation of 0.2% and load regulation of 0.5% give you control over values. A clever open frame design reduces the bulk of this device by 50%. Fit it effortlessly on a busy PCB using secure through-hole mounting.
Features & Benefits
• 88% efficiency, so it produces very little heat as waste and doesn't need a heatsink or fan to keep cool
• 1.5kV DC isolation means you and your equipment are shielded from voltage surges
• Hermetically sealed, so you're safe to subject it to washdowns
• Continuous short-circuit protection keeps you safe from common current faults
• 1.5kV DC isolation means you and your equipment are shielded from voltage surges
• Hermetically sealed, so you're safe to subject it to washdowns
• Continuous short-circuit protection keeps you safe from common current faults
Applications
• Telecommunications
• Industrial control
• Aerospace engineering
• Industrial control
• Aerospace engineering
How robust is this converter?
It resists vibration, thermal shock and mechanical shock (per MIL-STD-810F). This makes it a great shout for harsh industrial settings and helps it tolerate a broad temperature range from -40°C to +85°C.
