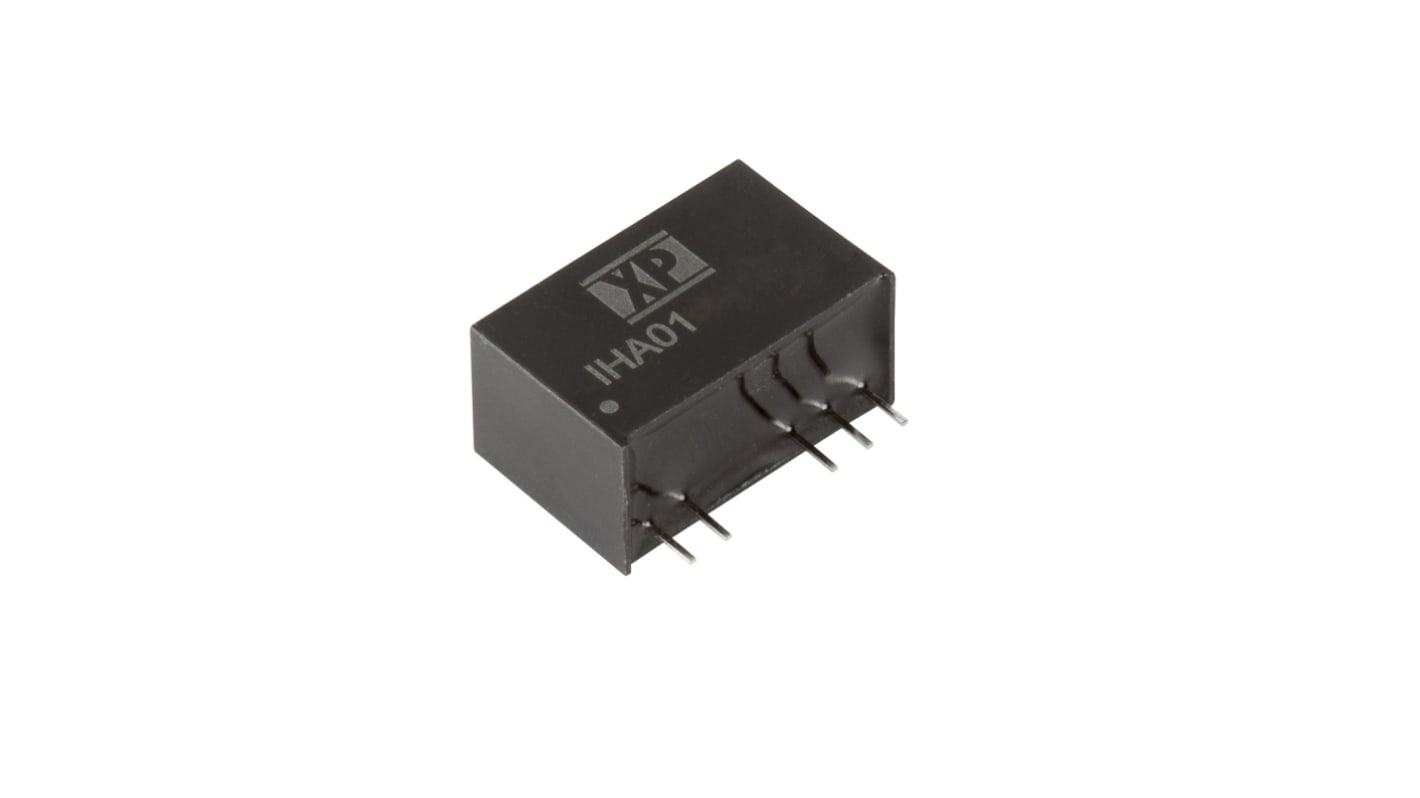

XP Power IHA01 DC-DC Converter, ±5V dc/ ±100mA Output, 8.1 → 9.9 V dc Input, 1W, Through Hole, +85°C Max Temp

RS Stock No.:: 124-4920
Mfr. Part No.:: IHA0109D05
Brand:: XP Power

XP Power IHA01 DC-DC Converter, ±5V dc/ ±100mA Output, 8.1 → 9.9 V dc Input, 1W, Through Hole, +85°C Max Temp

Sorry, we couldn't check our stock levels right now. Please try refreshing the page.

Not available for guaranteed pre 9am/10am delivery

Price Each

£4.10

(exc. VAT)

£4.92

(inc. VAT)

Units	Per unit
1 +	£4.10

RS Stock No.:: 124-4920
Mfr. Part No.:: IHA0109D05
Brand:: XP Power

Datasheet

Attribute	Value
Output Voltage	±5V dc
Input Voltage Range	8.1 → 9.9 V dc
Power Rating	1W
Input Voltage Nominal	9 V dc
Output Current	±100mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Package	SIP 7
Isolation Voltage	6kV dc
Depth	12.5mm
Width	9.8mm
Length	19.5mm
Series	IHA01
Load Regulation	0.1
Maximum Temperature	+85°C
Minimum Temperature	-40°C
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F

XP Power IHA01 DC-DC Converter, ±5V dc/ ±100mA Output, 8.1 → 9.9 V dc Input, 1W, Through Hole, +85°C Max Temp

XP Power Isolated DC-DC Converter - IHA Series
