Recom RS6 DC-DC Converter, 3.3V dc/ 1.3A Output, 4.5 → 9 V dc Input, 6W, Through Hole, +75°C Max Temp -40°C Min
- RS Stock No.:
- 124-4207
- Mfr. Part No.:
- RS6-053.3S
- Brand:
- Recom
3 In stock - FREE next working day delivery available
Price Each
£12.61
(exc. VAT)
£15.13
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £12.61 |
5 - 9 | £12.23 |
10 - 24 | £11.85 |
25 - 49 | £11.47 |
50 + | £11.09 |
- RS Stock No.:
- 124-4207
- Mfr. Part No.:
- RS6-053.3S
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

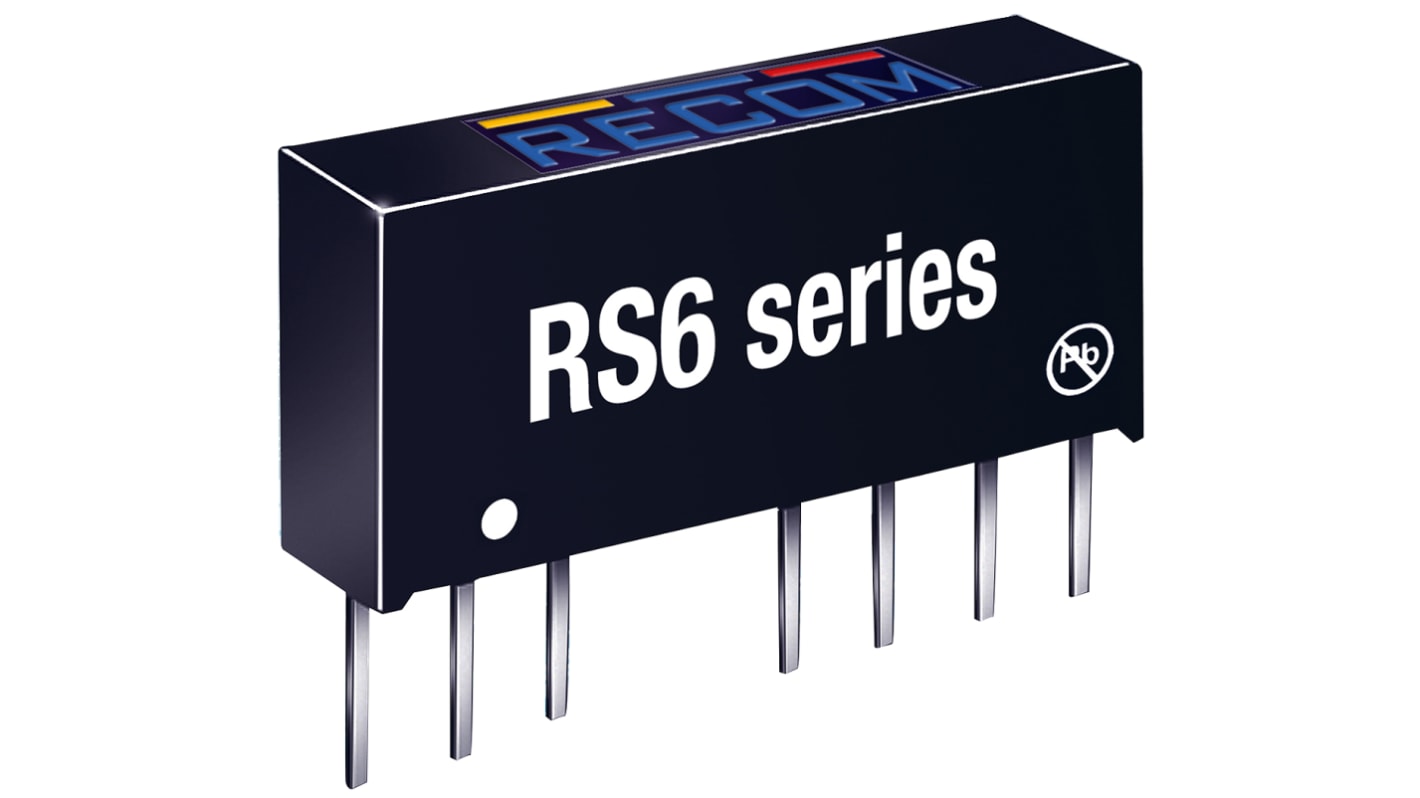

Recom RS6 Series Isolated DC-DC Converter
The RS6 Series offers you high power density wide input voltage range. This converter is ideal for high density power supply designs in demanding industrial applications, test and metering and battery powered applications.
Features and Benefits
High power density
High efficiency
CB report
Ideal for areas with limited installation space
High efficiency
CB report
Ideal for areas with limited installation space
Standards
EN 62368-1 CB, IEC/EN 60950-1
RECOM DC-DC Converter, 200kHz Frequency, Continuous Short-Circuit Protection - RS6 Series - RS6-053.3S
Want a power supply to your PCB-linked parts that won't let you down? This DC-DC converter from RECOM delivers it. With integrated continuous short-circuit and overload protection, the unit ensures electrical faults don't impact your components. It delivers an output of 3.3V from a 5V input signal, so it's your best bet for low-voltage applications. You can manage it remotely, making it a vital piece of the puzzle for applications such as robotics that need timing control.
Features & Benefits
• Isolation voltage of 2kV DC to handle high inrushes without suffering damage
• Mean time between failures of 1,776,000 hours for reliable long-term performance
• Through-hole mounting method achieves a firm hold on the circuit board
• Plastic housing withstands impact and abrasion, making it useful in harsh environments
• Mean time between failures of 1,776,000 hours for reliable long-term performance
• Through-hole mounting method achieves a firm hold on the circuit board
• Plastic housing withstands impact and abrasion, making it useful in harsh environments
Applications
• Consumer electronics
• Telecommunication industry
• Switchgear systems
• Telecommunication industry
• Switchgear systems
Is this DC-DC converter flame-retardant?
Yes, this unit is self-extinguishing and stops burning in 10 seconds or less in the event of a fire. It's a safe choice for use in volatile settings.
How efficient is this DC-DC converter?
This piece of kit is 83% efficient, which means it loses a negligible amount of energy to heat during operation.
Recom Isolated DC/DC Converter
Specifications
Attribute | Value |
---|---|
Output Voltage | 3.3V dc |
Input Voltage Range | 4.5 → 9 V dc |
Power Rating | 6W |
Input Voltage Nominal | 5 V dc |
Output Current | 1.3A |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Output Voltage Adjustment Range | -8 → +10% |
Package | SIP |
Isolation Voltage | 1.6kV dc |
Length | 21.8mm |
Depth | 11.1mm |
Width | 9.2mm |
Series | RS6 |
Load Regulation | ±1% |
Standards Met | EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IECEEE CB Scheme |
Minimum Temperature | -40°C |
Efficiency | 83% |
Maximum Temperature | +75°C |
