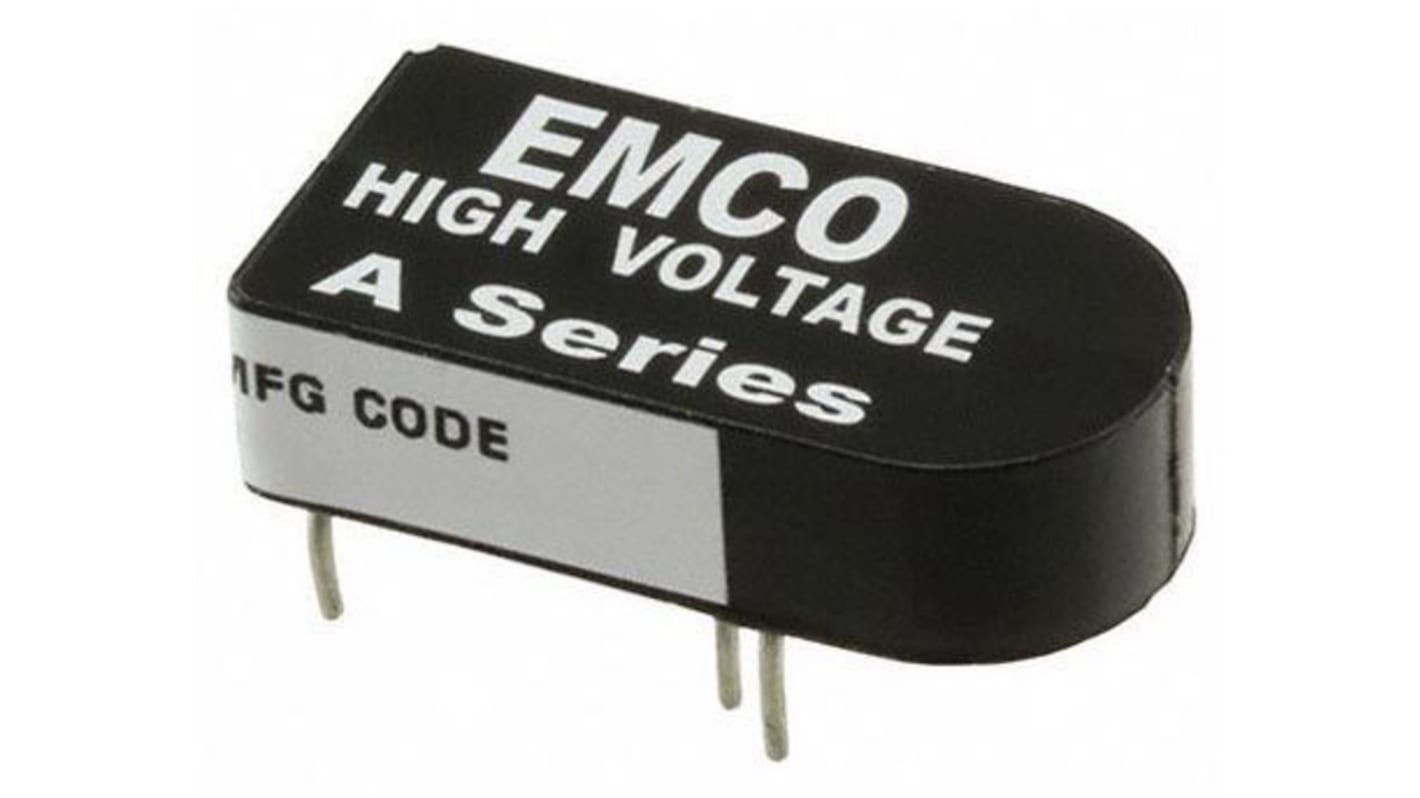

XP Power A DC-DC Converter, 1.2kV dc/ 830μA Output, 0 → 12 V dc Input, 1W, Through Hole, +75°C Max Temp -25°C

View all DC-DC Converters
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
123-8302
Mfr. Part No.:
A12P-12
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

1.2kV dc

Input Voltage Range

0 → 12 V dc

Power Rating

1W

Input Voltage Nominal

12 V dc

Output Current

830µA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

1

Output Voltage Adjustment Range

±10%

Isolation Voltage

500V

Width

11.43mm

Length

23.37mm

Series

A

Maximum Temperature

+75°C

Minimum Temperature

-25°C

COO (Country of Origin):
US

XP Power Isolated DC to High Voltage DC Converters A Series


The A Series power isolated DC to high voltage DC converters are ultra miniature. These converters are ideal for applications where minimal size and weight are required.

Features and Benefits


Input/Output proportional
Quasi-sinewave Oscillator
Control Pin
Current - Low leakage
Low Output/Input Capacitance
Galvanic Input to Output isolation
1 minute minimum short circuit protection
No minimum load required 2
External componenents not required

Applications


Avalanche photodiodes
Capacitor charging
Electrophoresis
Photomultiplier tubes
Piezo Devices
Mass spectrometry
Sustaining Ion pumps

Standards

UL, RoHS


Isolated DC to High Voltage DC Converters
