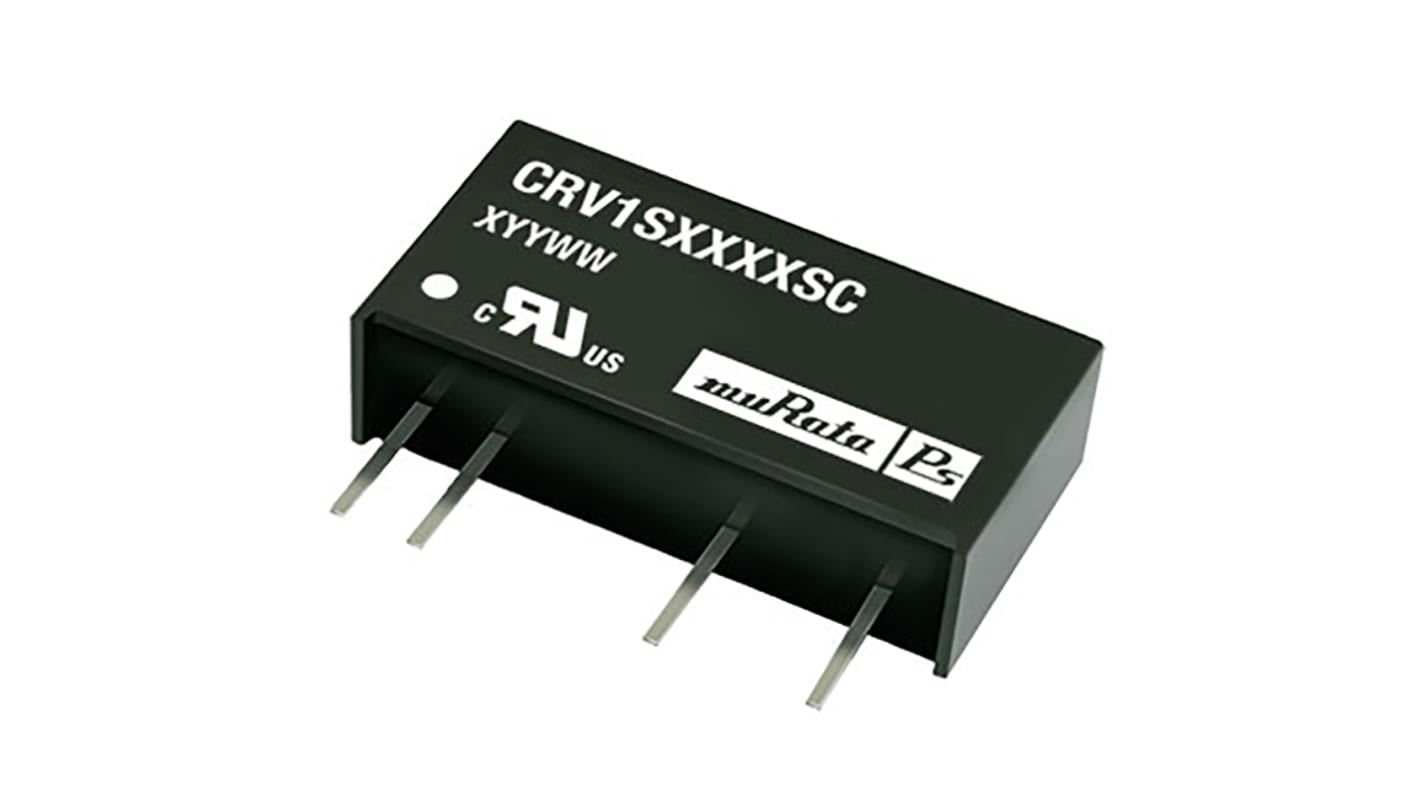

Murata Power Solutions CRV1 DC-DC Converter, 15V dc/ 67mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole,
- RS Stock No.:
- 123-4619
- Mfr. Part No.:
- CRV1S1215SC
- Brand:
- Murata Power Solutions
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternatives
This product is not currently available. Here are our alternative recommendations.
Each
£8.08
(exc. VAT)
£9.70
(inc. VAT)
Each
£4.73
(exc. VAT)
£5.68
(inc. VAT)
- RS Stock No.:
- 123-4619
- Mfr. Part No.:
- CRV1S1215SC
- Brand:
- Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 10.8 → 13.2 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 67mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP 4 | |
| Isolation Voltage | 3kV dc | |
| Length | 19.5mm | |
| Depth | 10mm | |
| Width | 6mm | |
| Series | CRV1 | |
| Load Regulation | Maximum of 5% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
| Efficiency | 83% | |
| Standards Met | UL 94 V-0 | |
Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 15V dc | ||
Input Voltage Range 10.8 → 13.2 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 67mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 4 | ||
Isolation Voltage 3kV dc | ||
Length 19.5mm | ||
Depth 10mm | ||
Width 6mm | ||
Series CRV1 | ||
Load Regulation Maximum of 5% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
Efficiency 83% | ||
Standards Met UL 94 V-0 | ||
