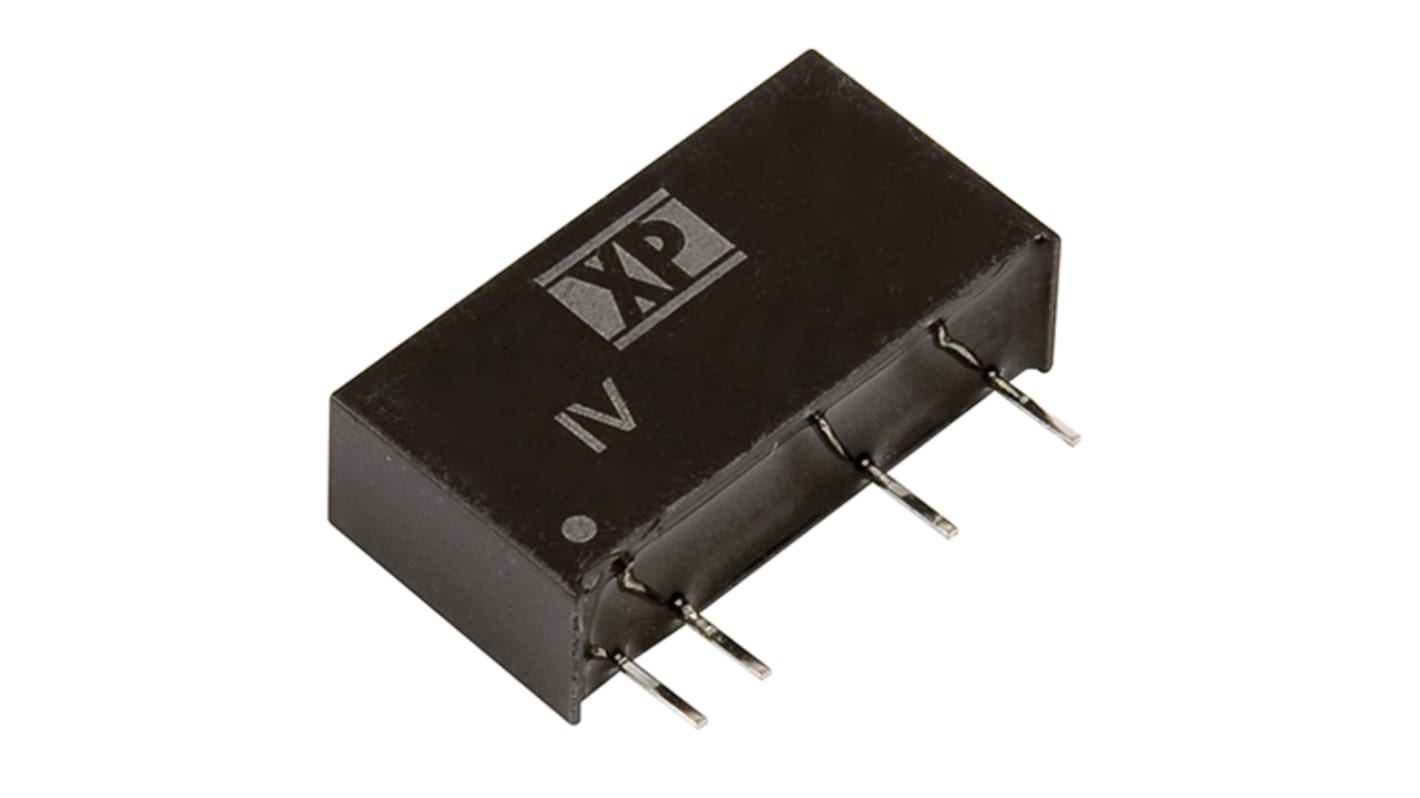

XP Power IV DC-DC Converter, 3.3V dc/ 300mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 122-6133
- Mfr. Part No.:
- IV2403SA
- Brand:
- XP Power
Subtotal (1 unit)*
£6.81
(exc. VAT)
£8.17
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 69 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.81 |
*price indicative
- RS Stock No.:
- 122-6133
- Mfr. Part No.:
- IV2403SA
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 3.3V dc | |
| Input Voltage Range | 21.6 → 26.4 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 300mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Isolation Voltage | 3kV dc | |
| Length | 19.5mm | |
| Width | 6mm | |
| Depth | 9.5mm | |
| Series | IV | |
| Load Regulation | ±20% | |
| Efficiency | 75% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 3.3V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 300mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP | ||
Isolation Voltage 3kV dc | ||
Length 19.5mm | ||
Width 6mm | ||
Depth 9.5mm | ||
Series IV | ||
Load Regulation ±20% | ||
Efficiency 75% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
