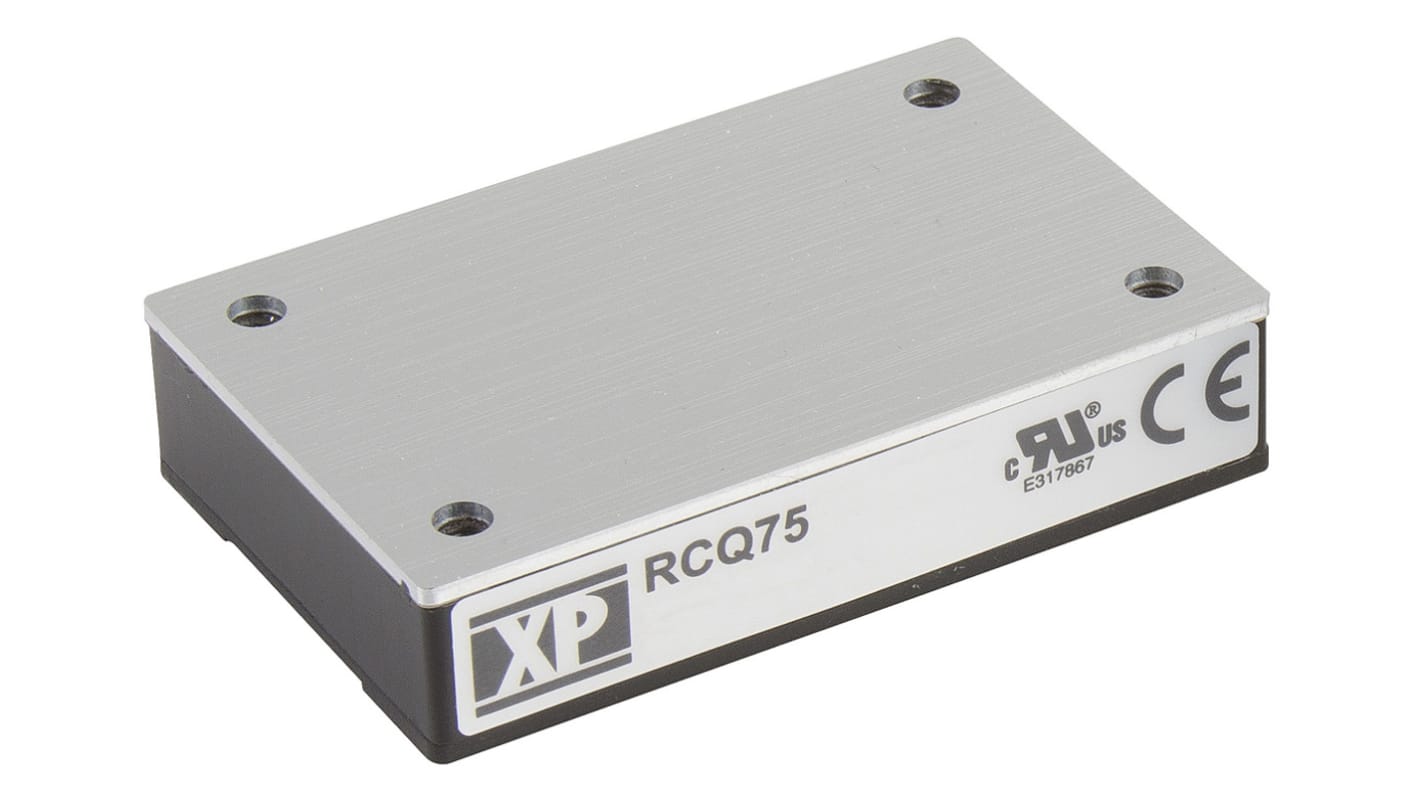

XP Power RCQ75 DC-DC Converter, 12V dc/ 6.25A Output, 43 → 101 V dc Input, 75W, Through Hole, +105°C Max Temp
- RS Stock No.:
- 122-4535
- Mfr. Part No.:
- RCQ7572S12
- Brand:
- XP Power
Subtotal (1 unit)*
£86.82
(exc. VAT)
£104.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 999,999,990 unit(s) shipping from 01 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £86.82 |
*price indicative
- RS Stock No.:
- 122-4535
- Mfr. Part No.:
- RCQ7572S12
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 43 → 101 V dc | |
| Power Rating | 75W | |
| Input Voltage Nominal | 72 V dc | |
| Output Current | 6.25A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | Quarter Brick | |
| Isolation Voltage | 3kV ac | |
| Length | 57.9mm | |
| Depth | 12.5mm | |
| Width | 36.8mm | |
| Railway Approved | Yes | |
| Series | RCQ75 | |
| Load Regulation | ±0.3% | |
| Standards Met | CE Certified, cULus Recognized, EMC EN50121-3-2, EN 45545-2, EN50121-3-2, EN50155, EN55022, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC 60950-1, IEC/EN 60068-2-1, IEC/EN 60068-2-2, IEC/EN 60068-2-30, IEC/EN 61373, IEC60571, MIL-HDBK-217F, UL/cUL60950-1 | |
| Maximum Temperature | +105°C | |
| Minimum Temperature | -40°C | |
| Medical Approved | No | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 12V dc | ||
Input Voltage Range 43 → 101 V dc | ||
Power Rating 75W | ||
Input Voltage Nominal 72 V dc | ||
Output Current 6.25A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package Quarter Brick | ||
Isolation Voltage 3kV ac | ||
Length 57.9mm | ||
Depth 12.5mm | ||
Width 36.8mm | ||
Railway Approved Yes | ||
Series RCQ75 | ||
Load Regulation ±0.3% | ||
Standards Met CE Certified, cULus Recognized, EMC EN50121-3-2, EN 45545-2, EN50121-3-2, EN50155, EN55022, EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC 60950-1, IEC/EN 60068-2-1, IEC/EN 60068-2-2, IEC/EN 60068-2-30, IEC/EN 61373, IEC60571, MIL-HDBK-217F, UL/cUL60950-1 | ||
Maximum Temperature +105°C | ||
Minimum Temperature -40°C | ||
Medical Approved No | ||
