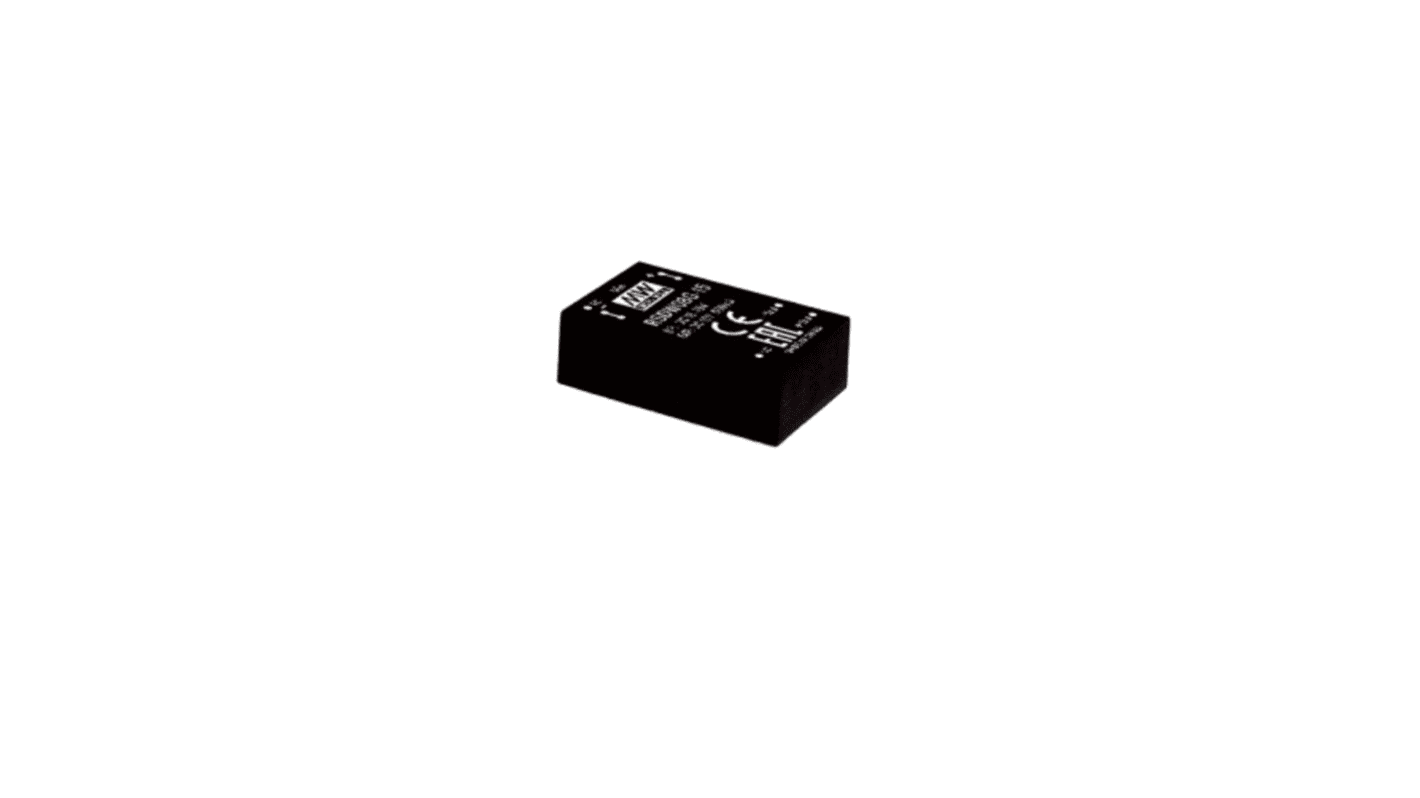

MEAN WELL RSDW08 DC-DC Converter, 5V dc/ 1.6A Output, 9 → 36 V dc Input, 8W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 632-223
- Mfr. Part No.:
- RSDW08F-05
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£13.50
(exc. VAT)
£16.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.50 |
*price indicative
- RS Stock No.:
- 632-223
- Mfr. Part No.:
- RSDW08F-05
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 8W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 1.6A | |
| Mounting Type | Through Hole | |
| Series | RSDW08 | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 5V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 8W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 1.6A | ||
Mounting Type Through Hole | ||
Series RSDW08 | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- CN
The MEANWELL 8W module type DC-DC reliable railway converter with DIP24 package. It features international standard pins, a high efficiency up to 86%, compliance with EN50155 railway standard, continuous-mode short circuit protection, etc. The models account for different input voltage 9 to 36V and 18 to 75V 4:1 wide input range, It suitable for railway, trams, buses and also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.
No minimum load required
Full encapsulated
Full encapsulated
