MEAN WELL GD2 DC/DC Converter, 18V dc/ 90 mA, 24V dc Input, 24V dc Input 24 W, Surface, 90 °C Max Temp 40 °C Min Temp,

View all DC-DC Converters

Subtotal (1 unit)*

£7.98

(exc. VAT)

£9.58

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 1 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£7.98

*price indicative

RS Stock No.:
624-569
Mfr. Part No.:
GD2-241809
Brand:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Product Type

DC/DC Converter

Output Voltage 1

18V dc

Maximum Input Voltage

24V dc

Minimum Input Voltage

24V dc

Output Current 1

90mA

Output Current 2

100mA

Output Voltage 2

-3V

Mount Type

Surface

Number of Outputs

2

MTBF

13980kH

Ripple and Noise

50mV Pk-Pk

Number of Pins

5

Isolation Voltage

6.2kV

Maximum Output Power

24W

Package Type

SIP

Length

19.5mm

Series

GD2

Standards/Approvals

UL6681, EAC TP TC 00011

Weight

4g

Width

9.8mm

Efficiency

82%

Maximum Operating Temperature

90°C

Minimum Operating Temperature

40°C

COO (Country of Origin):
TW

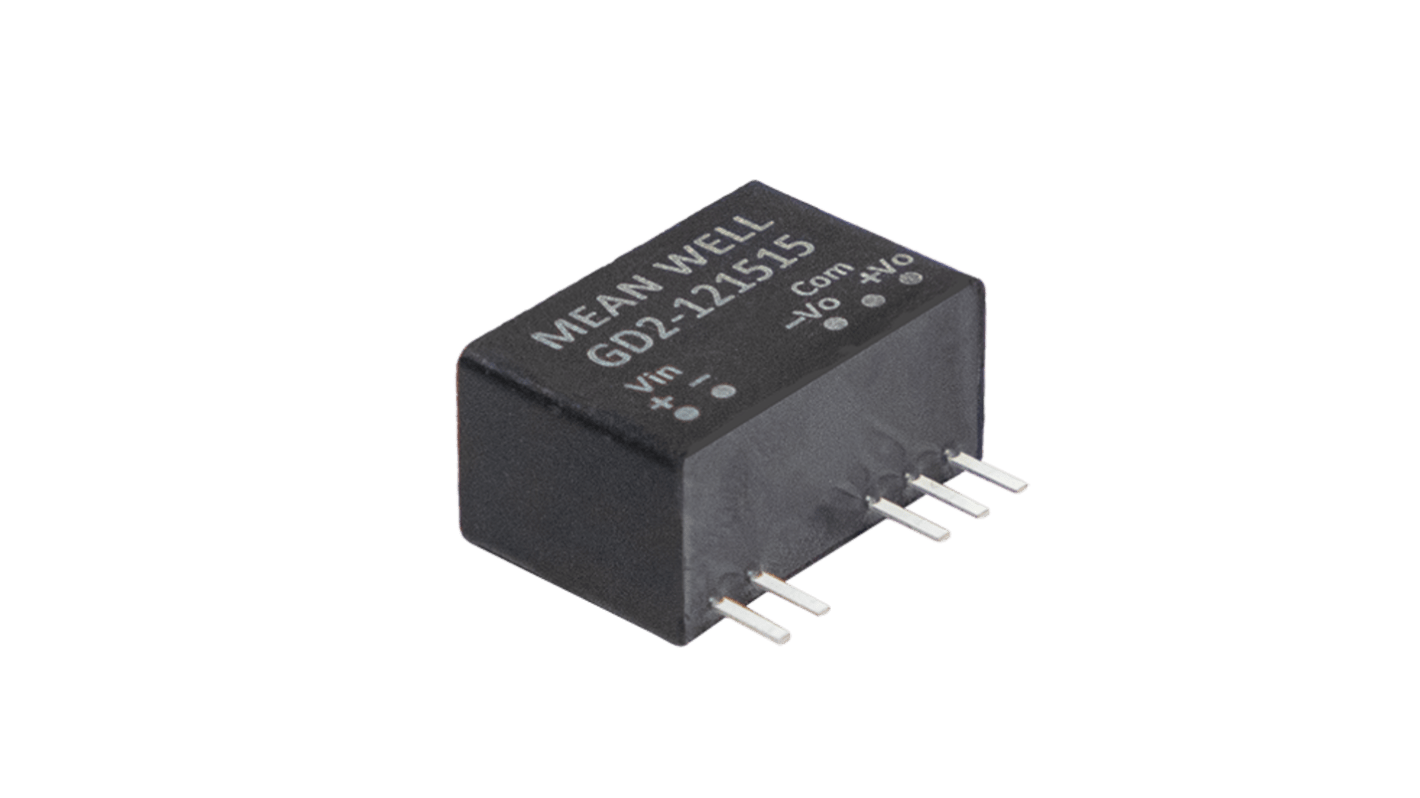

The MEANWELL 2W isolated and unregulated module-type DC-DC converter comes in a compact SIP7 package and features international standard pins. It supports various input voltages and offers a range of positive and negative output voltage options, making it suitable for applications requiring ultra-low leakage current, industrial control, telecommunications, motor drivers, solar inverters, and distributed power architecture.

Bipolar asymmetric unregulated output

Low coupling isolation capacitance Cio

Protection against short circuit continuous

Low cost

3 years warranty
